Summary of Contents for IRONEDGE MH-040V1

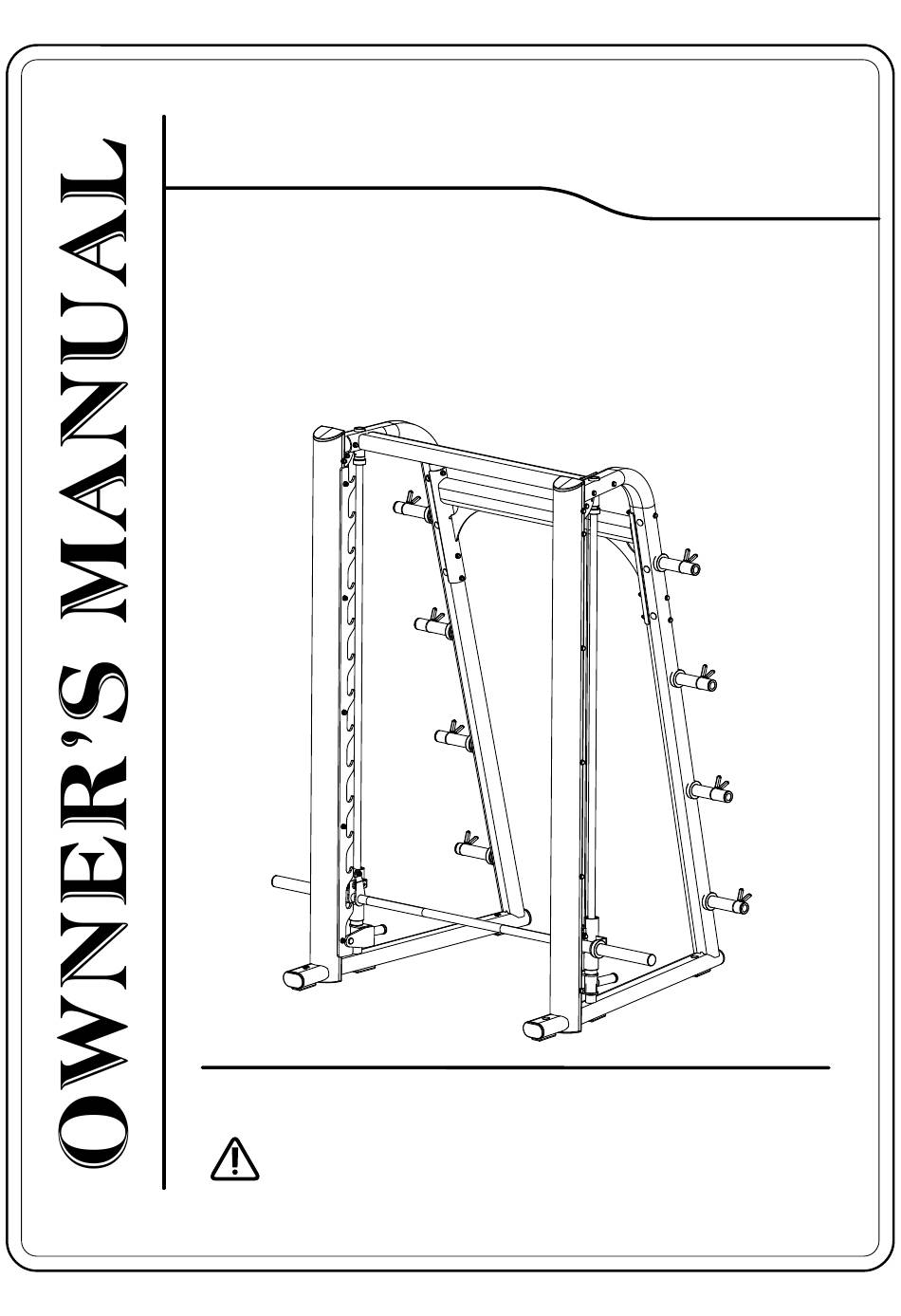

- Page 1 MH-040V1 CAUTION: Read all precautions and instructions before using this equipment. Save this manual for future reference.
- Page 2 Assembly Instructions Before Your Begin This exercise equipment is built for optimum safety. Be sure to read the entire manual before you assemble or operate your equipment. Please note the following safety precautions: 1. Keep children and pets away from the equipment at all times. Do not leave children unattended in the same room with the equipment.
- Page 3 INFORMATION H10-5 ● We recommend you have someone H10-32 assist you in lifting and assembling your gym. ● Follow these steps carefully and it H10-33 will make it easier to assemble your gym. NOTE Tighten the six back bolts(H10-28) at first , and then tighten the four top bolts(H10-28).
- Page 4 PARTS LIST PART# DESCRIPTION PART# DESCRIPTION LEFT MAIN FRAME H10-4 HEX HEAD SCREW M10X20 RIGHT MAIN FRAME H10-5 HEX HEAD SCREW M10X25 TOP CROSSBAR H10-10 HEX HEAD SCREW M10X50 BACK CROSSBAR HEX HEAD SCREW M10X140 H10-28 ROD CARRIAGE H10-32 HEX HEAD SCREW M10X160 H10-33 EX HEAD SCREW M10X165 CARRIAGE LEFT...
