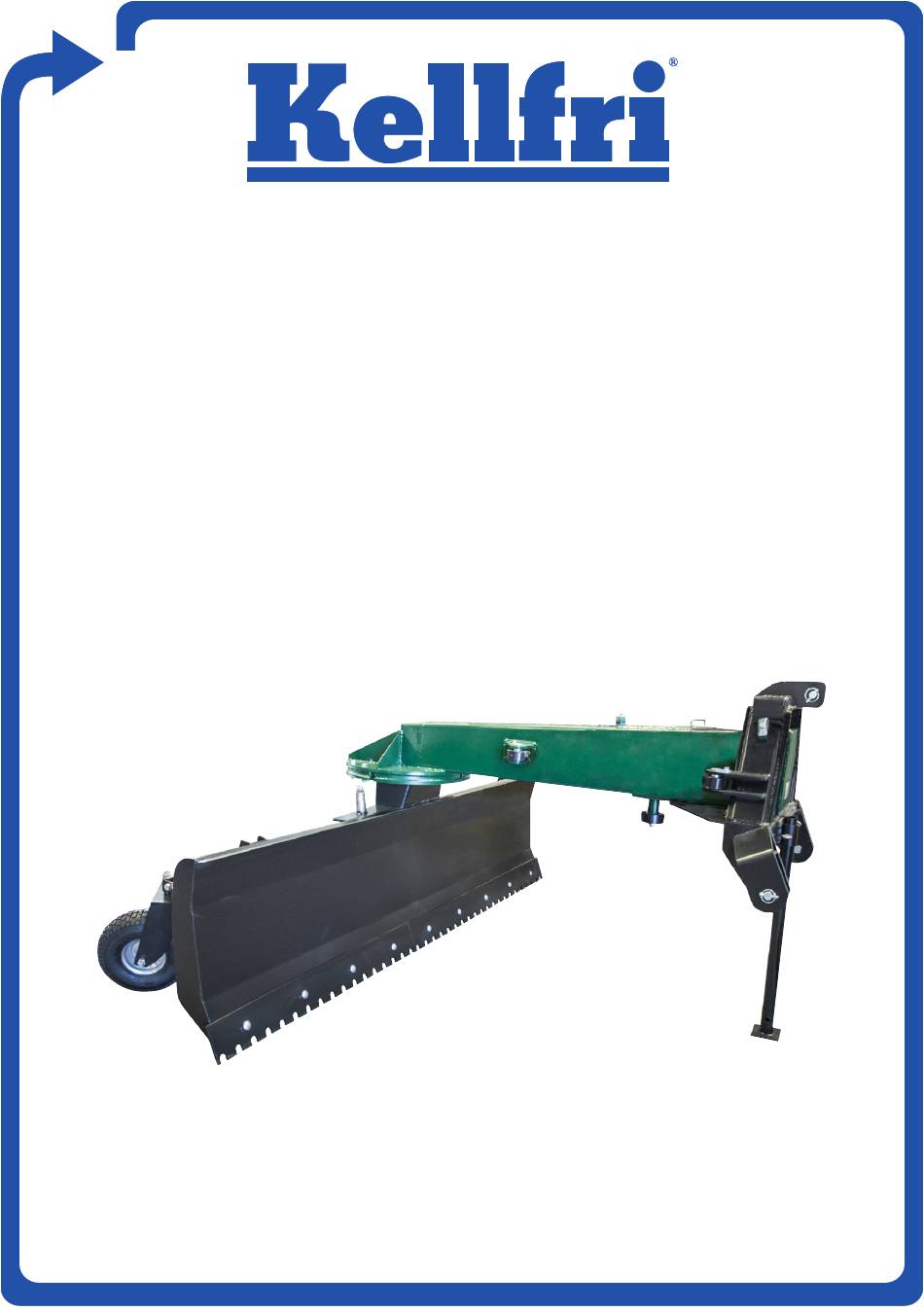

- Page 1 37-27070SHCC DOZER BLADE PLEASE READ ALL INSTRUCTIONS BEFORE USING THE PRODUCT !!! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Product Information
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information, instruction manual and common sense, you will get many years of enjoyable use of the prod- uct. Kellfri’s tools and machines are aimed for farmers with high demands on functionality. -
Page 3: Product Safety
The general safety instruction is also available from Kellfris website: www.kellfri.co.uk Do not use this equipment if you are feeling sick, tired or in influence of alcohol. Nor if you are under the influence of strong medications or drugs, suffering from strong depression or severe mental illness. -
Page 4: Personal Protective Equipment
PERSONAL PROTECTIVE EQUIPMENT Wear suitable clothing and footwear. Do not wear loose clothing or jewelry when working with the equipment. Remember to put up long hair when working with equipment that ro- tates. Use protective gloves as there is a risk of burns if any hot surfaces are touched such as exhaust pipes, and avoid getting oil and petrol on skin. -
Page 5: Operation
Learn and remember the correct working method. Beginners should always keep a low speed, use extreme caution before routine and product knowledge is achieved. The user/customer is responsible to handle the situation correctly. The product should not be taken into use unless it can be done in a safe way for the user. -
Page 6: Transportation And Storage
• Lubricate all lubrication points regularly. For spare parts: Contact Kellfri Service To avoid mechanical damage to the blade, always have in mind that when driving with the blade turned from the tractor (reversing the tractor), the blade does not have the... - Page 8 ASSEMBLY INSTRUCTIONS Apply grease on the surfaces that is assembled together to decrease wear, prevent corrosion and simplify future service. SPARE PARTS 1.Blade 8. Suspension 15.Pin to the tower 22. 3 point linkage 2. Pin wheel bracket 9. Pin - boom 39x325 16.
- Page 9 Grease points for grease gun:...
- Page 10 A. Mount the wheel (4) in the suspension (8) with the bolt (18) and it’s M20 nut and washer. Put a sleeve (27) on either side of the wheel on the inside of the fork in the suspension to distance the wheel from the fork.
- Page 11 E. Mount the boom (10) and half moon to the rotation plate (11) on the blade with 6 pc M16x80 bolt, nut and washer, tighten alternately. F. Mount the lock-pin in the boom (6) with M10 bolt and washer. Put in the joint-pin (5) to lock the angle of the blade.
- Page 12 L. Mount the hydraulic cylinders as in the picture, the little one on top between the three point hitch and boom, the larger one between the boom and blade. Note that the hydraulic hoses are facing inward on both cylinders. M.
- Page 13 P. Mount the hydraulic hoses on the three point hitch. Q. Note that the upper cylinders hoses is on the left side (this side on the picture) of the three point hitch. WIRING DIAGRAM 37-27070SHCC...
- Page 14 NOTES:...
- Page 15 Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine.
-
Page 16: Warranty Terms And Conditions
Other equipment must meet the hardware requirements of the Directive Tina Baudtler, Representative Kellfri AB is constantly working on further developing their products and therefore reservesthe right to modify, among other things the design and appearance without notice CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
