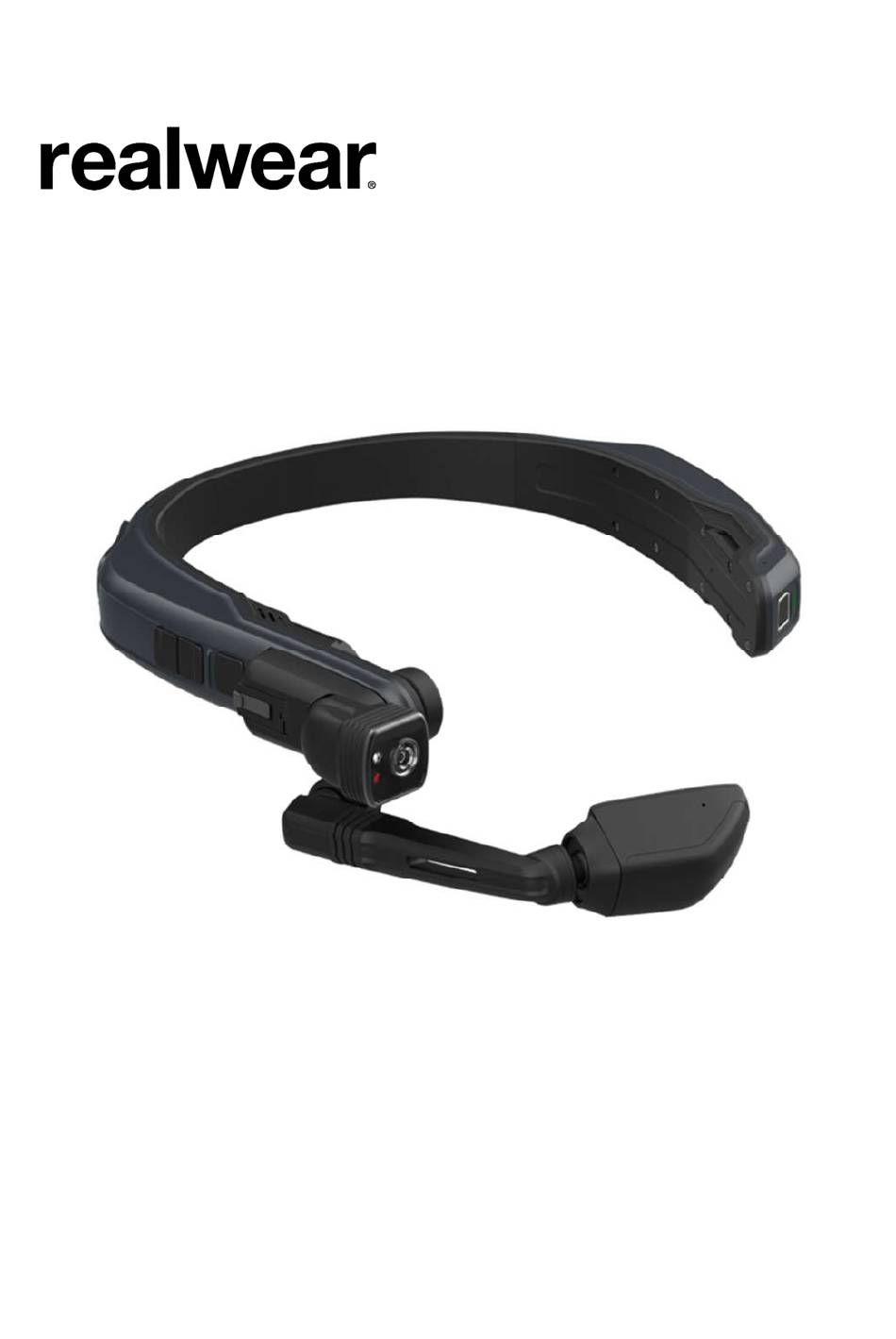

N A V I G A T O R 5 0 0
User Guide
RealWear, Inc. Copyright 2021
www.realwear.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAVIGATOR 500 and is the answer not in the manual?

Questions and answers

Related Manuals for RealWear NAVIGATOR 500

Summary of Contents for RealWear NAVIGATOR 500

  • Page 1 N A V I G A T O R 5 0 0 User Guide RealWear, Inc. Copyright 2021 www.realwear.com...

  • Page 2: Table Of Contents

    Table of Contents RealWear Navigator 500 ..............................3 Navigator Features..............................4 Navigator Product Specifications ..........................5 RealWear Navigator™ 500 Software Brief ......................... 6 Navigator Safety Guidelines ............................. 8 Safety and Usage Guidelines ............................ 9 Navigator Connectivity ............................10 Navigator Box Contents ............................10 Navigator Device Overview .............................

  • Page 3: Realwear Navigator 500

    RealWear Navigator 500 The RealWear Navigator™ is the world’s first hands-free Android™ tablet class wearable computer for industrial workers. The RealWear Navigator™ provides the foundation for Connected Worker programs. Use it in wet, dusty, hot, dangerous, and loud industrial environments.

  • Page 4: Navigator Features

    RealWear Navigator™ 500 User Guide Navigator Features 100% Hands free Voice based operating system with local speech recognition in loud areas. Powerful Audio Integrated speaker and 3.5mm audio jack for use with hearing protection. Unmatched Noise Cancellation Navigator uses four microphones and advanced algorithms to perform noise cancellation prior to voice recognition.

  • Page 5: Navigator Product Specifications

    Up to 1080p @30fps with 5x zoom. Codecs: VP8, VP9 and hardware encoding support for H.264, H.265 HEVC Battery Life Full shift (9-10 hours) with typical use Accessories Physical Characteristics Included RealWear Navigator 500™, USB Type-C Charging Weight Cable, Workband, Removable Battery, Quick Start 9.28 oz/263g Cards realwear.com...

  • Page 6: Realwear Navigator™ 500 Software Brief

    Android Enterprise Support All Navigator devices can be managed by either RealWear Foresight or by an EMM (Enterprise Mobility Management) system. Android Enterprise standards allow for device management of the Navigator by most EMM providers – please see http://www.realwear.com/support for information on currently supported EMM providers or contact your provider directly.
  • Page 7 Cloud Services Fully manageable by RealWear Foresight Cloud or select EMM providers Software support and voice recognition for 17 languages Language Dynamic and individual language strings can be adjusted or improved by administrators...

  • Page 8: Navigator Safety Guidelines

    Battery Performance A rechargeable battery powers your device. Always use only the original type of RealWear battery that came with the device. Use the battery only for its intended purpose. Never use any charger or battery that is damaged. If the battery is completely discharged, it may take a few minutes before the charging indicator appears on the display or before the device can be used.

  • Page 9: Safety And Usage Guidelines

    Do not put any objects on the cable that may let it overheat. It may damage the cable and cause fire or electrocution. Do not use any cable other than the original cable as it may cause short circuit or electrocution.  realwear.com...

  • Page 10: Navigator Connectivity

    Operations in the 5.15 — 5.35GHz band are restricted to indoor use only. Bluetooth BT 5.1 LE (Low Energy) Navigator Box Contents The list of items in the RealWear Navigator™ 500 box are: RealWear Navigator™ 500:  USB cable type C Navigator Quick Start Card ...

  • Page 11: Navigator Device Overview

    Mic A1 (Mic A2 on opposite side) 12. Speaker (one on each side) Display Pod Pivot 13. Side Accessory Clipping points Boom Arm Rear View Battery Pack Display Window Audio Jack USB-C Charging Port Micro SD Card Slot Cover Rear Band Camera Module realwear.com...

  • Page 12: Navigator Device Overview - Details

    RealWear Navigator™ 500 User Guide Navigator Device Overview – Details Power Button/ Fingerprint Sensor There is a button/sensor on the front of the battery side of the device. This is used to unlock Navigator, power on, power off, put into Sleep Mode, or wake from Sleep.
  • Page 13 (imagine the human arm). Its orientation can be inverted to allow use by left or right eye dominant users. Display Pod Pivot The Display Pod can pivot in multiple directions to allow you to view the Navigator display from the angle you need. realwear.com...
  • Page 14 RealWear Navigator™ 500 User Guide Display Pod The Display Pod can be rotated and adjusted so the user can see the display clearly. The Display itself is an 854x480p 24-bit LCD Display with 20-degree field-of-view and 1-meter focal depth, meaning that it appears like a 7in. Tablet at arm’s length.
  • Page 15 Secure the flap. USB-C Port For all charging and data transfer, you must use the USB-C port, which is located next to the battery compartment, beneath the rear flap on the side opposite the boom arm. realwear.com...
  • Page 16 Headphones can be connected to Navigator using the 3.5mm headphone jack on the back of the Navigator, under the flap on the side of Navigator, on the opposite side from the USB-C charging port. We recommend using RealWear 33 dB noise-reduction earbuds with your Navigator. Workband This is an adjustable Velcro strap that rests across the top front of the wearer’s head.

  • Page 17: Navigator Setup Guide

    Viewing Navigator's display with your dominant eye will allow for the most clear and comfortable use of the device. Step 2 - Get Navigator Ready Before wearing, hold Navigator level with the boom-arm/display on the left or right, whichever is your dominant eye side. Bend the boom so it forms a slight "Z" shape as shown below. realwear.com...
  • Page 18 Step 3 - Ensure proper head-mounting accessories are in place. You may mount Navigator to a baseball cap, bump cap or hard hat, or you may use the RealWear WorkbandThese can include the single strap, tri-strap, hardhat with clips, bump cap with tri-strap, baseball cap or Workband with mounting kit.
  • Page 19 Navigator with the other, push the display pod inward so that it is close to, in front of and slightly below your eye. Move the display towards the center line by pushing from the outside inward. realwear.com...
  • Page 20 RealWear Navigator™ 500 User Guide In about ten to fifteen seconds you will hear a sound Step 7 – Power On Navigator as the start-up sequence completes. Navigator is now powered on and ready to wear. You should now be Before putting Navigator on your head, press and able to see the screen.
  • Page 21 When you are ready to use the camera, you will need Step 9 - Fine tune the camera to make some final adjustments so that the view of the camera is forward and unobstructed. realwear.com...

  • Page 22: Remote Configuration For Navigator From Web Browser

    10. When the QR code is scanned a tone will sound and you will be returned to the previous screen. The preceding steps can also be accomplished using the RealWear Companion app, available on the App Store and Google Play.

  • Page 23: Determining Eye Dominance

    Maintaining focus on the object centered in the triangle and - keeping your head and both hands still - close your left eye. If the object is still in the triangle, you are right-eye dominant If the object is in the triangle with either eye, then you are dominant eye neutral. realwear.com...

  • Page 24: Headwear With Navigator Devices

    RealWear Navigator™ 500 User Guide Headwear with Navigator Devices Compliant with your PPE, Navigator can be mounted several other ways in order to increase stability, (Check the RealWear Website for specific model comfort, and safety. availability.) Mounting with Hardhat and optional accessory clips.
  • Page 25 Headwear continued Mounting with a specially modified RealWear Navigator can be mounted to a bump cap using a tri- Baseball Cap band strap. Mounting with tri-band strap and bump cap realwear.com...

  • Page 26: Using Navigator With A Hard Hat

    If you wear eyeglasses to operate a computer, or eye protection for your work, continue to wear the same glasses or eye protection while using Navigator. While Navigator devices are designed to work well with or without eyeglasses or eye protection, RealWear recommends wearing eye protection while using an Navigator. RealWear, Inc. Copyright 2021...

  • Page 27: Navigator Charging Basics

    A Red light means the battery is less than 10% charged. A Yellow light means the battery is less than 60% and charging. A Green light means the battery is more than 60% charged. A Blue light means bluetooth pairing mode is active. realwear.com...
  • Page 28 Inserting Rechargeable Battery The RealWear Navigator requires a rechargeable battery to function. The device ships with the battery already installed. To remove the battery, press in on the tab behind the fingerprint sensor and pull the battery away from the Navigator.

  • Page 29: Configuring Your Navigator

     Network & Internet Connected devices  Apps & notifications  Battery  Display  Sound  Storage   Security and location  Users & accounts  Accessibility  RealWear System  realwear.com...

  • Page 30: Setting Up Screen Lock

    RealWear Navigator™ 500 User Guide Navigator Configure Continued Setting Up Screen Lock Using Android's Screen Lock feature protects your Step 3: Say 'SCREEN LOCK' or select using the Navigator device from unauthorized access. To setup 'SELECT ITEM #' command. On the screen above the the screen lock, do the following: correct command would be "SELECT ITEM 3"...
  • Page 31 The Screen Lock is enabled, and the device will lock the next time it goes to sleep. You can press the power button for one second or less to lock the device. Or if the device is idle for an amount of time selected in Settings>Display>Sleep. realwear.com...

  • Page 32: Unlocking Navigator Using Pin

    RealWear Navigator™ 500 User Guide Navigator Configure Continued Unlocking Navigator Using PIN When screen lock is enabled, the device requires a PIN number upon waking from sleep mode or when the device is restarted. Once unlocked the device will go to the Home Screen in the case of a reboot of the device or will return to the last screen open in the case of waking from sleep mode.

  • Page 33: Wireless Update

    Wireless Update Your device is already configured to keep its operating system up to date via over-the-air (OTA) updates distributed by RealWear. The Navigator will not update automatically, it requires a user to launch the update. Step 1: Power ON the Navigator and connect to a Wi- Fi network.
  • Page 34 RealWear Navigator™ 500 User Guide Step 4: Say “DOWNLOAD” or say, “SELECT ITEM (followed by the item number)”. The software update download will start. The download time depends on the size of the package and the network connectivity. You can set the installation delay time to by 1, 4 or 8 hours.
  • Page 35 Also ensure that there is at least 30 % charge before installing an update.' Software Update Warning 'When the software update begins, the following warning is displayed.' The Navigator will reboot itself upon completion of the update. realwear.com...

  • Page 36: Selecting Navigator Interface Language

    RealWear Navigator™ 500 User Guide Navigator Configure Continued Selecting Navigator Interface Language Navigator supports the following languages: Dutch Chinese (Cantonese) Chinese (Mandarin) Chinese (Traditional) Czech English French German Italian 10. Indonesian 11. Japanese 12. Korean 13. Polish 14. Portuguese 15. Russian 16.

  • Page 37: Navigator Microsd Card

    Step 1: Unscrew the MicroSD card slot door and pull the edges to open. Step 3: Unlock the metal compartment and swing out to open. Step 2: Open the MicroSD card slot door and hold open with your thumb. realwear.com...
  • Page 38 RealWear Navigator™ 500 User Guide Step 4: Insert the MicroSD card into compartment as shown below. Step 5: Close the compartment and slide compartment left to lock in place. Step 6: Close the MicroSD card slot door. Step 7: Re-insert the screw and tighten to secure.

  • Page 39: Setting Up And Using A Microsd Card

    Step 4: Say "NEXT" Step 2: Use the "SELECT ITEM #" command to select the notification number and setup the MicroSD card. Then say "OPEN". Step 5: Say "ERASE AND FORMAT". The MicroSD card formatting progress is displayed. realwear.com...
  • Page 40 RealWear Navigator™ 500 User Guide MicroSD Card Setup Continued Step 6: When finished, say "DONE" Step 9: Say "PAGE DOWN", then say "REALWEAR" Step 7: Now enable the card as the default storage. Say "MY CONTROLS" Step 10: Say "STORAGE MODE" to toggle between Local Storage and SD Card.

  • Page 41: Navigator Device Care

    Navigator Device Care Powering Off the Navigator RealWear recommends that you power off your Navigator device when not in use to conserve battery and ensure the longevity of the device. You can do so in two ways: A. Hands Free Say “MY CONTROLS”...

  • Page 42: Cleaning The Navigator Device

    Hardhat Clips: Hardhat mounting clips are made of plastic and can be cleaned with alcohol wipes or water. Tip: Toothpicks can be used to remove dirt in hard-to-reach areas. Hearing Protection Ear Buds: The RealWear Hearing Protection Ear Buds are an electronic component with a ...

  • Page 43: Navigator Interaction Modes

    When you want to stop using this gesture and return to page up/down commands, say "SCROLL DISABLE". This is extremely useful for quick scrolling to the bottom of a list; when the bottom is reached, quickly say "SCROLL DISABLE". realwear.com...

  • Page 44: Speech Keyboard

    RealWear Companion app on a mobile phone. This is convenient for passwords and long strings of text. Simply open the RealWear Companion app, select 'Remote Keyboard', enter text and tap on the QR RealWear, Inc. Copyright 2021...
  • Page 45 Some languages support local dictation as well. You can also access the “DICTATION” option by saying “MORE OPTIONS”. For more information, please visit www.realwear.com/support. NOTE: If the keyboard becomes hidden or accidentally closed, use the "SELECT ITEM #" command to select the text field again and the speech keyboard will reappear.
  • Page 46 RealWear Navigator™ 500 User Guide At any time the user may switch to other entry modes by simply saying the appropriate command as displayed. For example, say "LETTERS" to return to scrolling letter entry mode. Speech Keyboard Continued Keyboard Voice Commands...

  • Page 47: Voice Control

    Navigator Interaction Continued Voice Control Introducing WearHF™ WearHF™ is an innovative software solution that enables you to use your RealWear Navigator as a hands-free device. It is easy to use and loaded with intuitive functions. Speech Recognition — Say What You See Navigator devices operate based on speech recognition.
  • Page 48 RealWear Navigator™ 500 User Guide Voice Continued Alternate Speech Recognition Sometimes, the control on the screen has no name, is a scroll button without a label, or is a file with an unpronounceable filename such as 3454-x.pdf. WearHF™ automatically proposes an alternative speech command and assigns a number.

  • Page 49: Navigator Software Overview

     Note: your organization may have modified the home screen to add or subtract some of the launch icons. Navigator Home Screen Accessing the Home Screen To access the Home Screen from anywhere in the system, say “NAVIGATE HOME”. realwear.com...
  • Page 50 RealWear Navigator™ 500 User Guide Home Continued Control Buttons You can access the various applications by activating the following controls provided in the Home Screen. Voice Command Action “MY PROGRAMS” Launches application launcher to see and access all the applications installed in the device.

  • Page 51: My Programs

    To view contextual voice commands, say, "SHOW HELP."  My Camera  My Controls  My Files  Settings  Wireless Update My Programs user interface view. The help menu will stay active until you dismiss it by saying “HIDE HELP”. realwear.com...
