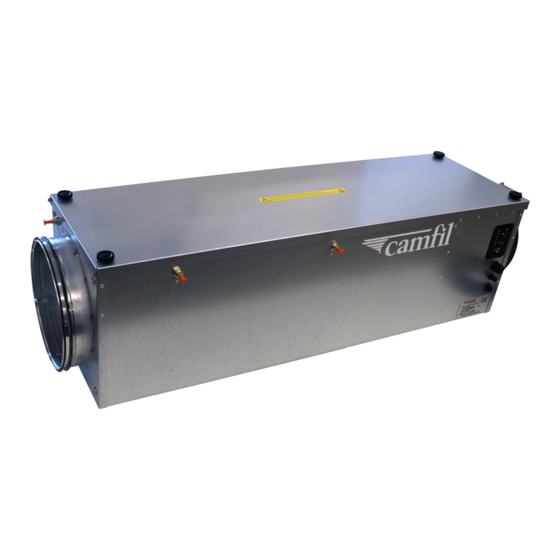

- Page 1 TECHNICAL MANUAL Air Cleaner CC400 Concealed Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018...
-
Page 2: Table Of Contents
14.1. AIR CLEANER FILTERS AND THE ENVIRONMENT 15. MAINTENANCE 16. INSTRUCTIONS FOR REPLACING AIR CLEANER FILTERS 13,14 16.1. FILTER REPLACEMENT 17. IP CLASSIFICATION 18. EU PROVISIONS GOVERNING THE PRODUCT 19. AIR CLEANER SYSTEM 20.CAMFIL IAQ ANALYSIS Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 3: Contents
The guarantee relates to full functionality as per the details in this user manual and covers errors in software and hardware for a period of one year from the delivery date. Should the equipment develop a fault, please contact your distributor. Distributor of Air Cleaner Concealed: Camfil AB Web: www.camfil.com Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 4: Preface
TECHNICAL MANUAL Air Cleaner CC400 Concealed 6. Preface Thank you for buying an air purifier from Camfil AB. We hope that you will be delighted with your Air Cleaner Concealed. Important! Before using your Air Cleaner Concealed air, it is important that you, as the user: read this user manual; read the fan instructions;... -
Page 5: Use
The Air Cleaner Ceiling must be mounted for filter replacement from the side and not upside down. Mounting devices must be able to take a load of at least 88 kg Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 6: Mounting Drawing
TECHNICAL MANUAL Air Cleaner CC400 Concealed 8.2. Mounting, drawings Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 7: Safety Instructions
Accessories, filters, spare parts, etc. used with the Air Cleaner Concealed must be approved by Camfil AB. Guarantee undertakings cease to apply if the foregoing is not respected. Please contact Camfil AB for the correct accessories. -
Page 8: Design
User manual. Fan instructions (from the fan supplier). If anything is missing, or if you require further information about accessories, please contact Camfil AB. 11. Transport and unpackaging When the Air Cleaner Concealed is to be installed, remove the packaging carefully. If sharp objects are used for unpack aging, take care of the machine’s cables and metal finish. -
Page 9: Air Flow Details
Air Cleaner. The extremely large filter surface increases both service life and filter efficiency. Further increases of the HEPA/EPA filter’s service life can be achieved by careful management of pre- filter replacement. Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 10: Taking Into Operation
Camfil AB supplied equipment. The Air Cleaner Concealed must only be connected to the network voltage that is stated on the machine plate (identification plate). Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 11: 4,5.6 Electrical Connection
Air Cleaner CC400 Concealed 12.4. Electrical Connection,1-phase EC fan NB! Only appropriately qualified electricians may carry out work on or in this machine. Electrical connection with Controller Card, fuse holder and RS485 connector. Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 12: Meassuring Point For Pa
Filter efficiency Pressure drop A = Before filter A+B = Pre filter B = After Pre filter B+C = HEPA filter C = After HEPA filter A+C = Pressure both filters Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 13: Air Cleaner And The Environment
Used filters may contain harmful substances and particles. With incorrect handling, these can escape to the environment and present risks of sickness and ill health. Filters should be replaced on a continuous basis. As regards frequency of filter replacement, see Camfil AB’s recommendations. -
Page 14: Filter Replacement
HEPA filter in place. Take a new HEPA filter out of its box. NB! Do not touch the filter’s surface. Hold the frame only! Do the steps 1- 8 in reverse order. Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 15: Ip Classification
Note that correct observance of the installation and safety instructions is a precondition for the compliance of all the operating properties. For more details of technical specifications, the standards that have been complied with and Camfil’s patents, please contact Camfil AB. -
Page 16: Air Cleaner System
Is discharged from the holes along the wall. The purified air thus creates a sort of curtain that divides the room into two zones; one with higher quality air and one with lower quality air. Air Cleaner Consealed CC400 manual, Ver. 001 Oct 2018... -
Page 17: Camfil Iaq Analysis
As an additional option for your Air connected to a computer which monitors the indoor Cleaner system, you can choose Camfil IAQ Analysis which environment. When an abnormal particle distribution is provides a direct picture of the air quality in your rooms. We... - Page 18 Camfil Farr is a global company with 29 subsidiaries, 23 production plants and an extensive network of agents in Europe, the Americas and the Asia-Pacific region.
