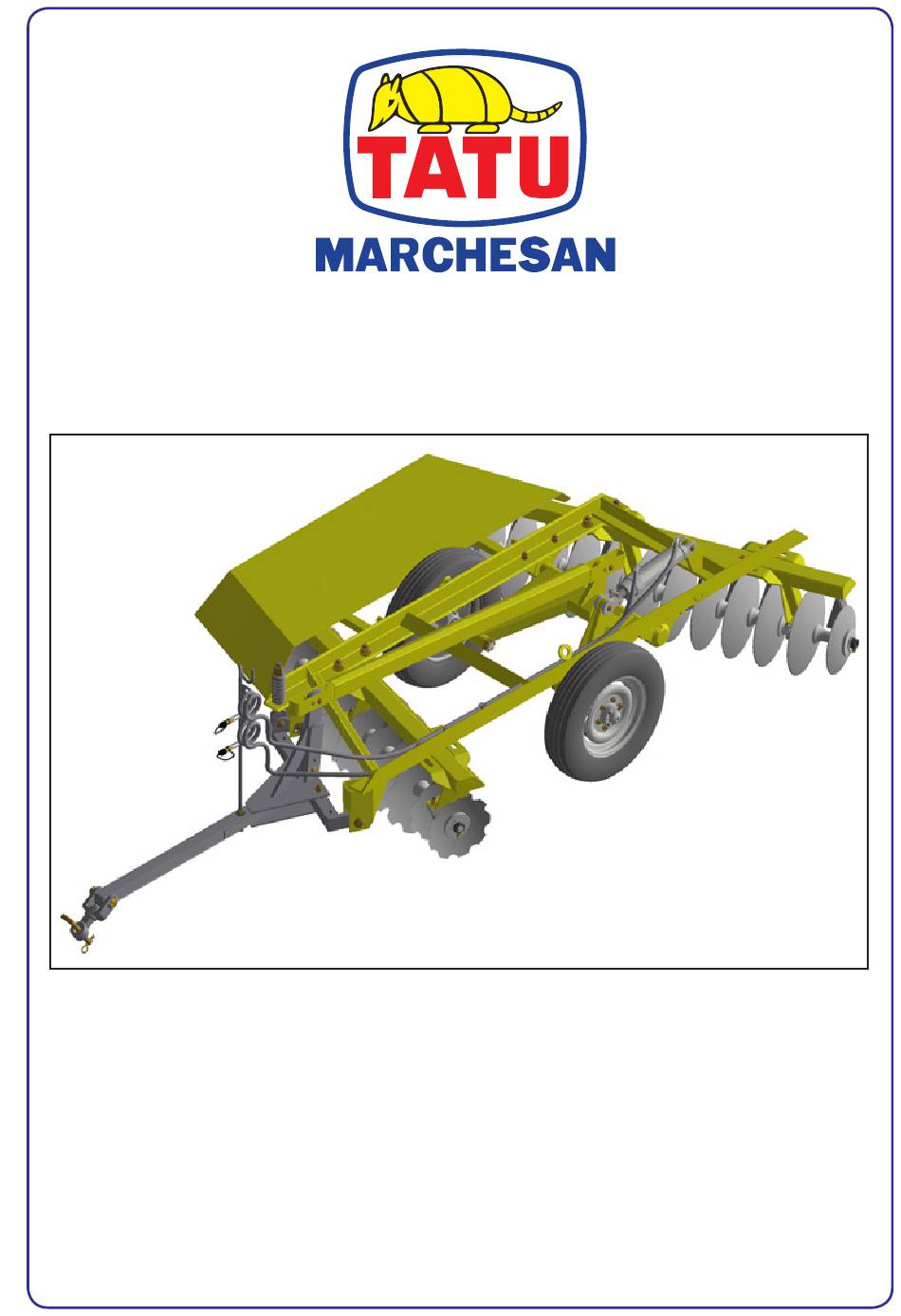

I N S T R U C T I O N S M A N U A L
GNLCR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GNLCR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tatu Marchesan GNLCR

Summary of Contents for Tatu Marchesan GNLCR

  • Page 1 I N S T R U C T I O N S M A N U A L GNLCR...
  • Page 2 IDENTIFICATION Dealer: Owner: Firm / Farm: City: State: No. of the Certificate of Guarantee: Serial / No.: Date: Invoice No.: Product: Notes:...

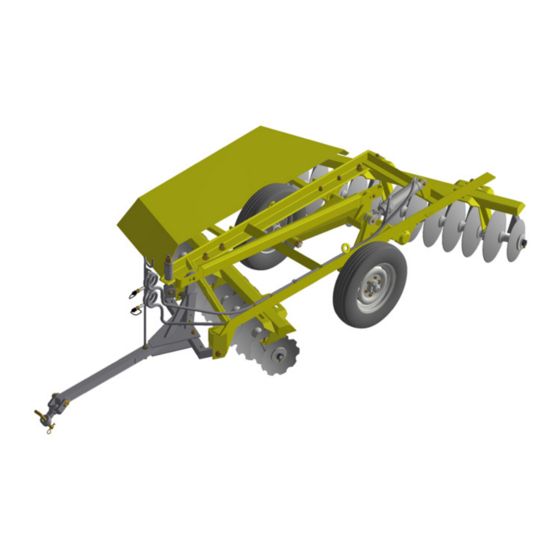

  • Page 3 Introduction The model GNLCR - Hinge Wheel Type Offset Disk Harrow - is specially designed to cultivate citrus orchards and similars, with higher performance and premium quality. The harrow is supplied with higher concavity and smaller diameter disc blades at the carrier ends. The possibility to...

  • Page 4: Table Of Contents

    Operations - Important points 8. Maintenance 26 to 28 Lubrication 26 & 27 Harrow maintenance / Maintenance precautions 9. Important data 29 to 31 Calculation of hourly income Average income table Torque table 10. Important GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 5: To The Owner

    NOTE which the original purchaser thereof at retail has used or allowed to be used parts, not made or supplied by Marchesan S/A. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 6: To The Operator

    • The instructions under this symbol refers to the safety of the operator or third parties, therefore it should be carefully read and observed. The GNLCR disk harrow is simple to operate, requiring however the basic and essential cautions to its handling. Always keep in mind that safety requires constant attention, observation and prudence during the harrowing, transportation, maintenance and storage.
  • Page 7 Any contact may result in severe shocks, injuries or death. For your protection and safety, always wear adequate clothes and footwear while operating the equipment. Always use the safety locks to transport the equipment. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 8 • Whenever you unhitch the equipment, either in the field or shed, do it on a flat and firm surface and use the parking stands. Make sure the equipment is properly supported. • Please check the general safety instructions on the back of this manual. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 9: Truck Or Trailer Transportation

    • Check all laws and regulations regarding the height limits and load width while transporting the equipment on truck or trailer. If necessary use banners, lights and other devices in order to give adequate warning to the other drivers. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 10: Safety Stickers

    L U B R I C AT E A N D T I G H T E N D A I LY LUBRICAR Y REAPRETAR DIARIAMENTE 05.03.03.1827 Adhesive label Model Serial number GNLCR 05.03.06.0845 GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 11: Technical Specifications

    Technical specifications Type: ..............Hinge Wheel Type Offset Disk Harrow Model: ........................ GNLCR Spacing between disc blades: ................170 mm Disc blades dimension: ..........Ø 16" x 3.5 mm or Ø 18" x 3.5 mm Number of disc blades: ..............25, 27, 29, 33 and 37 Disc blade type: ..................

  • Page 12: Components

    11 - Protection cover 12 - Cylinder 13 - 3/8" x 5600 TC - TM hose 14 - 3/8" x 5300 TC - TM hose 15 - Quick coupler 16 - Hose support GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 13: Assembly

    We recommend wearing gloves, especially while assembling the disc ATTENTION gangs. Assembly of bearings and spacer spools Before starting to assemble the disc gangs, check the correct position of the bearings and spacer spools, according to the following pages: GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 14 Assembly Assembly of bearings and spacer spools GNLCR - 27 discs GNLCR - 25 discs 06 bearings 06 bearings 19 spacer spools 17 spacer spools GNLCR - 33 discs 08 bearings GNLCR - 29 discs 21 spacer spools 06 bearings...

  • Page 15: Disc Gangs Assembly

    • Finally, put the bolt (H-1) and position the lock nut (I-1), fastening it with a spring washer and nut. • Check the correct side of the bearings and spacer spools according IMPORTANT to the concavity of the disc blades. Grease fitting or plug GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 16 Assembly Axis torque Axis diameter Ft. - lbs. 1.1/2" 1600 1.5/8" 1900 2.1/8" 2100 Consult torque table on page 31. NOTE 2.1/2" 2300 GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 17: Assembly Of Disc Gangs On The Chassis

    • Place the bolt (A) and the bolt lock (B), passing through the bearing housing and the bearing hanger hole. On top, place a flat washer (C), nut and cotter pin. • Repeat this operation for other bearings. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 18: Scrapers Assembly

    On top, place a spring washer and nut. The scrapers feature an adjustment to approach or distance them from the NOTE disc blades. It should have a distance from 5 to 10 mm. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 19: Chassis Assembly To The Frame

    • The internal bolt (D) in the front and rear chassis (closed side of the harrow) NOTE is placed in the opposite position, according to the illustration above. • See opening adjustments on page 23. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 20 (B) using bolts and nuts. Traction unit assembly Couple the upper and lower plates (A) to the hitch bar (B), using a bolt (C), spring washer and nut. Check the side displacement adjustments on page 24. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 21: Hoses Assembly

    • Always use thread sealing tape to couple the "male" quick couplers to the hoses. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 22: Protection Cover Assembly

    • The protection cover is assembled on the right side of the harrow (closed side). • Articulate the cover above the frame and also assemble the bumpers (C) to the chassis ends (front and rear) on the same side. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 23: Working Preparation

    Relieve the pin by activating the control valve to lower the tires. • Keep the traction bar fixed (work and transportation). • Never remove the hoses before lowering the harrow and relieve the control valve pressure. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 24: Important Recommendations

    • Before working, check the condition of all parts and retighten nuts and bolts, especially the ones on the disc gangs, otherwise the axis and other fixation components may be damaged. • Lubricate all grease fittings appropriately. (See lubrication instructions on pages 26 and 27). GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 25: Adjustments And Operations

    • To start the harrowing, we recommend an average disc gang opening. If a bigger penetration is necessary, increase the opening angle of the rear gang. • The front gang usually does not work with a greater opening than the rear gang. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 26: Side Displacement

    The better position is achieved by changing the drawbar position on the hitch bar, according to the figure below. Hitch bar Drawbar When adjusting the side displacement, it is also necessary to change the fixation of the stabilizer bar (A). GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 27: Operations - Important Points

    • Relieve the control valve pressure before disconnecting the quick couplers and when doing any verification in the hydraulic cylinder. • As previously mentioned the GNLCR harrow has several settings. However, only the local conditions can determine the best adjustment thereof.

  • Page 28: Maintenance

    The suitable level is when the oil reaches the hole of the plug, being the NOTE harrow in a flat place. The oil level on the bearings is 120 ml. Lubricate every 24 operating hours GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 29 Maintenance Lubricate every 24 operating hours Lubricate every 100 operating hours GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 30 If s u c h doctor does not possesses proper knowledge of this kind of problem, ask for a referral or search to find the proper treatment. GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 31: Important Data

    Important data Calculation of hourly income To calculate the hourly income of the GNLCR disk harrow, use the following calculation: R = L x V x E Where: R = Hourly income; L = Harrow working width (in meters); V = Average speed of the tractor (in meters per hour);...

  • Page 32: Average Income Table

    To know how many hours will be spent to work a certain previously known area, it is necessary to divide the value of the area by the hourly income. Example: An area of 100 hectares to be worked with a GNLCR of 37 disc blades (Hourly income = 1,83 ha).

  • Page 33: Torque Table

    GRADE 8 No Marks. 3 Marks. 6 Marks. For metric conversion: NOTE • Multiply inch-pounds by 0,113 to convert to newton-meters (Nm). • Multiply foot-pounds by 1,356 to convert to newton-meters (Nm). GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 34: Important

    Av. Marchesan, 1979 - P.O. Box 131 - Zip Code 15994-900 - Matão - SP - Brazil Telephone 55.16.3382.8282 - Fax 55.16.3382.3316 Sales 55.16.3382.1009 - Parts 55.16.3382.8297 - Exportation 55.16.3382.1003 e-mail: tatu@marchesan.com.br www.marchesan.com.br GNLCR Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
