AX20-FK-V2

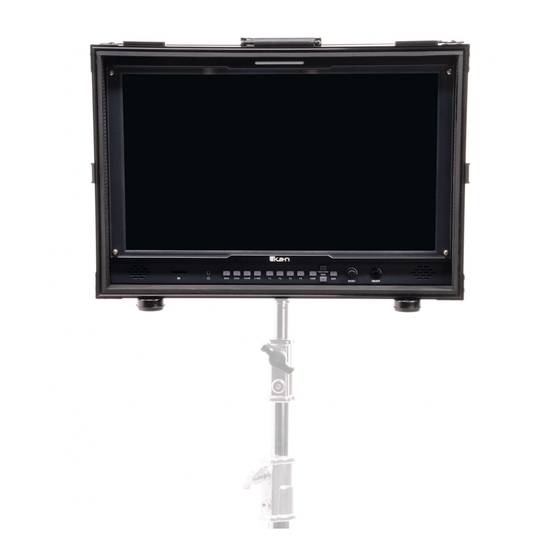

Atlas 21.5" Field and Studio 4K Support HDMI & 3G-SDI Monitor
with 3D LUTs and Tally Built in Hard Case
What's Included
1 x AX20-FK-V2
1 x Power Cable
1 x Sunhood
1 x SD Card for LUTs
www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com
Quick Start Guide
because we're filmmakers too
Advertisement
Related Manuals for Ikan Atlas AX20-FK-V2
Summary of Contents for Ikan Atlas AX20-FK-V2
- Page 1 Quick Start Guide AX20-FK-V2 Atlas 21.5” Field and Studio 4K Support HDMI & 3G-SDI Monitor with 3D LUTs and Tally Built in Hard Case What’s Included 1 x AX20-FK-V2 1 x Power Cable 1 x Sunhood 1 x SD Card for LUTs because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
- Page 2 FRONT ¼”-20 and 3/8”-16 Mounting Board SD Card Slot for 3D LUTs 3.5mm Audio Out Input Switch Buttons F1-F4 Buttons (Function can be mapped in Menu) False Color Button HDR On/Off Button Mute Exit Menu Button/Knob On/Off Button G H J BACK V-Mount Battery Plate AC Power Port...
- Page 3 Menu Settings Specifications Exposure Assist Brightness 400 cd/m2 False Color – Select from two color patterns Build Material Aluminum Zebra – Set IRE from -7 to 109 Contrast 1000:1 Histogram – Adjust transparency and position Dimensions 20.9 x 14.9 x 1.9 in. Waveform - Adjust transparency and position 530.4 x 377.8 x 47.3 mm Vectorscope - Adjust transparency and position...
- Page 4 Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2021 Ikan International. All rights reserved. because we’re filmmakers too www.ikancorp.com | 1.713.272.8822 | sales@ikancorp.com...
