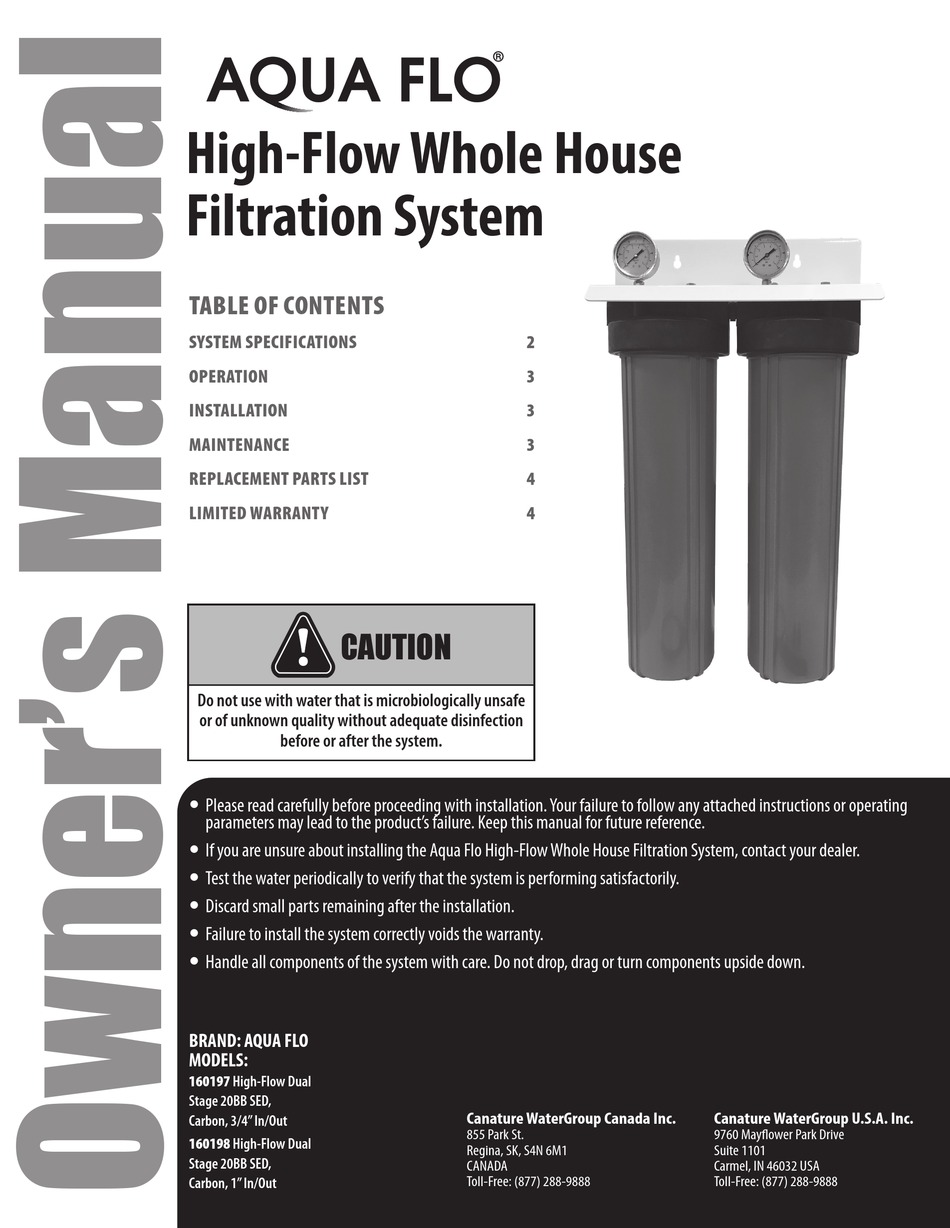

Aqua Flo 160197 Owner's Manual

High-flow whole house filtration system

Advertisement

Quick Links

High-Flow Whole House
Filtration System
TABLE OF CONTENTS
SYSTEM SPECIFICATIONS
OPERATION
INSTALLATION
MAINTENANCE
REPLACEMENT PARTS LIST
LIMITED WARRANTY
CAUTION
Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection
before or after the system.
 Please read carefully before proceeding with installation. Your failure to follow any attached instructions or operating
parameters may lead to the product's failure. Keep this manual for future reference.
 If you are unsure about installing the Aqua Flo High-Flow Whole House Filtration System, contact your dealer.
 Test the water periodically to verify that the system is performing satisfactorily.
 Discard small parts remaining after the installation.
 Failure to install the system correctly voids the warranty.
 Handle all components of the system with care. Do not drop, drag or turn components upside down.
BRAND: AQUA FLO
MODELS:
160197 High-Flow Dual
Stage 20BB SED,
Carbon, 3/4" In/Out
160198 High-Flow Dual
Stage 20BB SED,
Carbon, 1" In/Out
2
3
3
3
4
4
Canature WaterGroup Canada Inc.
855 Park St.
Regina, SK, S4N 6M1
CANADA
Toll-Free: (877) 288-9888
Canature WaterGroup U.S.A. Inc.
9760 Mayflower Park Drive
Suite 1101
Carmel, IN 46032 USA
Toll-Free: (877) 288-9888

Advertisement

loading
Need help?

Need help?

Do you have a question about the 160197 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua Flo 160197

  • Page 1 Keep this manual for future reference.  If you are unsure about installing the Aqua Flo High-Flow Whole House Filtration System, contact your dealer.  Test the water periodically to verify that the system is performing satisfactorily.
  • Page 2  Do not install the system on a hot water line. Failure to limit the Inlet/Outlet Connections: water temperature to 100°F (38°C) can result in housing failure and 160197: 3/4" (19.05mm) NPT property damage. 160198: 1" (25.4mm) NPT  Do not connect the system backwards with the feed water line connected to the outlet.
  • Page 3 OPERATION MAINTENANCE With sufficient pressure, this system operates automatically. To Routine maintenance of this system involves periodic filter changes. ensure it operates dependably, you need to perform periodic filter Cartridges should be changed at least every 6 months or sooner changes and monitor system pressure differential as outlined in the depending on incoming water quality.
  • Page 4 MAINTENANCE REPLACEMENT PARTS (CONTINUED) Winter Shut-Down Procedures The following procedure is recommended if you are winterizing your residence or RV. kg/cm kg/cm NOTICE IMPORTANT: Filter housings will break if water is left in them in freezing weather conditions. 1. Turn off the water supply to the filter system. If you are draining your fresh water holding tank, this will stop the water supply into the filter system.

This manual is also suitable for:

160198
