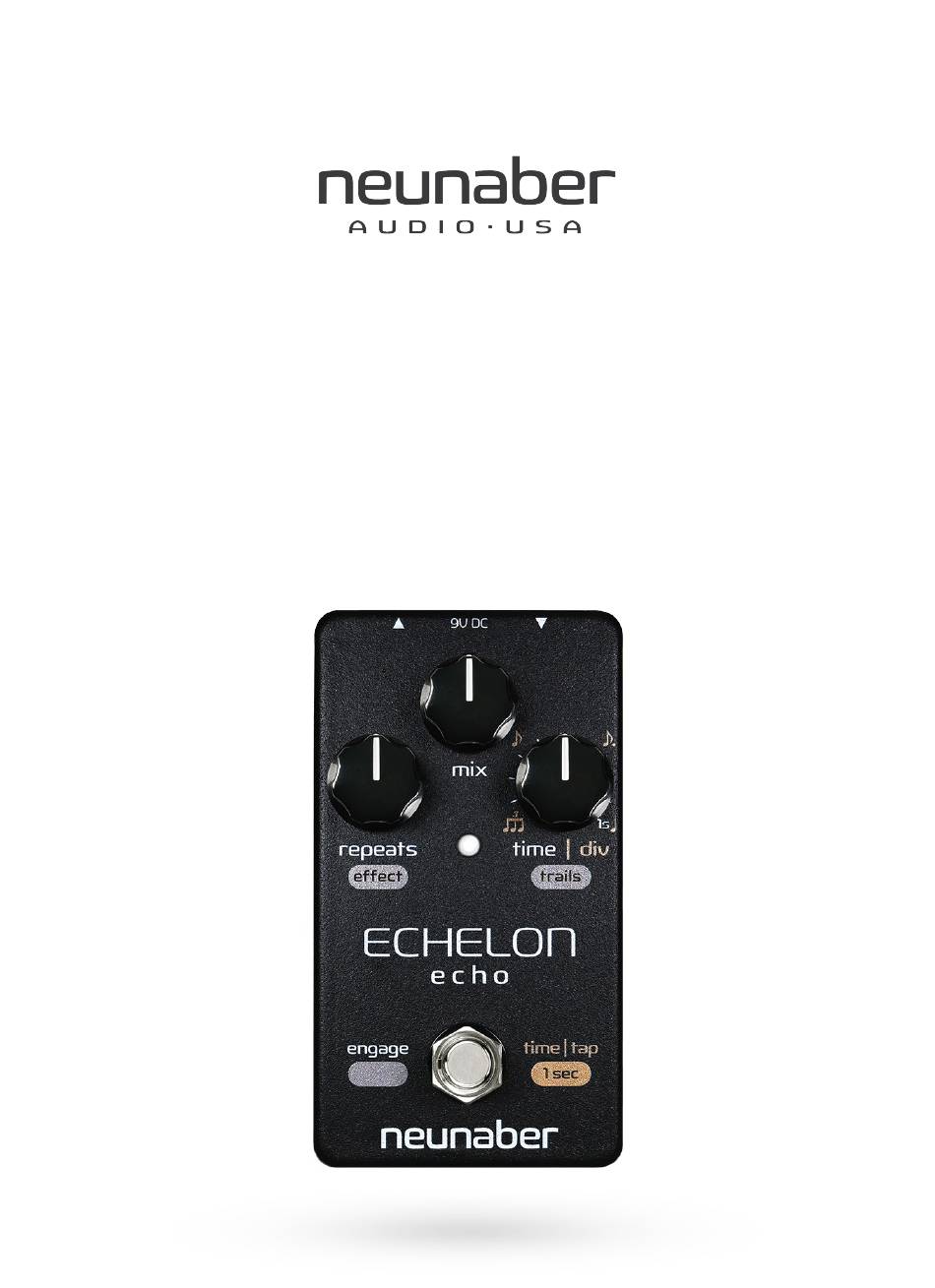

- Page 1 ECHELON ECHO v2 USER GUIDE...
- Page 2 Thank you for purchasing our product. We really mean it. We hope to earn your trust by delivering a quality product that inspires you to make great music. Neunaber products are designed and manufactured in Orange, California USA. CONNECTIONS We recommend that this pedal be placed at the end of your chain, after all other effects except reverb. If you are using the overdrive channel of your amplifier, this effect should be placed in the effects loop for best results.
- Page 3 PRIMARY CONTROLS The Mix knob controls the mix between the dry signal and effect: • Full counter-clockwise is 100% dry • Full clockwise is 100% echo • Approximately 3 o’clock is an even mix: half dry/half wet REPEATS The Repeats knob controls the number of echo repeats, or in other words, the amount of regeneration. TIME The Time knob controls the echo time.
- Page 4 TAP TEMPO Press and hold the footswitch for 1 second to enter Tap Mode. Release when the LED illuminates red. Tap the foot switch to the beat (quarter-note tempo). The echo time will change to the interval between the last two taps. The two taps must be less than 1 second apart (greater than 60 BPM), because the maximum echo time is 1 second.
- Page 5 *Specifications subject to change without notice. At Neunaber, we love to see what you do with your ‘toys’. We encourage you to tag us in your posts, pictures & videos featuring your Neunaber gear. To stay connected, go ahead and follow us on the channels seen below.
