10
www.electrolux.com
3.8 Gas burners for LPG G31 30 mbar
BURNER
Rapid
Semi-rapid
Auxiliary
Oven
Grill
3.9 Gas connection
WARNING!
Before you connect the gas,
disconnect the appliance
from the electricity supply or
switch off the fuse in the
fuse box. Close the primary
valve of the gas supply.
Before installation take off the sticker,
which is on the gas pipe at the back of
the appliance. Clean the pipe from any
glue remains.
Use a fixed connections or use a flexible
stainless steel pipes in compliance with
the regulation in force. If you use flexible
metallic pipes, make sure they do not
come in touch with mobile parts and they
are not squeezed.

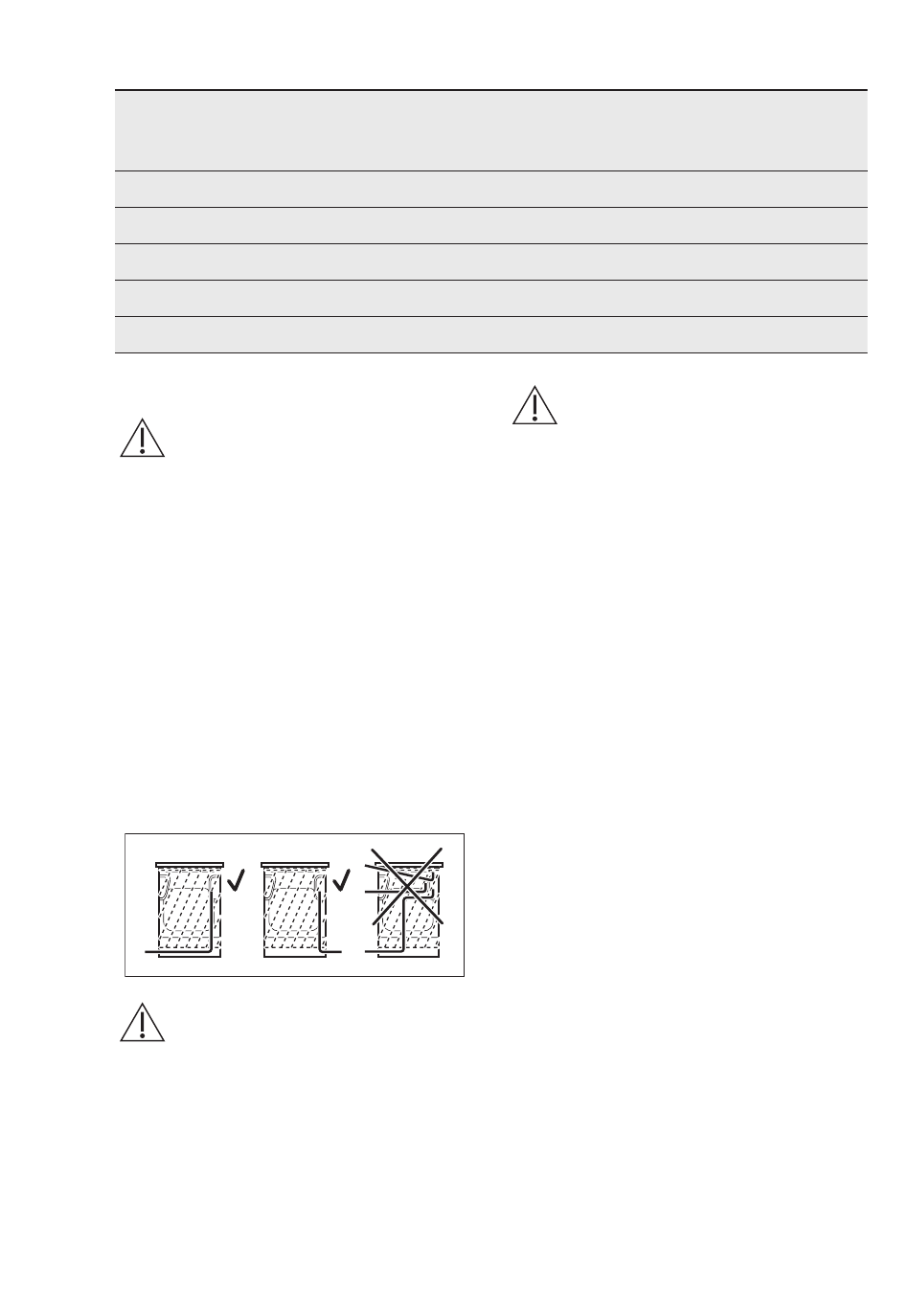

WARNING!
The gas connection pipe
must not touch the part of
the appliance shown in the
illustration.
NORMAL
REDUCED POW‐
POWER kW
2.6
1.6
0.85
1.8
1.65
INJECTOR
ER kW
MARK 1/100
mm
0.63
0.38
0.31
0.78
-
WARNING!
When installation is
complete, make sure that
the seal of each pipe fitting
does not leak. To check the
seal use a soap solution, not
a flame.
3.10 Flexible nonmetal pipes
connection
If you have an easy access to the
connection, you can use a flexible pipe.
The flexible pipe must be tightly attached
by clamps.
In installation always use the pipe holder
and the gasket. The flexible pipe can be
applied when:
• it can not get hotter than room
temperature, higher than 30 °C,
• it is not longer than 1500 mm,
• it has no narrowing anywhere,
• it is not twisted or tighten,
• it does not get in touch with sharp
edges or corners,
• it's conditions can be easily checked.
When checking the flexible pipe make
sure:
• it does not show cracks, cuts, marks
of burnings on the two ends and on its
full length,
• the material is not hardened, but
shows its correct elasticity,
• the fastening clamps are not rusted,
• expired term is not due.
If one or more defects are visible, do not
repair the pipe, but replace it.
NOMINAL GAS
FLOW g/h
88
186
71
114
50
61
71
129
71
118
