DORIC VENTUS LouvreLoc Installation Manual

3
2
1

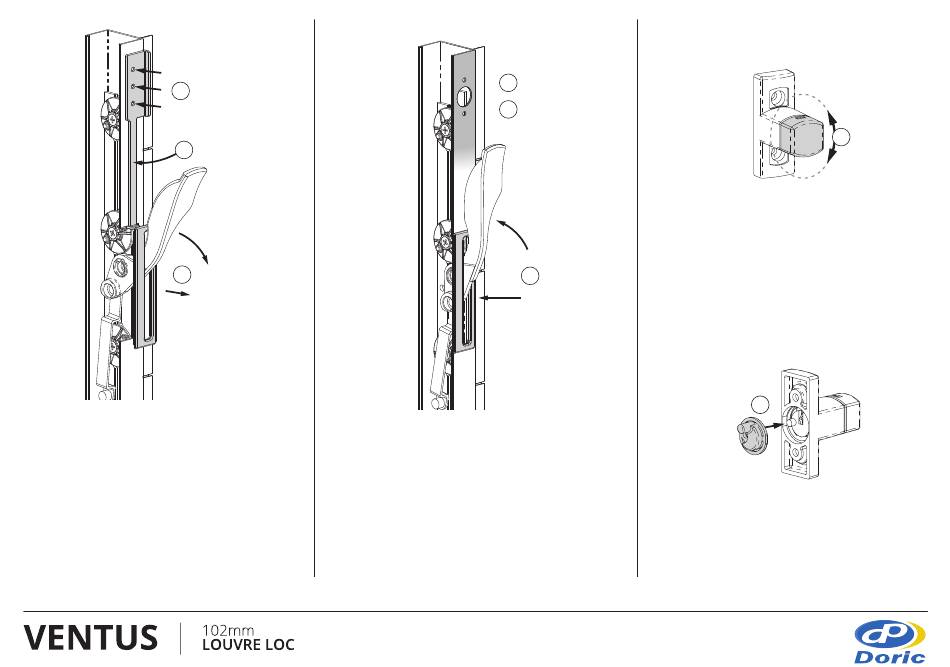

1.
Pull the Handle Lever enough to
remove Handle Trim from the channel
yet keeping the Louvre Blades closed
2.
Place the Template on the front edge
of the Gallery and ensure the hook is
pressed hard up against the top of the
Handle Cutout
3.
Mark out the three hole locations
and drill to 3.5mm
4
5
6
4.
Enlarge the centre hole to 16mm
5.
Remove any burs or swarf
6.
Re-install the Handle Trim and
close the Gallery
INSTALLATION GUIDE INSTALLATION GUIDE
7.
While holding the Housing, rotate
the Snib Key until it stops.
Clockwise for Left-Hand side installs.
Counter-clockwise for Right-Hand side
installs.
8
8.
Install the Cam into the
rear of the Housing
