WM-8710BNSIP WIFI Module Manual
1 G ener al I nf or m at i on
category
Drawing Number
Model
Environmental
requirements
Number
Electrostatic level
Certification number FCC ID:2ARD9-501
2 Technical information
The scheme is based on RTL8710BN（W302）and uses few peripheral components to realize
the conversion from UART to WiFi signal。

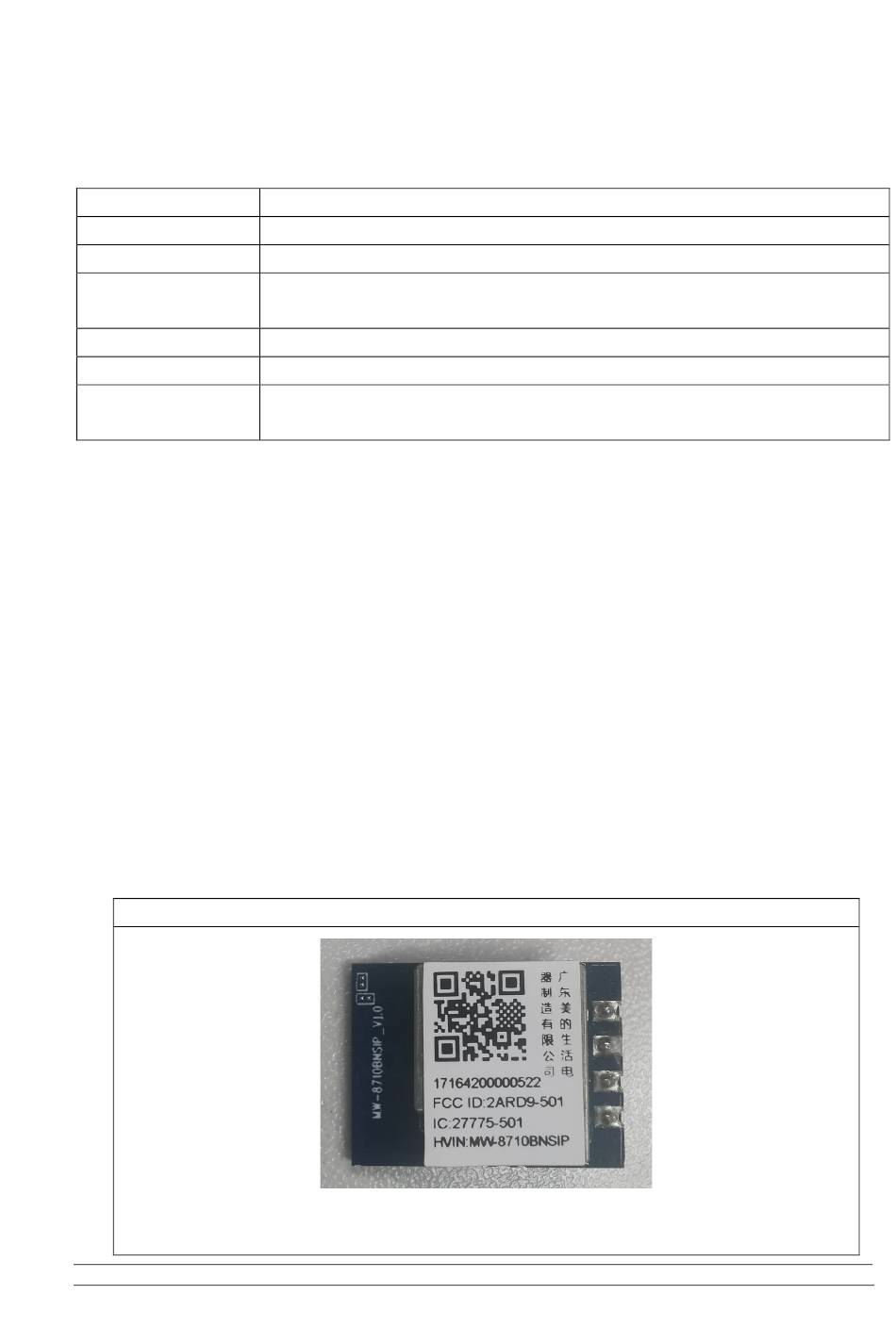

2. 1 Appearance
Front view of module
WIFI Module
MW-8710BNSIP
MW-8710BNSIP
RoHS，REACH
17164200000522
Contact discharge+/-4KV，Air discharge +/-8KV
IC :27775-501
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea WM-8710BNSIP
Summary of Contents for Midea WM-8710BNSIP
- Page 1 WM-8710BNSIP WIFI Module Manual 1 G ener al I nf or m at i on category WIFI Module Drawing Number MW-8710BNSIP Model MW-8710BNSIP Environmental RoHS，REACH requirements 17164200000522 Number Electrostatic level Contact discharge+/-4KV，Air discharge +/-8KV Certification number FCC ID:2ARD9-501 IC :27775-501 2 Technical information The scheme is based on RTL8710BN（W302）and uses few peripheral components to realize...
- Page 2 Product back view 2. 2 D i m ens i on definition Length Width Thickness dimension（mm） error（mm） ±0.2 ±0.2 ±0.2 PIN length 3.6mm±0.2mm 2. 3 PI N nam e WiFi module pin description Pin No. VCC：Power supply pin RXD：Signal receiving pin TXD：Signal transmitting pin GND：System ground PIN 2.
- Page 3 2. 5 Parameters performance parameter technical requirement Note RTL8710BN（W302） Operating frequency 2412 - 2462 MHz Supported WiFi standards 802.11b/g/n(1T1R) 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) modulation mode 802.11n HT20: OFDM (64QAM, 16QAM, QPSK, BPSK) 802.11n HT40: OFDM (64QAM, 16QAM, QPSK, BPSK) 11b: 1, 2, 5.5 和...
- Page 4 Specification IEEE802.11b Mode DSSS / CCK Channel CH1 to CH13 Data rate 1, 2, 5.5, 11Mbps DC Characteristics Min. Typ. Max. 单位 备注 1.DC current (Average) @5.0V input 1) TX only @17dBm 2) TX throughput mode 3) RX throughput mode TX Characteristics Min.
- Page 5 1) 6Mbps 2) 9Mbps 3) 12Mbps 4) 18Mbps 5) 24Mbps 6) 36Mbps 7) 48Mbps 8) 54Mbps 5 Frequency Error RX Characteristics Min. Typ. Max. Unit 6 Minimum Input Level Sensitivity 1) 6Mbps (PER ≦ 10%) 2) 9Mbps (PER ≦ 10%) 3) 12Mbps (PER ≦...
- Page 6 3) MCS2 4) MCS3 5) MCS4 6) MCS5 7) MCS6 8) MCS7 5. Frequency Error RX Characteristics Min. Typ. Max. Unit 6. Minimum Input Level Sensitivity 1) MCS0 (PER ≦ 10%) 2) MCS1 (PER ≦ 10%) 3) MCS2 (PER ≦ 10%) 4) MCS3 (PER ≦...
-
Page 7: Fcc Statement
5) MCS4 6) MCS5 7) MCS6 8) MCS7 5. Frequency Error RX Characteristics Min. Typ. Max. Unit 6. Minimum Input Level Sensitivity 1) MCS0 (PER ≦ 10%) 2) MCS1 (PER ≦ 10%) 3) MCS2 (PER ≦ 10%) 4) MCS3 (PER ≦ 10%) 5) MCS4 (PER ≦... -
Page 8: Canada Statement
another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID: 2ARD9-501” any similar wording that expresses the same meaning may be used. - Page 9 brouillage est susceptible d’en compromettre le fonctionnement. Please notice that if the ISED certification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.
- Page 10 emission etc. according to FCC Part 15C: 15.247 and 15.209 & 15.207, 15B class B requirement, only if the test result comply with FCC part 15C: 15.247 and 15.209 & 15.207, 15B class B requirement. Then the host can be sold legally. This modular transmitter is only FCC authorized for the specific rule parts ( 47CFR Part 15.247) listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification.
