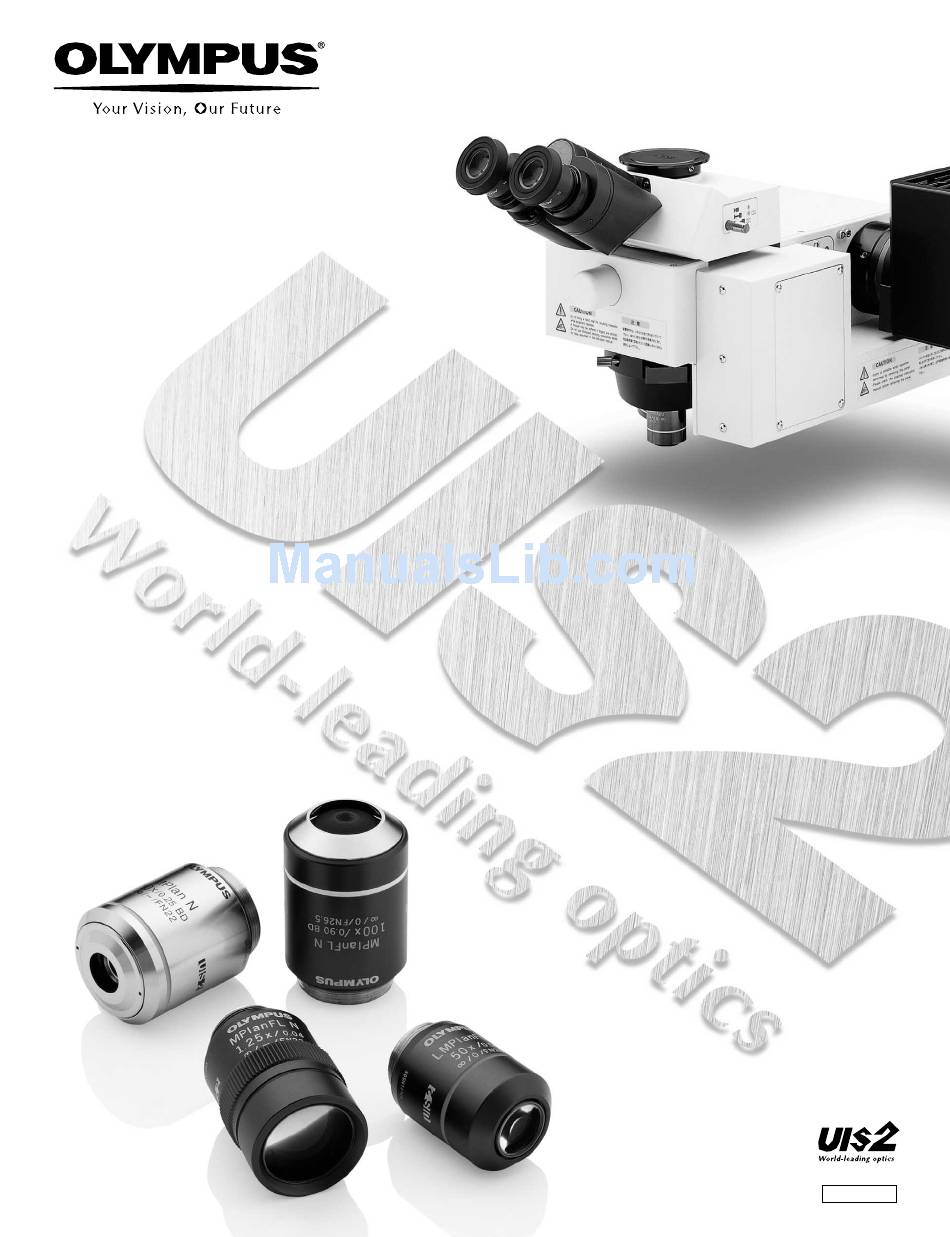

- Page 1 MICROSCOPE COMPONENTS GUIDE Choosing The Ideal UIS2 Optics Components For Your Equipment 2 0 0 6 - 1 1...
- Page 2 The wide range of Olympus components introduced here allows users in such diverse fields as research, inspection and production to take advantage of the quality, flexibility and outstanding optical performance of the UIS2 Optical System. That's why installing Olympus microscope components is,...
-
Page 3: Table Of Contents
Long WD M Plan SemiApochromat BD LMPLFLN-BD series --------------------------16 M Plan Achromat BD MPLN-BD series ------------------------------17 M Plan Apochromat BD MPlanApo-BD --------------------------------18 MICROSCOPE SYSTEM BXFM ---------------------------------------------- 19 — 22 BXFM frame BXFM-F -------------------------------------- 19 BXFM BXFM-F+BXFM-ILH+BXFM-ILHSPU---------- 20 BXFM-S BXFM-F+BXFM-ILHS ------------------------ 21... -
Page 4: Welcome To Uis2/Uis Optics
As thousands of users have found by experience, these advantages are crucial to composing the ideal microscope optical system. What's more, it is even possible to freely insert or remove intermediate attachments in the parallel rays of... - Page 5 UIS2/UIS-featured Olympus microscope units for all your high-precision needs in research, inspection and production equipment. * Refer to the Olympus home page for detailed objective lenses specifications.
-
Page 6: System Diagram
BXFM SYSTEM DIAGRAM Video system Video camera C-mount U-CMAD3 U-TV0.25xC U-TV0.35xC-2 Observation/single tubes and eyepieces Eyepieces Widefield trinocular observation tubes Illumination systems and power supply U-AN360-3 U-AN U-PO3 U-AN360IR U-POIR SHUTTER SHUTTER SHUTTER BX-RLA2 BX-URA2 Focusing units BXFM-ILH BXFM-ILHSPU Stands SZ-STL SYSTEM DIAGRAM Video camera... - Page 7 MOTORIZED UNIT SYSTEM DIAGRAM Observation tubes (Refer to pages 29-30) U-AN Intermediate tubes U-AN360-3 (Refer to pages 31-32) U-PO3 U-POTP3 U-25ND6, Mirror units U-25ND25 U-25LBD U-25IF550 U-25L42 U-25FR U-DICR U-D6REMC U-DICRH U-D5BDREMC U-DICRHC * BX-REMCB is also available for BX-RLAA + motorized revolving nosepiece control (refer to page 39) BXFM-A SYSTEM DIAGRAM Video system (Refer to pages 37-38)
-

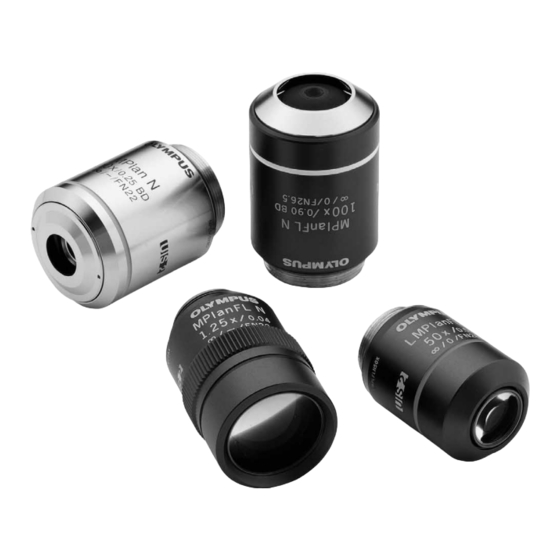

Page 8: Uis2/Uis Objective Lenses
UIS2/UIS OBJECTIVE LENSES Meaning of abbreviations shown on objective lens M P L Metallurgical (no cover) PL: Plan/ Corrects field Long working distance curvature of metallurgical use the periphery of SLM: Super long working the image plane distance metallurgical use Observation through substrate Objective lens notation... -
Page 9: M Plan Semiapochromat
M Plan SemiApochromat MPLFLN series Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration. The lineup consists of 7 objective lenses ranging from 1.25x to 100x, and secures a W.D. of 1mm or longer. Since the exit pupil position of the 5x-100x objective lenses is standardized, the position of the DIC prism does not have to be switched when changing the magnification. -
Page 10: Long Wd M Plan Semiapochromat Lmplfln Series
Long WD M Plan SemiApochromat LMPLFLN series Long working distance Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration. Suitable with samples having a height difference and in preventing collision, as the working distance is long. Also, since the exit pupil position of the 5x-100x objective lenses is standardized, the position of the DIC prism does not have to be switched when changing the magnification. -
Page 11: M Plan Achromat
M Plan Achromat MPLN series Plan Achromat objective lenses providing excellent image flatness up to F.N. 22. MPLN5x ø20.32 ø21 ø24 MPLN50x ø20.32 ø6 ø11.9 ø15.8 ø24 UIS2 objective lenses Objective lens Numerical Working distance (magnification) Aperture MPLN 0.10 MPLN 0.25 MPLN 0.40... -
Page 12: Lcd Long Wd M Plan Semiapochromat
LCD Long WD M Plan SemiApochromat LCPLFLN-LCD series Perfect objective lens series for observation of LCD panels and other samples through a glass substrate. Aberration correction matched to the glass thickness is accomplished using a correction ring. LCPLFLN20xLCD*** ø20.32 ø15 ø25 ø29.5 ø31... -
Page 13: M Plan Apochromat
M Plan Apochromat MPlanApo series Highest class Plan Apochromat objective lens that maximize performance in brightfield observation. All aberrations are corrected at the highest level, while providing high N.A. MPlanApo20x ø20.32 ø5.6 ø16.5 ø20 ø28 UIS objective lenses Objective lens Numerical Working distance (magnification) -
Page 14: Ir Long Wd M Plan Semiapochromat
IR Long WD M Plan SemiApochromat/IR M Plan SemiApochromat LMPlan-IR series/MPlan-IR IR objective lenses which compensate for aberrations from visible to near infrared light. Ideal for the observations of semiconductor interiors and the back surface of a chip package as well as CSP bump inspection. LMPlan5xIR ø20.32 ø21... -
Page 15: M Plan Semiapochromat Bd
M Plan SemiApochromat BD MPLFLN-BD series Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration. The series secures a W.D. of 1mm or longer. Since the exit pupil position of the 5x-150x objective lenses is standardized, the position of the DIC prism does not have to be switched when changing the magnification. MPLFLN5xBD ø26 ø16... -
Page 16: M Plan Semiapochromat Bdp
M Plan SemiApochromat BDP MPLFLN-BDP series Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration. The series secures a W.D. of 1mm or longer. Since the exit pupil position of the 5x-100x objective lenses is standardized, the position of the DIC prism does not have to be switched when changing the magnification. -
Page 17: Long Wd M Plan Semiapochromat Bd
Long WD M Plan SemiApochromat BD LMPLFLN-BD series Long working distance Plan SemiApochromat objective lenses, giving high-level correction for chromatic aberration. Suitable with samples having a height difference and in preventing collision, as the working distance is long. Also, since the exit pupil position of the 5x-100x objective lenses is standardized, the position of the DIC prism does not have to be switched when changing the magnification. -
Page 18: M Plan Achromat Bd
M Plan Achromat BD MPLN-BD series Plan Achromat objective lenses providing excellent image flatness up to F.N. 22. MPLN5xBD ø26 ø16 ø29.3 ø30.5 ø32 MPLN50xBD ø26 ø10 ø20.7 ø23.1 ø29 ø32 UIS2 objective lenses Objective lens Numerical Working distance (magnification) Aperture MPLN 5xBD 0.10... -
Page 19: M Plan Apochromat Bd
M Plan Apochromat BD MPlanApo-BD Highest class Plan Apochromat objective lens that maximize performance in brightfield and darkfield observations. All aberrations are corrected at the highest level, while providing high N.A. UIS objective lenses Objective lens Numerical Working distance (magnification) Aperture (mm) MPlanApo100xBD... -
Page 20: Microscope System Bxfm
MICROSCOPE SYSTEM BXFM BXFM frame BXFM-F Widely used system that allows use in combination with fiber illumination, motorized revolving nosepiece and telan lens unit. Can easily be integrated into other equipment. Attach to the equipment by rear bolt mounting screw or pillar mounting hole. -
Page 21: Bxfm
MICROSCOPE SYSTEM BXFM BXFM BXFM-F+BXFM-ILH+BXFM-ILHSPU Accommodates the reflected light brightfield/darkfield and fluorescence illuminators. Revolving nosepiece mounting position Objective lens mounting position Specimen position BXFM combination sample BXFM-F+BXFM-ILH+BXFM-ILHSPU+TR30-2+BX-RLA2+U-LH100L-3 * For installation dimensions, refer to those for the BXFM-F (page 19). Light axis... -
Page 22: Bxfm-S
MICROSCOPE SYSTEM BXFM BXFM-S BXFM-F+BXFM-ILHS Compact focusing unit suitable for building into existing equipment. BXFM-S combination sample BXFM-F+BXFM-ILHS+TR30-2+U-KMAS+U-LH100L-3 ø32 19-49 (Stroke) * For installation dimensions, refer to those for the BXFM-F (page 19). Pillar axis Holder mounting position Light axis... -
Page 23: Compact Stand
MICROSCOPE SYSTEM BXFM Stands A wide variety of stands are available to suit different applications and purposes. Universal stand type 2 214~435 Ø32 * The rotation angle of the horizontal arm can restrict to 90 degrees with stopper. U-ST Compact stand ø32... -
Page 24: Illumination Units
Reflected light illuminator for BF/DF BX-RLA2 ND filters are linked when exchanging between brightfield and darkfield. Accessories Unit name Description Weight (g) U-25LBD LBD filter slider U-25IF550 IF550 filter slider U-25ND6 ND filter U-25ND25 ND filter U-25FR Frost filter slider U-25L42 UV-cut filter U-PO3... -
Page 25: Reflected Light Illuminators For Bf Bx-Kma/Bx-Kma-Esd
Reflected light illuminators for BF BX-KMA/BX-KMA-ESD Enables brightfield, Nomarski DIC and simple polarizing observations. ESD model is also available. Accessories Unit name Description Weight (g) U-25LBD LBD filter slider U-25IF550 IF550 filter slider U-25ND6 ND filter U-25ND25 ND filter U-25FR Frost filter slider U-25L42 UV-cut filter... -
Page 26: Reflected Light Illuminator For Bf
LAMP HOUSING & ACCESSORIES Reflected light illuminator for BF U-KMAS Very compact reflected light illuminator with reduced depth. Accessories Unit name Description Weight (g) U-25LBD LBD filter slider U-25IF550 IF550 filter slider U-25ND6 ND filter U-25ND25 ND filter U-25FR Frost filter slider U-25L42 UV-cut filter U-PO3... -
Page 27: 75W Xenon Apo Lamp Housing
AH2-RX-T: dimensions 120(W)x290(D)x186(H), weight approx. 4kg/ U-RX-T200 (for EU countries): dimensions 115(W)x195(D)x260(H), weight approx. 3kg Note: Supplied by Olympus Life and Material Science Europa GmbH and its business partners. * External power supply (TH4-100 or TH4-200) and power cable (UYCP) are necessary for 100W halogen lamp housings. -
Page 28: External Power Supply
For the 100W halogen lamp, the external power supply TH4-100/200 with an intensity adjustment switch and an ON/OFF switch, both are located close to the operator's hand, are provided. All Olympus reflected light illuminators can be used with fiber illumination. -
Page 29: Light Source
LAMP HOUSING & ACCESSORIES LG-PS2* Light source LG-SF Light guide Groove: Width3, Depth1 1,000 U-DULHA Double lamp house adapter *The types of model varies by country in use. Weight: 1.6kg Weight: 210g Weight: 1.2kg Unit: mm Unit: mm... -
Page 30: Observation Tubes
Widefield trinocular observation tubes Trinocular observation tubes with widefield of view. Compatible with F.N. 22. U-TR30-2/ Widefield binocular tube U-TR30IR Widefield binocular tube for IR 60.6 150.5 186.6 (IR: 188.9) Inclination angle Field Number Name (F.N.) U-TR30-2 U-TR30IR U-ETR-4 *Length marked with an asterisk (*) may vary according to interpupillary distance. The distance for figure shown is 62mm. Single port tube with lens When the visual observation is not needed and only video observation is required, a single port tube with a built-in telan lens can be attached directly to the video port. -
Page 31: Super Widefield Trinocular Tube
Super widefield trinocular observation tubes Trinocular observation tubes with super widefield of view. Compatible with F.N. 26.5. U-SWTR-3 Super widefield trinocular tube 68.6 173.8 220.8 Field Number Inclination angle Name (F.N.) U-SWTR-3 26.5 U-SWETR 26.5 MX-SWETTR 26.5 *Length marked with an asterisk (*) may vary according to interpupillary distance. The distance for figure shown is 62mm. OBSERVATION TUBES Super widefield erect image trinocular tube 49.9... -
Page 32: Intermediate Tubes & Accessories
INTERMEDIATE TUBES & ACCESSORIES Intermediate tubes Various accessories for various observation need. U-CA U-ECA Magnification changer Magnification changer 2x Provides 1x, 1.2x, 1.6x and 2x intermediate magnifications. Provides 1x and 2x intermediate magnifications. ø75 Weight: 1.3kg ø70 Weight: 1.3kg U-TRU Trinocular intermediate attachment Intermediate attachment which divides the light path, allowing attachment of both digital and video cameras. -
Page 33: Dual Port 1X
INTERMEDIATE TUBES & ACCESSORIES U-DP Dual port Use this intermediate tube to divide the light path. 51(mount face) Light path selector by mirror unit Transmitted side port: side port = 100:0 Transmitted side port: side port = 70:30 (with use of U-MBF3) U-EPA2 Eyepoint adjuster Raises eyepoint by 30mm. -
Page 34: Eyepieces/Filar Micrometer Eyepiece
EYEPIECES/FILAR MICROMETER EYEPIECE Eyepieces Eyepieces for UIS2 optical system. WHN10x Widefield eyepiece CROSSWHN10x Widefield eyepieces ø41 ø38.5 ø30 Diopter Field Micrometer Name adjustment range Number diameter (mm) (1/m) WHN10x — WHN10x-H -8 — +5 CROSSWHN10x -8 — +5 WH15x — SWH10x-H 26.5 -8 —... -
Page 35: Revolving Nosepieces
REVOLVING NOSEPIECES Revolving nosepieces for BF objective lenses Choose from following 6 types. For motorized nosepieces, refer to motorized unit page. U-5RE-2 Quintuple revolving nosepiece Sextuple revolving nosepiece with slider slot for DIC Sextuple revolving nosepiece with slider slot for DIC (87.4) 26.5 60.9... -
Page 36: U-5Bdre
Revolving nosepieces for BF/DF objective lenses Choose from following 3 types. Use of adapter to mount BF objectives (BD-M-AD) enables attachment of brightfield objective lenses. For motorized nosepieces, refer to motorized unit page. U-5BDRE Quintuple revolving nosepiece for BF/DF (111.2) 34.8 76.4 Weight: 800g... -
Page 37: Video Camera Adapters
VIDEO CAMERA ADAPTERS C-mount video camera ports Allows direct attachment of a C mount video camera. Four types are provided: 0.63x, 0.5x, 0.35x and 0.25x. All models feature a focus adjustment function U-TV0.25xC C-mount video port with 0.25x lens Image plane ø36 ø60 ø64... -
Page 38: U-Cmad3, U-Bmad, U-Smad, U-Tmad, U-Fmt
VIDEO CAMERA ADAPTERS Video camera mount adapters Allows attachment to video cameras with C, Bayonet, Sony and F mounts. Use with the U-TV1x-2. Focus by amount of screwing into U-TV1x-2. U-CMAD3 C-mount adapter ø44.5 ø30 1-32UN Image plane M56X2 ø64.4 Weight: 165g U-TMAD T mount adapter... -
Page 39: Motorized Units
Motorized units Various motorized units, perfect for automation of equipment, are available. Motorized BF/DF reflected light illuminator+motorized Nomarski DIC sextuple revolving nosepiece+100W halogen lamp housing Enables motorized exchange of objective lenses, selection between brightfield and darkfield observations as well as aperture diaphragm closing/opening. -
Page 40: U-D5Bdremc
Motorized quintuple BD revolving nosepiece with slider slot for DIC Motorized sextuple revolving nosepiece with slider slot for DIC Motorized centerable quintuple revolving nosepiece with slider slot for DIC BX-UCB Control unit Motorized units including motorized illuminator and auto focus unit can be totally controlled from BX-UCB Weight: 1.0kg * Extension cord U-RMT (1700mm) should be used to connect the lamp housing (U-LH100-3) to the BX-UCB. -
Page 41: U-Afa1M
Active auto focus unit 312.5 147.5 62.5 U-FWR Motorized reflected filter wheel Accomplish maximum 6 filter position exchange 180.5 147.9 Weight: 1.0kg 2000 Cable length: 2000mm Weight: 3.3kg 14.8 58.4 * Consult your Olympus dealer about the motorized focus. Unit: mm... -
Page 42: Bxfma-F
A motorized microscope unit for integration with your equipment. Motorized operations such as revolving nosepiece up/down, objective lens switching, aperture diaphragm open/close, and brightfield/darkfield switching are accomplished with this component. Several microscopic operations are totally controlled from an external unit by combining this component with an auto focus unit. -
Page 43: Deep Ultraviolet Observation System
DEEP ULTRAVIOLET OBSERVATION SYSTEM Deep ultraviolet observation system This module adds a deep ultraviolet (248nm) optical system to a general microscope. An ultra-high resolution observation is executed by using an extremely short wavelength ray. U-UVF248IM UV248 compatible intermediate tube 105.8 258.5... -
Page 44: Optical Terminology
1. Field Number (F.N.) and Practical Field of View The field number (F.N.) is referred to as the diaphragm size of eyepiece in mm unit which defines the image area of specimen. The diaphragm diameter actually seen through eyepiece is known as the practical field of view (F.O.V.) which is determined by the formula: Eyepiece F.N. - Page 45 : Angle which is made by the optical axis and refraction of the light farthest from the center of the lens. The visual field brightness (B) of the microscope is determined by the following formula in relation to the objective lens magnification (M).
- Page 46 9. Aberrations A difference between an ideal image and an actual image that passes through an optical system is called an “aberration.” 9.1 Requirements for Ideal Image Formation The following three requirements must be satisfied to form an image with no aberration, or an ideal image. (i) All the light rays coming from a single point and passing through an image formation optical system converge on a single point.
- Page 47 9.3 Wavefront Aberration Since a long time ago, aberrations have been used in “geometric optics,” which considers light as “light rays.” Microscope optical systems are often used for observation of very small specimens at a wavelength level, and sometimes adopt “wave optics,”...
- Page 48 OLYMPUS CORPORATION has obtained ISO9001/14001. Specifications are subject to change without any obligation on the part of the manufacturer. Printed in Japan M1606E-1106B...
