Enerpac ECCE32 Instruction Sheet

POWERFUL SOLUTIONS. GLOBAL FORCE.
L4318 Rev. E 07/20
INDEX
1.0 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2.0 PRODUCT DATA . . . . . . . . . . . . . . . . . . . . . . 6
3.0 CONFORMANCE TO NATIONAL AND
INTERNATIONAL STANDARDS . . . . . . . . . . . 7
4.0 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . 7
5.0 RECEIVING INSTRUCTIONS . . . . . . . . . . . . . 7
6.0 SET-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7.0 POWER REQUIREMENTS . . . . . . . . . . . . . . . 8
8.0 MAJOR FEATURES AND COMPONENTS . . 8
9.0 CUTTER OPERATION . . . . . . . . . . . . . . . . . 10
10.0 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . 13
11.0 CLEANING THE PISTON AREA . . . . . . . . . 20
12.0 STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . 20
13.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . 20

1.0 SAFETY

1.1 Introduction
Read all instructions carefully. Follow all recommended
safety precautions to avoid personal injury as well
as damage to the product and/or damage to other
property. Enerpac cannot be responsible for any
damage or injury from unsafe use, lack of maintenance
or incorrect operation. Do not remove warning labels,
tags, or decals. In the event any questions or concerns
arise, contact Enerpac or a local Enerpac distributor for
clarification.
If you have never been trained on high-pressure hydraulic
tool safety, consult your distributor or service center for
information about an Enerpac hydraulic safety course.
This manual follows a system of safety alert symbols,
signal words and safety messages to warn the user of
specific hazards. Failure to comply with these warnings
could result in death or serious personal injury, as well
as damage to the equipment or other property.
The Safety Alert Symbol appears throughout
this manual. It is used to alert you to
potential physical injury hazards. Pay close
attention to Safety Alert Symbols and obey
all safety messages that follow this symbol to avoid the
possibility of death or serious personal injury.
Safety Alert Symbols are used in conjunction with certain
Signal Words that call attention to safety messages or
EN
Instruction Sheet

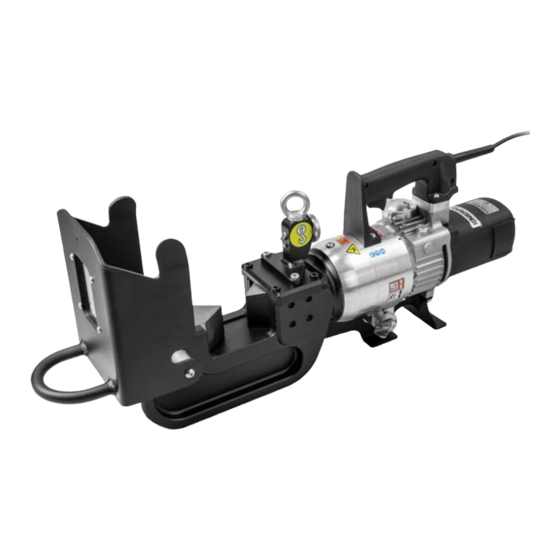

Chain Cutter
Model ECCE32
property damage messages and designate a degree or
level of hazard seriousness. The Signal Words used in
this manual are DANGER, WARNING, CAUTION and
NOTICE.
Indicates a hazardous situation that,
DANGER
NOTICE:
if not avoided, will result in death or
serious personal injury
Indicates a hazardous situation that,
WARNING
NOTICE:
if not avoided, could result in death
or serious personal injury.
Indicates a hazardous situation that,
CAUTION
NOTICE:
if not avoided, could result in minor
or moderate personal injury.
Indicates
NOTICE
important, but not hazard related
(e.g. messages relating to property
damage). Please note that the Safety
Alert symbol will not be used with this
signal word.
1.2 Hydraulic Cutter Safety Precautions
Failure to observe and comply with the
WARNING
NOTICE:
following precautions and instructions may result in
death or serious personal injury. Property damage
could also occur.
• Read and completely
precautions and instructions in this manual. Always
follow all safety precautions and instructions,
including those that are contained within the
procedures of this manual.
• Read this manual before operating the cutter, or
before performing any adjustments, inspections,
maintenance or repairs.
• Follow all instructions and heed all precautions
stated in this manual.
information considered
understand the safety
1
