CTS CVT-RACK-16 User Manual

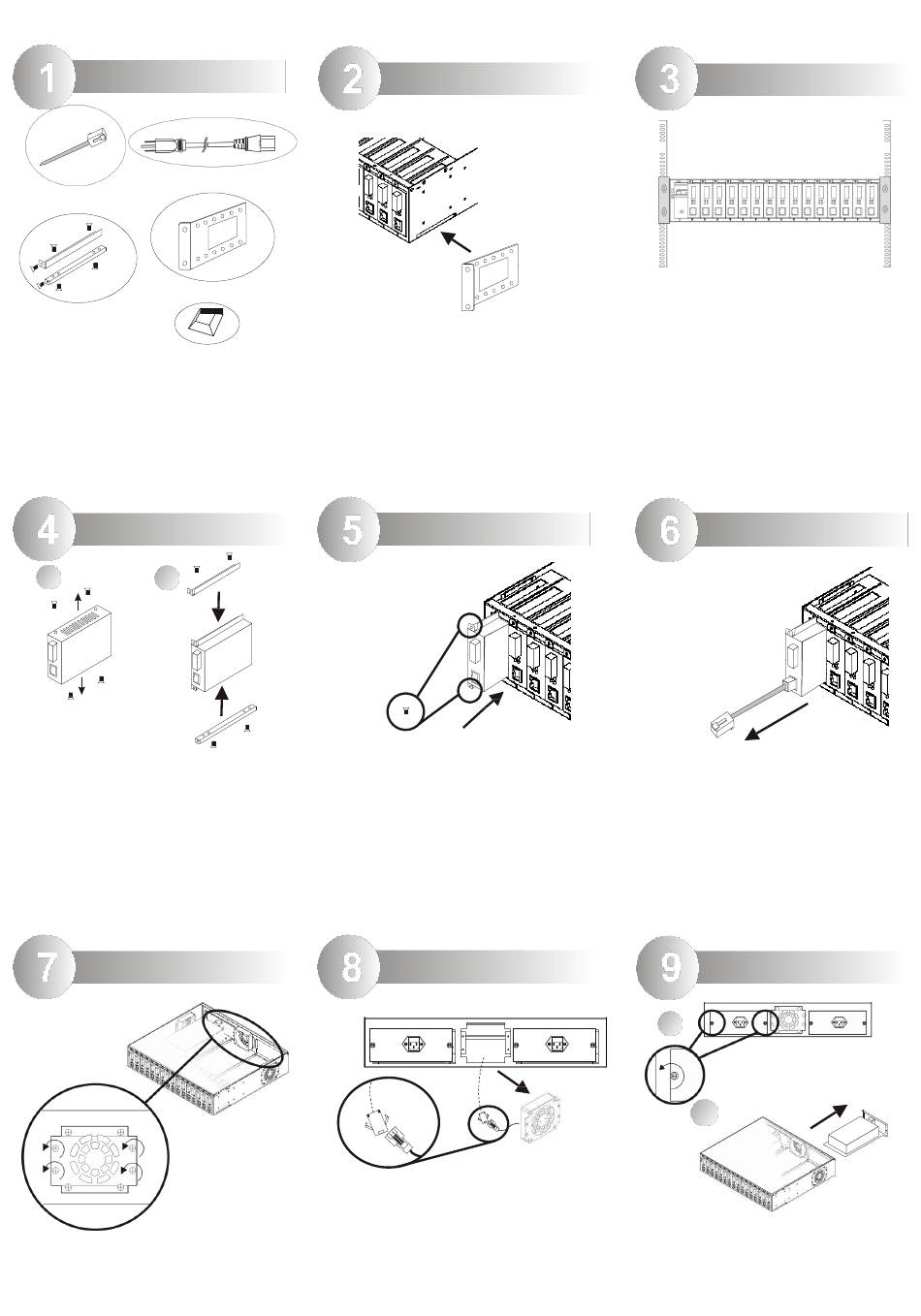

INSTALLATION AUXILIARY FIGURES
Accessories
Power cord x 1
Pulling cable x 1
Mount ear x 2
Slider set x 16
Rubber pedestal x 4
Upper and lower slider of
media converter
1 2
When installing the media converter to the Chassis,
please attach two sliders to the media converter first.
1. Take off 4 screws from the media converter.
2. Fasten two sliders with screws in top and
bottom locations.
Note:
1. For recent media converters, there are 4 reserved screw holes on
laterals or sliders.
2. If your media converters are older versions, please unscrew
first (Refer to Point 1).
3. If your media converters already have reserved lateral holes,
please fasten the sliders directly (Refer to Point 2).
Top view with fan location
Unfasten four screws for fan replacement.
Mount ear
Take screws off to remove mount ear
Slide in
Push the media converter into the Chassis and
fasten screws on the slider of media converter.
Fan replacement
A C 1 0 0 - 2 4 0 V
1.Take the fan out from CVT-RACK-16, then
pull power jacket off.
2. Replace a new fan, then put power jacket back.
3. Push the new fan back to CVT-RACK-16.
4. Fasten four screws.
Mount rack
Fasten screws in rack to fix CVT-RACK-16
Slide out with pulling
cable
Pull out the media converter with the pulling
cable.
Power replacement
1
A C 1 0 0 - 2 4 0 V
2
Remove screws from two sides of power
supply then pull power supply out.
AC 1 00 -2 4 0 V AC 1 00 -2 4 0 V
