Erco Pollux Quick Start Manual

E ERCO GmbH
Postfach 24 60
58505 Lüdenscheid
Brockhauser Weg 80-82
58507 Lüdenscheid
Germany
Tel.: +49 2351 551 0
Fax: +49 2351 551 300
info@erco.com
www.erco.com

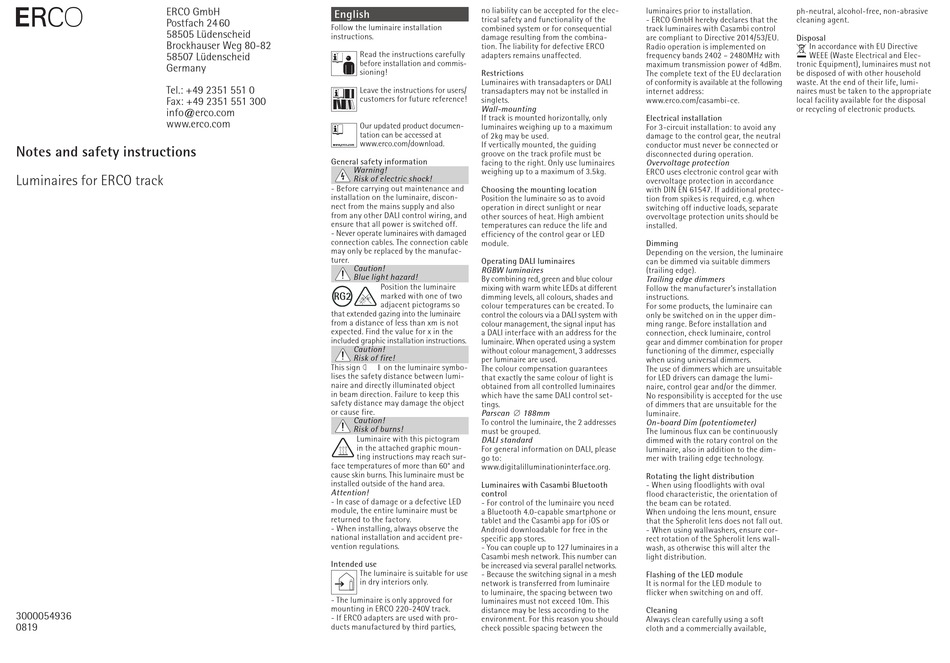

Notes and safety instructions

Luminaires for ERCO track
3000054936
0819
no liability can be accepted for the elec-
English
trical safety and functionality of the
Follow the luminaire installation
combined system or for consequential
instructions.
damage resulting from the combina-
tion. The liability for defective ERCO
Read the instructions carefully
adapters remains unaffected.
before installation and commis-
sioning!

Restrictions

Luminaires with transadapters or DALI
Leave the instructions for users/
transadapters may not be installed in
customers for future reference!
singlets.

Wall-mounting

If track is mounted horizontally, only
Our updated product documen-
luminaires weighing up to a maximum
tation can be accessed at
of 2kg may be used.
www.erco.com/download.
If vertically mounted, the guiding
groove on the track profile must be
General safety information
facing to the right. Only use luminaires
Warning!
weighing up to a maximum of 3.5kg.
Risk of electric shock!
- Before carrying out maintenance and

Choosing the mounting location

installation on the luminaire, discon-
Position the luminaire so as to avoid
nect from the mains supply and also
operation in direct sunlight or near
from any other DALI control wiring, and
other sources of heat. High ambient
ensure that all power is switched off.
temperatures can reduce the life and
- Never operate luminaires with damaged
efficiency of the control gear or LED
connection cables. The connection cable
module.
may only be replaced by the manufac-
turer.

Operating DALI luminaires

Caution!

RGBW luminaires

Blue light hazard!
By combining red, green and blue colour
Position the luminaire
mixing with warm white LEDs at different
RG2 marked with one of two
dimming levels, all colours, shades and
adjacent pictograms so
colour temperatures can be created. To
that extended gazing into the luminaire
control the colours via a DALI system with
from a distance of less than xm is not
colour management, the signal input has
expected. Find the value for x in the
a DALI interface with an address for the
included graphic installation instructions.
luminaire. When operated using a system
Caution!
without colour management, 3 addresses
Risk of fire!
per luminaire are used.
This sign w on the luminaire symbo-
The colour compensation guarantees
li ses the safety distance between lumi-
that exactly the same colour of light is
naire and directly illuminated object
obtained from all controlled luminaires
in beam direction. Failure to keep this
which have the same DALI control set-
safety distance may damage the object
tings.
or cause fire.
Parscan ∅ 188mm
Caution!
To control the luminaire, the 2 addresses
Risk of burns!
must be grouped.
Luminaire with this pictogram
DALI standard
in the attached graphic moun-
For general information on DALI, please
ting instructions may reach sur-
go to:
face temperatures of more than 60° and
www.digitalilluminationinterface.org.
cause skin burns. This luminaire must be
installed outside of the hand area.
Luminaires with Casambi Bluetooth
Attention!
control
- In case of damage or a defective LED
- For control of the luminaire you need
module, the entire luminaire must be
a Bluetooth 4.0-capable smartphone or
returned to the factory.
tablet and the Casambi app for iOS or
- When installing, always observe the
Android downloadable for free in the
national installation and accident pre-
specific app stores.
vention regulations.
- You can couple up to 127 luminaires in a
Casambi mesh network. This number can

Intended use

be increased via several parallel networks.
The luminaire is suitable for use
- Because the switching signal in a mesh
in dry interiors only.
network is transferred from luminaire
to luminaire, the spacing between two
- The luminaire is only approved for
luminaires must not exceed 10m. This
mounting in ERCO 220-240V track.
distance may be less according to the
- If ERCO adapters are used with pro-
environment. For this reason you should
ducts manufactured by third parties,
check possible spacing between the
lumi naires prior to installation. ph-neutral, alcohol-free, non-abrasive
- ERCO GmbH hereby declares that the cleaning agent.
track luminaires with Casambi control
are compliant to Directive 2014/53/EU.
Disposal
In accordance with EU Directive
Radio operation is implemented on
WEEE (Waste Electrical and Elec-
frequency bands 2402 – 2480MHz with
maximum transmission power of 4dBm. tronic Equipment), luminaires must not
The complete text of the EU declaration be disposed of with other household
of conformity is available at the following waste. At the end of their life, lumi-
internet address: naires must be taken to the appropriate
www.erco.com/casambi-ce. local facility available for the disposal
or recycling of electronic products.

Electrical installation

For 3-circuit installation: to avoid any
damage to the control gear, the neutral
conductor must never be connected or
disconnected during operation.

Overvoltage protection

ERCO uses electronic control gear with
overvoltage protection in accordance
with DIN EN 61547. If additional protec-
tion from spikes is required, e.g. when
switching off inductive loads, separate
overvoltage protection units should be
installed.

Dimming

Depending on the version, the luminaire
can be dimmed via suitable dimmers
(trailing edge).

Trailing edge dimmers

Follow the manufacturer's installation
instructions.
For some products, the luminaire can
only be switched on in the upper dim-
ming range. Before installation and
connection, check luminaire, control
gear and dimmer combination for proper
functioning of the dimmer, especially
when using universal dimmers.
The use of dimmers which are unsuitable
for LED drivers can damage the lumi-
naire, control gear and/or the dimmer.
No responsibility is accepted for the use
of dimmers that are unsuitable for the
luminaire.
On-board Dim (potentiometer)
The luminous flux can be continuously
dimmed with the rotary control on the
luminaire, also in addition to the dim-
mer with trailing edge technology.
Rotating the light distribution
- When using floodlights with oval
flood characteristic, the orientation of
the beam can be rotated.
When undoing the lens mount, ensure
that the Spherolit lens does not fall out.
- When using wallwashers, ensure cor-
rect rotation of the Spherolit lens wall-
wash, as otherwise this will alter the
light distribution.
Flashing of the LED module
It is normal for the LED module to
flicker when switching on and off.
Cleaning
Always clean carefully using a soft
cloth and a commercially available,
