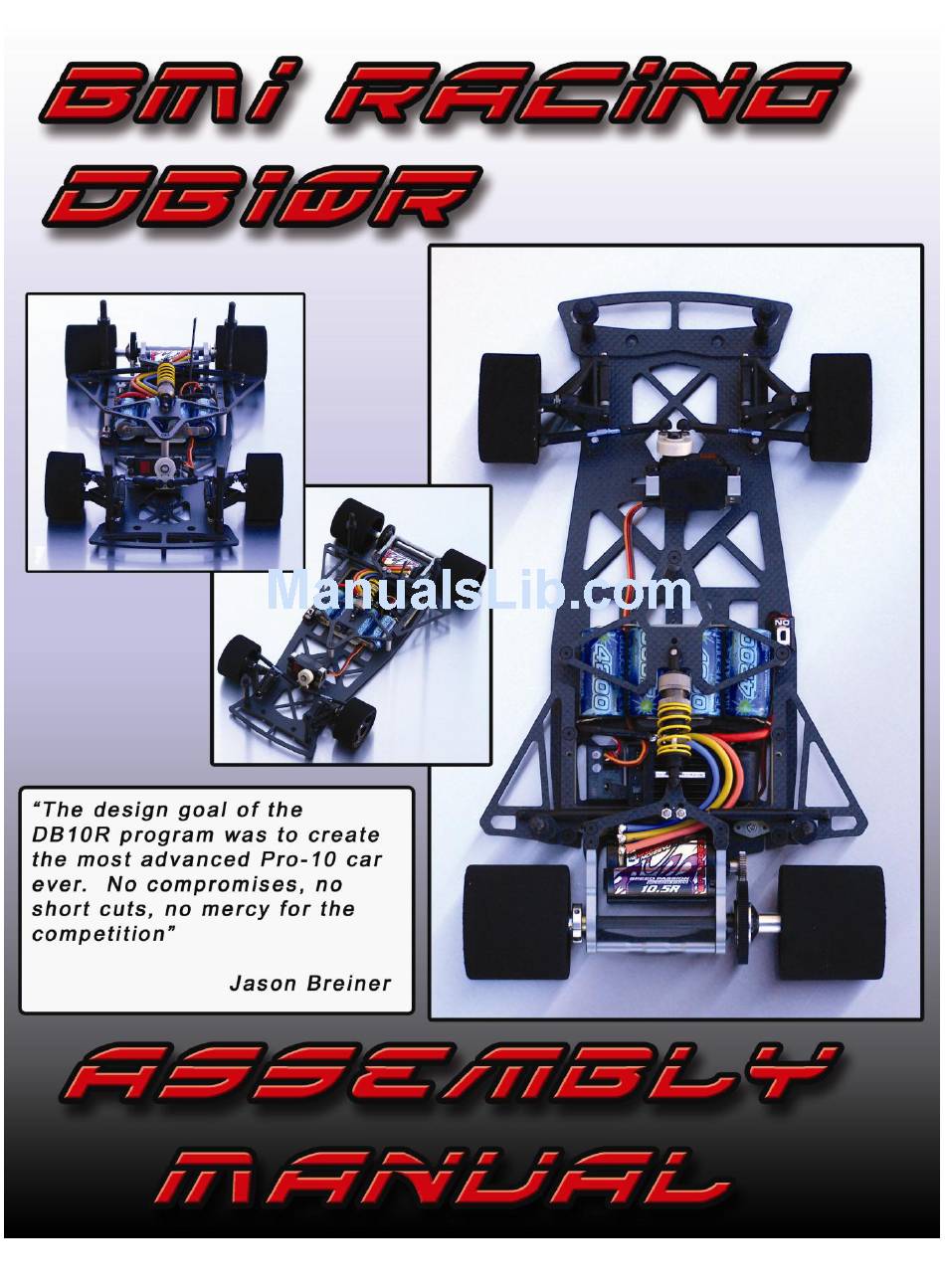

- Page 1 Version 1.00 3-25-2008...
- Page 2 Futaba 9602, 3650, JR 3650, etc. With Regards, Jason Breiner BMI Racing Items needed to operate your DB10T Two channel surface Radio system A servo* One or more 4 cell battery packs A battery charger...
- Page 3 Front suspension assembly Step 1 Locate your lower front suspension arms and the hard anodized alloy pivot balls. Note that the arms are not symmetrical. Pop the pivot balls into the arms with the shoulder on the ball facing up. Do this by placing the ball on a hard flat surface and placing the arm over the ball.
- Page 4 Step 6 Attach the upper suspension arm assembly to the lower suspension arms as shown with 4-40 x ½” screws. Locate 2 steel 1/8” king pins,12 1/8” shims, 2 e- clips and 2 .022” king pin springs and 2 white nylon spring perches.
-
Page 5: Rear Suspension Assembly
Locate four 8-32 x 5/8” screws and 4 thin and 4 thick nylon lower suspension arm risers. Pass a screw through the chassis and slide a thin and a thick nylon riser over the screw. Start threading the screw into the lower suspension arm but do not tighten it. Pass another screw through the chassis and slide a thin and a thick nylon riser over that screw. - Page 6 Step 11 Take a minute to prepare all your carbon components for assembly. With a file or sand paper knock off any sharp edges along the perimeter or the carbon parts. The cell slots in the chassis are designed to fit the cells properly if you just knock off the sharp edges.
- Page 7 Step 15 Locate the two alloy rear pod plates, the alloy rear pod plate spacer tube 2 4-40 x 3/8” flat head screws and 4 4-40 x ¼” flat head screws. Attach the alloy pod plates to the lower carbon pod plate with the 4 4-40 x ¼”...
- Page 8 Step 18 Locate the damper tube parts bag, the rear pod top plate and 4 4-40 x ¼” flat head screws.. 1. Thread a 4-40 x ½” set screw into each of the 4 ball cups from the damper parts bag. 2.
- Page 9 Attach the battery retention plate to the 3 alloy stand offs with 3 4-40 x ¼” flat head screws. Assemble the IRS Nickel-Teflon Macro Shock as per the included instructions with 40wt silicon shock oil. Install the included center shock spring onto the shock and snap the shock in place.
- Page 10 Step 23 Insert the IRS precision ride height adjuster cams into the rear alloy pod plates. Insert a 3/8” x ¼” flanged bearing into each ride height adjuster and insert the axle as shown. Install your favorite wheels and measure the width of the car. Shim as necessary to obtain a centered axle and a 200mm rear track width.
- Page 11 Step 27 Install your body posts with two 4-40 x ½’ flat head screws in the front (the front bumper fits between the lower chassis and the front body mounts) and two 4- 40 x ¼” button head screws in the rear. The Servo mounts are attached to the lower chassis with two 4-40 x ¼”...
- Page 12 Mounting Electronics (4 cell & Saddle LiPo) The “Center Mass“ chassis layout of the DB10R is one of the features that really puts this car ahead of the pack. This chassis design moves the batteries forward and places the electronics between the battery and the motor pod.
- Page 13 Mounting Electronics (Stick LiPo) This is the recommended electronics installation when the DB10R is powered by a stick LiPo battery. You will need to purchase the “Stick LiPo Mounting Kit” (www.bmiracing.com, DB5900) in order to fit the battery. The “Stick LiPo Mounting Kit” consists of 2 longer alloy stand offs that makes room for the taller battery.
