Quick Hardware Setup Guide
LSI Logic LSI20320-R
Host Bus Adapter
Thank you for purchasing the LSI20320-R Host Bus Adapter (HBA).
Please take a few minutes to read this quick hardware setup guide
before you install the LSI20320-R. If you need more information
about any topic covered in this guide, please refer to the other
documents on the accompanying LSI Logic Host Bus Adapter
compact disk (CD).
Contents of the LSI Logic Host Bus Adapter CD
The LSI Logic Host Bus Adapter CD contains utility programs,
device drivers for various operating systems, and the following
documentation:
•
LSI Logic Ultra320 SCSI to PCI-X Storage Adapter User's Guide
•
LSI Logic Device Management User's Guide
•
LSI Logic Host Bus Adapter technical product briefs
•
Information on SCSI cables
Technical Support
For assistance installing, configuring, or running the LSI20320-R,
contact LSI Logic Technical Support:
Phone Support: 1-800-633-4545
Web Site: http://www.lsilogic.com
Storage Adapter Installation
Caution: Make a backup of your data before changing your system
configuration.
These steps install the LSI20320-R. The following text provides an
explanation of each step.
Step Action
1 Unpack the LSI20320-R.
2 Turn off the computer, remove the power cord, and remove the cover.
3 Install the LSI20320-R in a PCI or PCI-X slot.
4 Connect the SCSI devices to the LSI20320-R.
5 Set the target IDs for the SCSI devices.
6 Set the SCSI termination.
7 Replace the computer cover and turn the power on.
8 Run the LSI Logic BIOS Configuration Utility.
9 Install the operating system device driver.
®
Step 1: Unpack Storage Adapter
Unpack the LSI20320-R in a static-free environment. Remove the
LSI20320-R from the antistatic bag and inspect it for damage. If it
appears to be damaged, or if the LSI Logic Host Bus Adapter CD
is missing, contact LSI Logic or your OEM support representative.
Step 2: Prepare Computer
Turn off the computer and remove the power cord from the back of
the power supply. Remove the cover from the chassis. Be certain
to disconnect the computer from the power and from any networks
before installing the controller card.
Step 3: Install LSI20320-R Host Bus Adapter
Install the LSI20320-R in a 3.3 V or 5 V PCI slot, as shown in
Figure 2. Press down gently, but firmly, to seat the card properly the
slot. The bottom edge of the controller card must be flush with the
slot. Then attach the LSI20320-R to the computer chassis with the
bracket screw. The LSI Logic Ultra320 SCSI to PCI-X Storage
Adapter User's Guide provides detailed instructions for installing
and configuring the LSI20320-R.
Step 4: Connect the SCSI Devices to the LSI20320-R
Connect SCSI devices to the internal high-density 68-pin SCSI
connectors and/or the external very high-density 68-pin SCSI
connectors. To achieve maximum data throughput, use only
Ultra320 SCSI devices. The LSI20320-R supports up to 15 Ultra320
SCSI devices and a maximum SCSI bus cable length of 12 m.
Disable SCSI termination on all the devices that are not located at
the end of the SCSI bus. Use only high-quality ribbon SCSI cables
for internal devices and high-quality round SCSI cables for external
devices. Figure 1 and the following table provide the location and
definition of the connectors on the LSI20320-R.

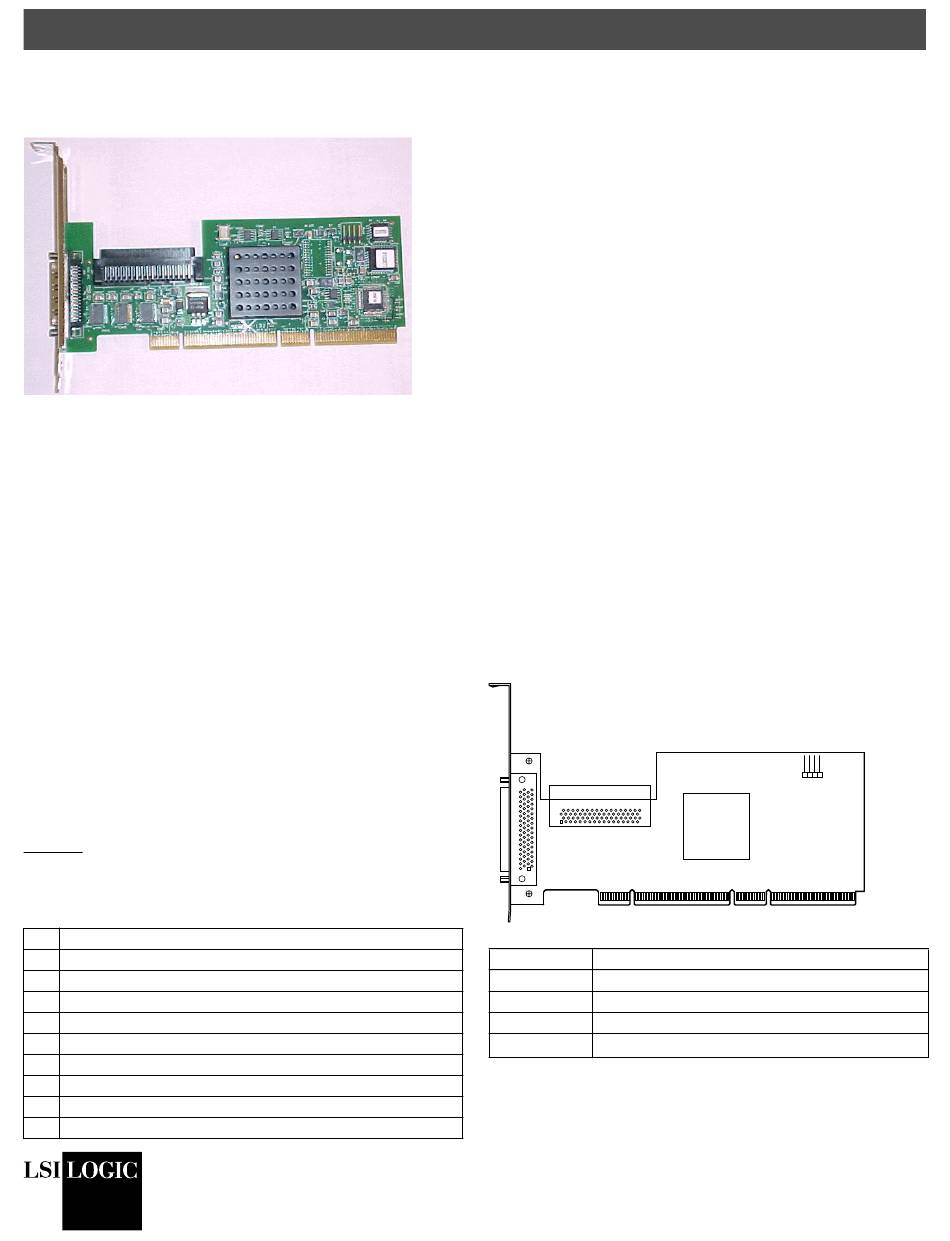

Figure 1 LSI20320-R Host Bus Adapter Board Drawing
J3
Channel A
Internal SCSI Connector
J1
Channel A
J5 - PCI/PCI-X 64-Bit Edge Connector
External VHDCI
Connector Definition
J1 External SCSI Channel A Connector
J3 Internal SCSI Channel A Connector
J5 PCI/PCI-X Connector
HDR2
LED for SCSI Channel A
1. If the LED does not light during SCSI bus activity, disconnect the LED cable, rotate
it 180 degrees, and re-connect the LED cable to the HDR2 connector.
Copyright © 2003 by LSI Logic Corporation. All rights reserved.
HDR2 Connector for
Channel A
LSI53C1020
1
DB11-000044-01
May 2003
