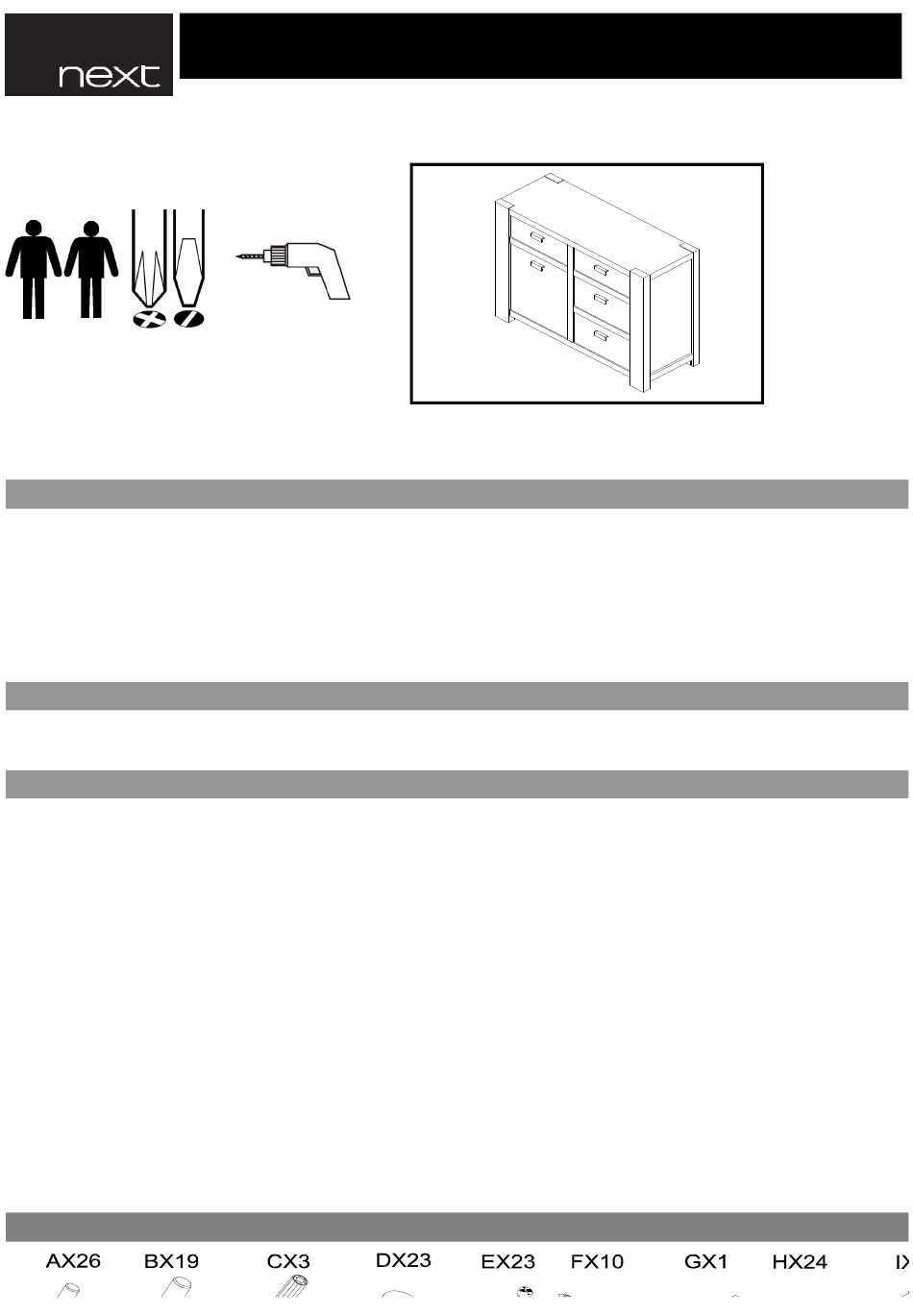

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require any
replacement fittings please contact Customer Services
Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be
faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of two persons is required to assemble this product.
• Wall fixings are not included.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.
PRODUCT INFORMATION
• Made from honeycomb board, partical board & MDF with a wood effect finish.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching or
damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
FITTINGS
130442 CORSICA SMALL SIDEBOARD
130442 CORSICA SMALL SIDEBOARD
130442 CORSICA SMALL SIDEBOARD
130442 CORSICA SMALL SIDEBOARD
ASSEMBLY INSTRUCTIONS.
P a g e 1 o f 2 0
Advertisement
Related Manuals for Next 130442
Summary of Contents for Next 130442
- Page 1 130442 CORSICA SMALL SIDEBOARD 130442 CORSICA SMALL SIDEBOARD 130442 CORSICA SMALL SIDEBOARD 130442 CORSICA SMALL SIDEBOARD ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any...
- Page 2 PARTS STEP ONE 1.Attach panels 18, 19 & 22 to panel 20 with 6 x screws (H) and tighten with a screwdriver. STEP TWO 1.Slide panel 23 into the assembled drawer frame. P a g e 2 o f 2 0...
- Page 3 STEP THREE 1.Insert 3 x cambolts (E) into panel 21 and tighten with a screwdriver. 2Aattach handle (M) to the panel 21 with 2 x screws (M) 3.Glue and insert 5 x wooden dowels (A) into panels 18,19 & 22. 4.Attach panel 21 to the assembled drawer frame.
- Page 4 STEP SIX 1.Insert 3 x cambolts (E) into panel 17 and tighten with a screwdriver. 2Aattach handle (M) to the panel 17 with 2 x screws (M) 3.Glue and insert 5 x wooden dowels (A) into panels 22, 24 & 25. 4.Attach panel 17 to the assembled drawer frame.
- Page 5 STEP NINE 1.Glue and insert 6 x wooden dowels (B) into panels 13 (x3) 2.Attach panels 13 ( x3) to panel 7 STEP TEN STEP TEN 1.Glue and insert 6 x wooden dowels (B) into panels 13 (x3) 2.Attach panels 3 & 4 to panels 13 (x3) STEP ELEVEN 1.Attach panels 3,4 to panel 1 2.Insert 4 x camlocks (D) into panel 1 and tighten with...
- Page 6 STEP TWELVE 1.Glue and insert 2 x wooden dowels (B) into panel 2 2.Attach panel 14 to panel 2. 3.Insert 1 x camlock (D) into panels 14 and tighten with a screwdriver. Ensuring the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
- Page 7 STEP FIFTEEN 1.Glue and insert the 6 x wooden dowels (A) into panels 15 & 16. 2 Attach panels 15 & 16 to paenls 3 & 4. STEP SIXTEEN 1.Silde panels 12 (x2) into the grooves of the unit STEP SEVENTEEN 1.Silde panels 10, 11 into the grooves of the assembled unit.
- Page 8 1.Slide panels 5 & 6 into the assembled unit as shown in diagram. STEP NINETEEN 1.Tighten panels 5 & 6 to panels 1 & 2 with 8 x screws (F) using an Allen key (G) . STEP TWENTY 1.Carefully lift the unit upright 2.Insert 4 x fittings (I) into the required position of panels 15 &...
- Page 9 provided. STEP TWENTY -TWO 1.Attach panel 9 to panel 15 with 4 ×screws (K) through 2 x hinges (J) by a screwdriver. To align doors use the adjustment diagram below. LATERAL VERTICAL FRONT-TO-BACK STEP TWENTY -THREE 1. Insert the drawers 21(x2) & 27(x2) to the assembled unit as shown in diagram.
- Page 10 NB:Wall fixings are not included-Please source suitable fixing for your wall type. If in doubt please consult a qualified trades person. Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT P a g e 1 0 o f 2 0...
- Page 11 P a g e 1 1 o f 2 0...
- Page 12 P a g e 1 2 o f 2 0...
- Page 13 P a g e 1 3 o f 2 0...
- Page 14 P a g e 1 4 o f 2 0...
- Page 15 P a g e 1 5 o f 2 0...
- Page 16 P a g e 1 6 o f 2 0...
- Page 17 P a g e 1 7 o f 2 0...
- Page 18 P a g e 1 8 o f 2 0...
- Page 19 P a g e 1 9 o f 2 0...
- Page 20 P a g e 2 0 o f 2 0...
