Safety I/O Terminal GI-S Series
GI-SMD/SID

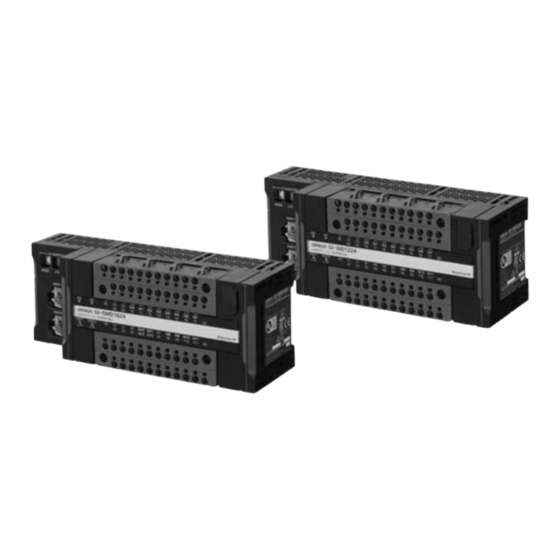

Safety I/O Terminals for CIP Safety
• Safety inputs: 12-points
• Safety outputs: 4-points
Features
• CIP Safety on EtherNet/IP is Supported
• Standard-feature EtherNet/IP Communications Port
Ordering Information
GI-S-series safety I/O terminals
Specification
Corresponding
Number of
communication
connectors
protocol
EtherNet/IP 2
* PORT1 and PORT2 are ports with switching hub.
Accessories
Not included.
• Sysmac and SYSMAC are trademarks or registered trademarks of OMRON Corporation in Japan and other countries for OMRON factory
automation products.
• Microsoft, Windows, Windows Vista, Excel, and Visual Basic are either registered trademarks or trademarks of Microsoft Corporation in the
United States and other countries.
• ODVA, CIP TM , CompoNet
• The SD and SDHC logos are trademarks of SD-3C, LLC.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
1
Number of Safety
networks inputs
12 inputs
1 *
12 inputs
TM , DeviceNet TM , EtherNet/IP TM , and CIP Safety
TM
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
I/O capacity
Safety
Test outputs outputs
(for PNP)
12 outputs 4 outputs
12 outputs ---
TM are trademarks of ODVA.
Unit version Model
Ver. 1.0 GI-SMD1624
Ver. 1.0 GI-SID1224
