  • Page 1 LSM 3 Cameras Rev. 1.09 – Date: June 1999 USER’S MANUAL...
  • Page 2 270 clips on disks and of course to replay all or some of them. A PLAY LIST is constituted of a list of clips (30 PLAY LISTS can be defined). EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 3 Displays or hide the incrustations on the monitoring outputs Tablet re-initialization Select Clip Page 1 or Clip Page 2 Press the LSM key to start the LSM 3 CAMERAS editing menu. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 4: Remote Control Panel

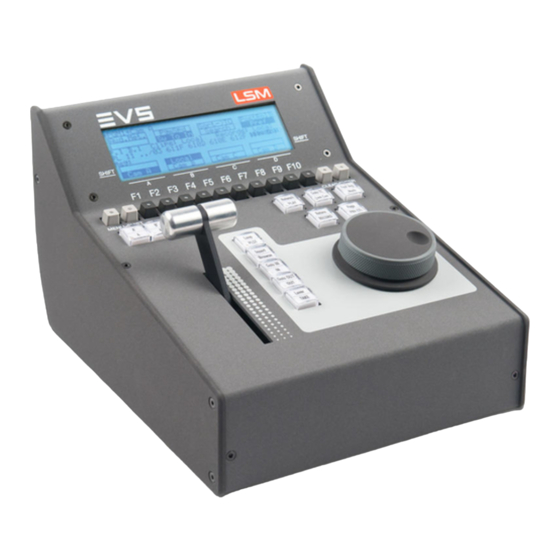

    Author : Marianne LOTHAIRE rev B.STAS User's Guide Software : LSM4CAM.EXE v.1.09 29/06/99 REMOTE CONTROL PANEL The following diagram shows the REMOTE panel along with a brief description of each area. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 5 (not implemented) RECORD initiates «LIVE IN» mode LAST CUE re-cues disk recorder to last cue entered (max 4 cues) 11. JOG knob used to accurately cue disk recorder EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 6 C A M . B C A M . C I N S E R T E D S P D PLAY-LIST MENU E D I T A L L EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 7 Remaining time until the end of clip 00:00:00 10:00:00:00. 00:00:00 Time code of current picture 111A Name of Clip Playback Clip number speed in % Clip duration EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 8 % Position of the current clip in the playlist LSM 3 CAMERAS CONTROL MODES The LSM3CAM can be set in three different basic modes, depending on commands used. Live (E2E) Mode This mode which is selected at start-up can also be selected by pushing the RECORD key.

  • Page 9: Playback Mode

    In the Clip Management window, the preferential camera is indicated by dashes : -B-. When the preference option is disabled, the PGM output stays on the camera currently selected when the clip is called. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 10: Section A : Remote Control Keys

    The MARK key lights green if a CUE point has been defined. It lights red if the current picture is actually a CUE point. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 11 This function allows the operator to come back to the position where he was before recalling a clip. This little trick permits to come back to a previous position, without using the RECORD key and the COMMAND KNOB. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 12: Section B : Clip And Play-List Management

    This function jumps to the SHORT OUT point of the selected clip. This function is used to jump back a few seconds from the current position. The duration of the jump can be adjusted in the SETUP menu. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 13 Press IN key to clear the IN point or Press OUT key to clear the OUT point To delete a clip, a SHORT IN/OUT point or a playlist refer to CLIP & PLAY LIST MANAGEMENT section. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 14: Section C : Command Knob Or Jog

    When the Slow Motion is no longer needed, move the LEVER to 100% speed position or press the RECORD key to return to the LIVE (E2E) mode. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 15 In that case, no CUE IN was defined on CAM B and CAM C by the user so they will be automatically set equals to CAM A CUE IN. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 16 (a page and a position within the bank #10). Bank #10 is the play-list reserved bank. 10 play-list can be created in each bank #10, so 20 playlists can be defined. Menu Shift Clear Enter EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 17: Clip Management

    If PREF is OFF : The user recalls a clip : the image displayed is the first CUE IN point defined (jump is done on the first CUE IN entered). EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 18 MOTION will stop at the new SHORT OUT point. GOTO In and GOTO Out You can use Goto In and Goto Out function to jump immediately onto SHORT IN or SHORT OUT cue respectively. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 19 Clip management is in the Clip Screen can also be done using the optional tablet and stylus. Clips can be selected and deleted the same way as with the keyboard. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 20 In case the application is not exited properly (power loss, system hangs, …), clips created after the last "Save Clips" command will be lost. Clips created before the "Save Clips" command will be retrieved. IT IS RECOMMENDED TO SAVE CLIPS REGULARLY. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 21: Play List Management

    Press the PLST key again to move to the first picture of the playlist, if necessary. Move the lever to start the playback of this play list. Adjust the speed by moving the lever. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 22 Press « REMOVE » key (Shift + A) on the remote panel How to delete a playlist ? Select the playlist to delete. Press the CLEAR key and then the F key on the remote corresponding to the playlist. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 23 PC time is used. Jumps in time code are managed. When record is stopped, a jump in time code is generated and the time code is still based on the reference. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...

  • Page 24: Setup Option

    Choose setting to be modified by pressing F button (see table below) & make adjustment by rotating JOG knob. To restore the default value of a parameter, press CLEAR and the corresponding F button. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 25 NOT USED AT Jump Duration : defines the duration to PRESENT PRESENT jump back from current position when pressing the CUE key on the remote Default : 5 sec. EVS Broadcast Equipment Email : support@evs-broadcast.com Tel: +32-4-361 7000 FAX: +32-4-361 7099...
  • Page 26 Author : Marianne LOTHAIRE rev B.STAS User's Guide Software : LSM4CAM.EXE v.1.09 29/06/99 WIRING DIAGRAMME For more information, feel free to contact us : EVS Broadcast Equipment Parc Scientifique du Sart Tilman, 16 4102 Liege (Belgium) Tel : +32-4-361 7000 Fax : +32-4-361 7099 support@evs-broadcast.com...
