- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 904018 SNACK TABLE REVISION 0 : 09/25/2017 REVISION 1 : 08/24/2020 PAGE 1 OF 6 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
904018 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
904018 ITEM: ASSEMBLY INSTRUCTIONS HARDWARE IDENTIFICATION SHORT BOLT 6PCS (3/16" x 12mm SR) LONG BOLT 4PCS (1/4" x 38mm SR) SHELF BOLT 4PCS (7 x 50mm) SUCTION CUP 4PCS ( 15 x 8mm) FLOOR PROTECTOR 4PCS ( 6mm) ALLEN WRENCH... - Page 4 904018 ITEM: ASSEMBLY INSTRUCTIONS STEP 1 Do not tighten until each step is completed or instructed. STEP 2 PAGE 4 OF 6 COASTERFURNITURE.COM...
- Page 5 904018 ITEM: ASSEMBLY INSTRUCTIONS STEP 3 STEP 4 COMPLETE PAGE 5 OF 6 COASTERFURNITURE.COM...

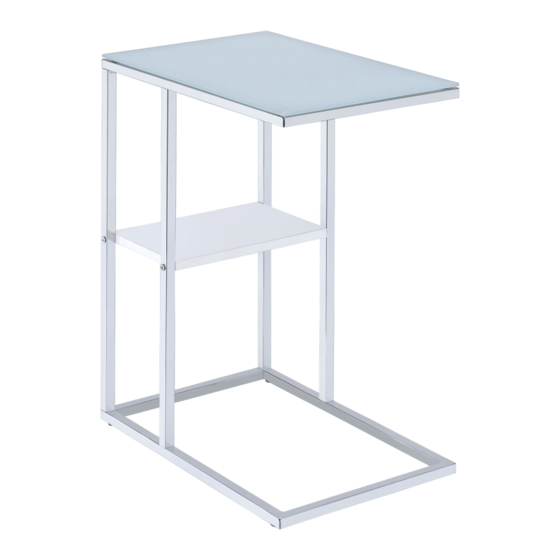

- Page 6 904018 ITEM: ASSEMBLY INSTRUCTIONS Product Size : 298 X 457 X 610 H (MM) Product Size : 11 " X 18" X 24" 610 mm 570 mm 24" " 457 mm 298 mm 18" " Note : Dimension tolerance ±5% PAGE 6 OF 6 COASTERFURNITURE.COM...
