Telos Zephyr User Manual page 200

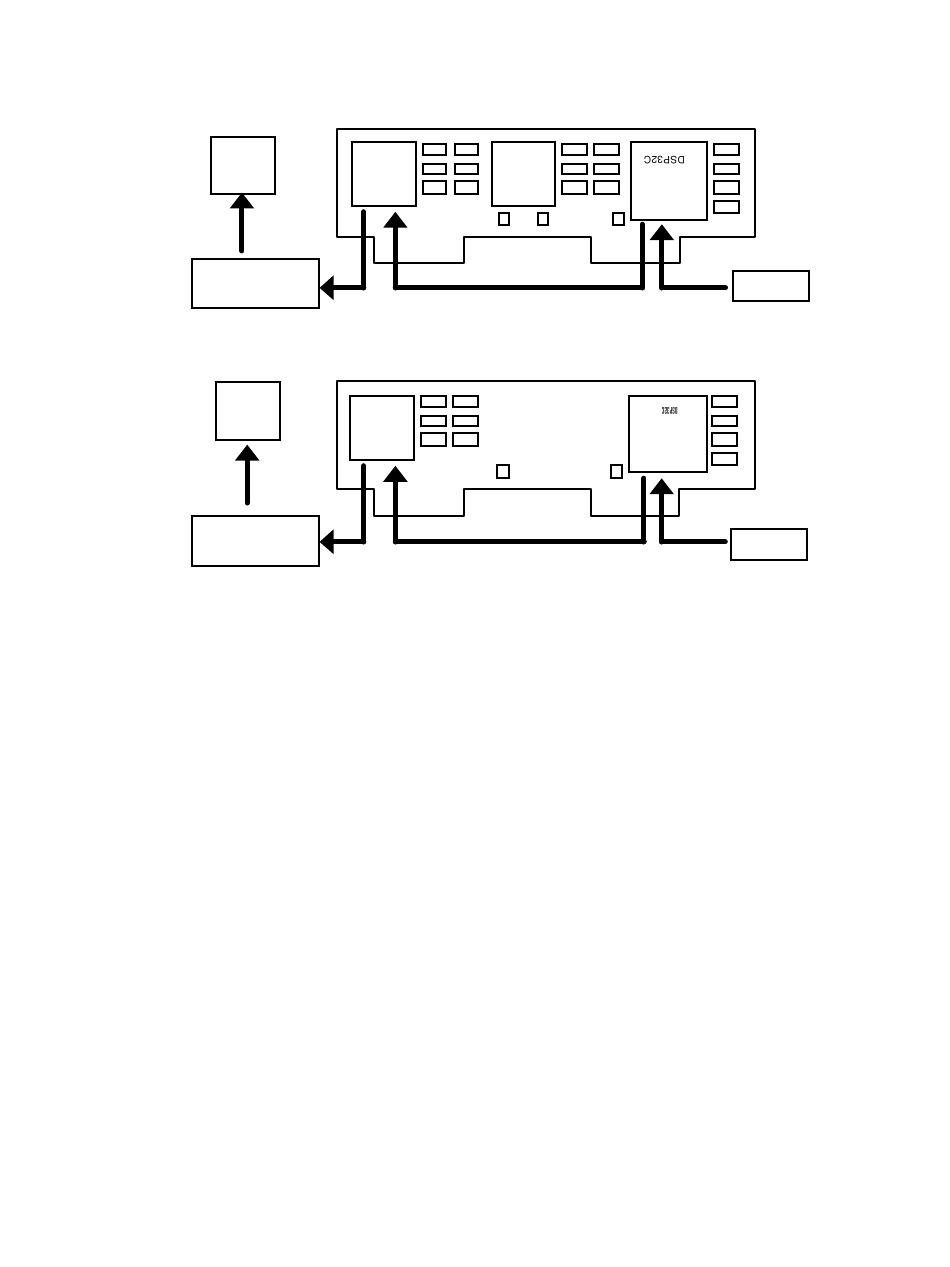

Two DSP Card (5 DSP) Configuration
PORT 1
OUT
V.35 SERIAL PORT
GLUE LOGIC
PORT 2
OUT
V.35 SERIAL PORT
GLUE LOGIC
Xmt Mode: L3 DUAL
This mode generates two independently coded bitstreams. It effectively causes
the running of two copies of the mono encoder software simultaneously.
(V.35 only.) The system clock is taken from either Port 1 or Port 2. The first port with an
active Carrier Detect signal is used, with a default to Port 1 when there is no CD active
on either port.
200
Section 11
M O N O D S P C A R D
DSP56002
U2
S T E R E O
DSP56002
U2
TECHNICAL INFORMATION
DSP56002
U3
U1
D S P C A R D
U1
A(left)
AUDIO
B(right)
AUDIO
