Summary of Contents for BRECOflex SM5

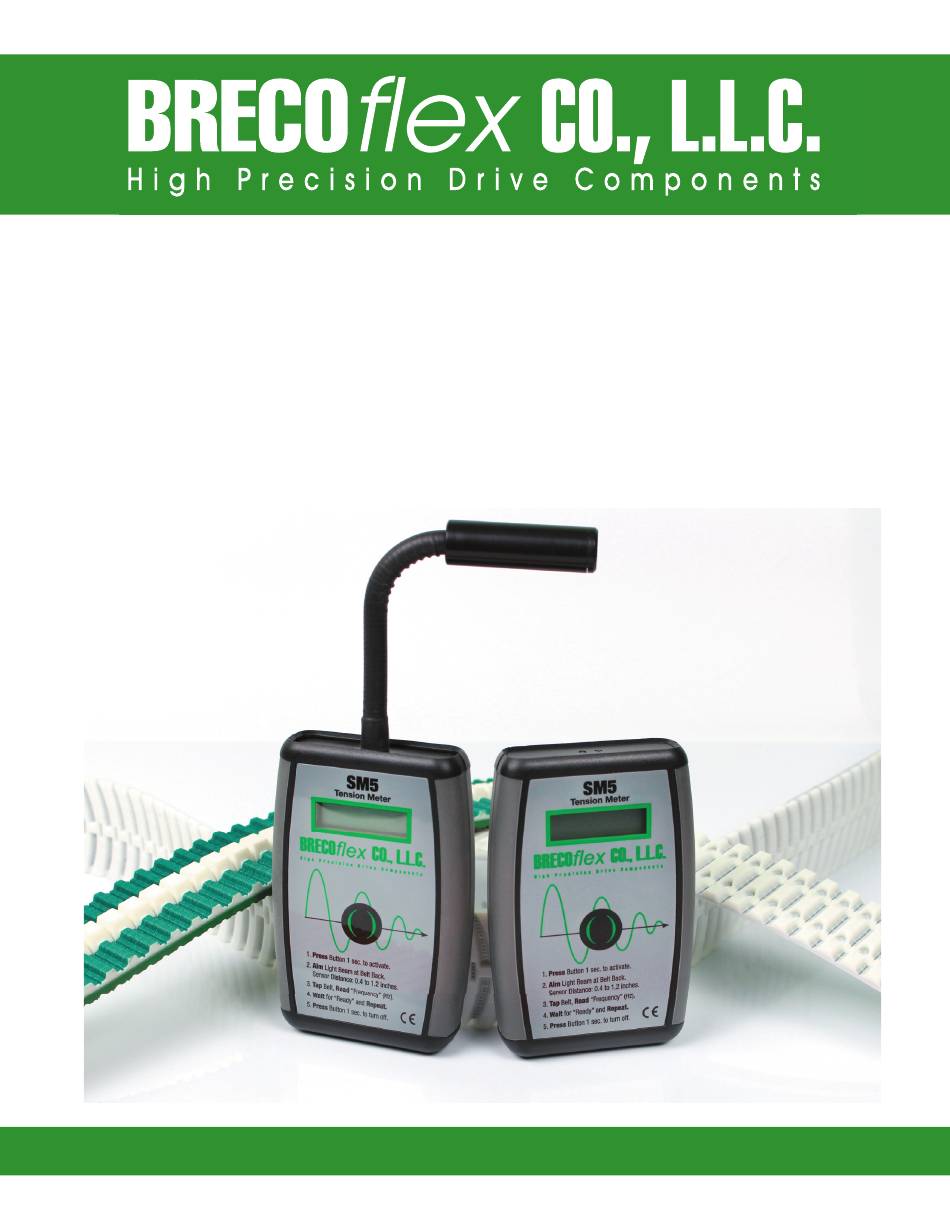

- Page 1 The World Leader In Polyurethane Timing Belts Universal Belt Tension Meter B110...

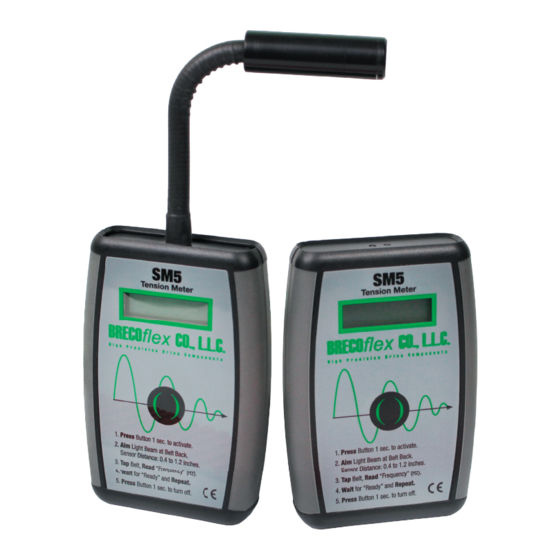

- Page 2 SM5 Tension Meter Overview The SM5 Tension Meter is designed to measure the static tension of all belt types and materials and off ers the following benefi ts: • Simple one-button operation • Accurate measurement results for optimal belt performance and life •...
- Page 3 1. PRESS button (1) one second to activate meter 2. AIM light beam at belt back with a sensor distance of 0.4 to 1.2 inches 3. TAP belt to generate a vibration and SM5 will display a frequency 4. WAIT for “Ready” display and repeat measurement to confi...
- Page 4 0.110 ATK20K13 Note: These values are built in to the BRECOflex SM5 Pretension Calculator App. Download the App for free for iOS on The App Store or Android on Google Play. For videos on how to use the SM5 Tension Meter, calculate pre-tension, use the SM5 Pretension Calculator App and more, visit our YouTube channel at www.youtube.com/brecoflexcollc.
- Page 5 SM5 Tension Meter SM5 Pretension Calculator App BRECOfl ex CO., L.L.C. off ers the free “SM5 Pretension Calculator” which is a companion App to the SM5 Tension Meter. The two work together to make setting and calculating belt pretension simple and right at your fi ngertips. Scan the QR codes below with your smart phone to download it free directly from The App Store or Google Play.
- Page 6 Readers and customers are encouraged to conduct their own test before using any product. Read its label and all related instructions. BRECOflex CO., L.L.C. reserves the right to make changes in the technical and dimensional specifications of its products without prior notice. Responsibility for...
