FORD E-Transit
2022 ->

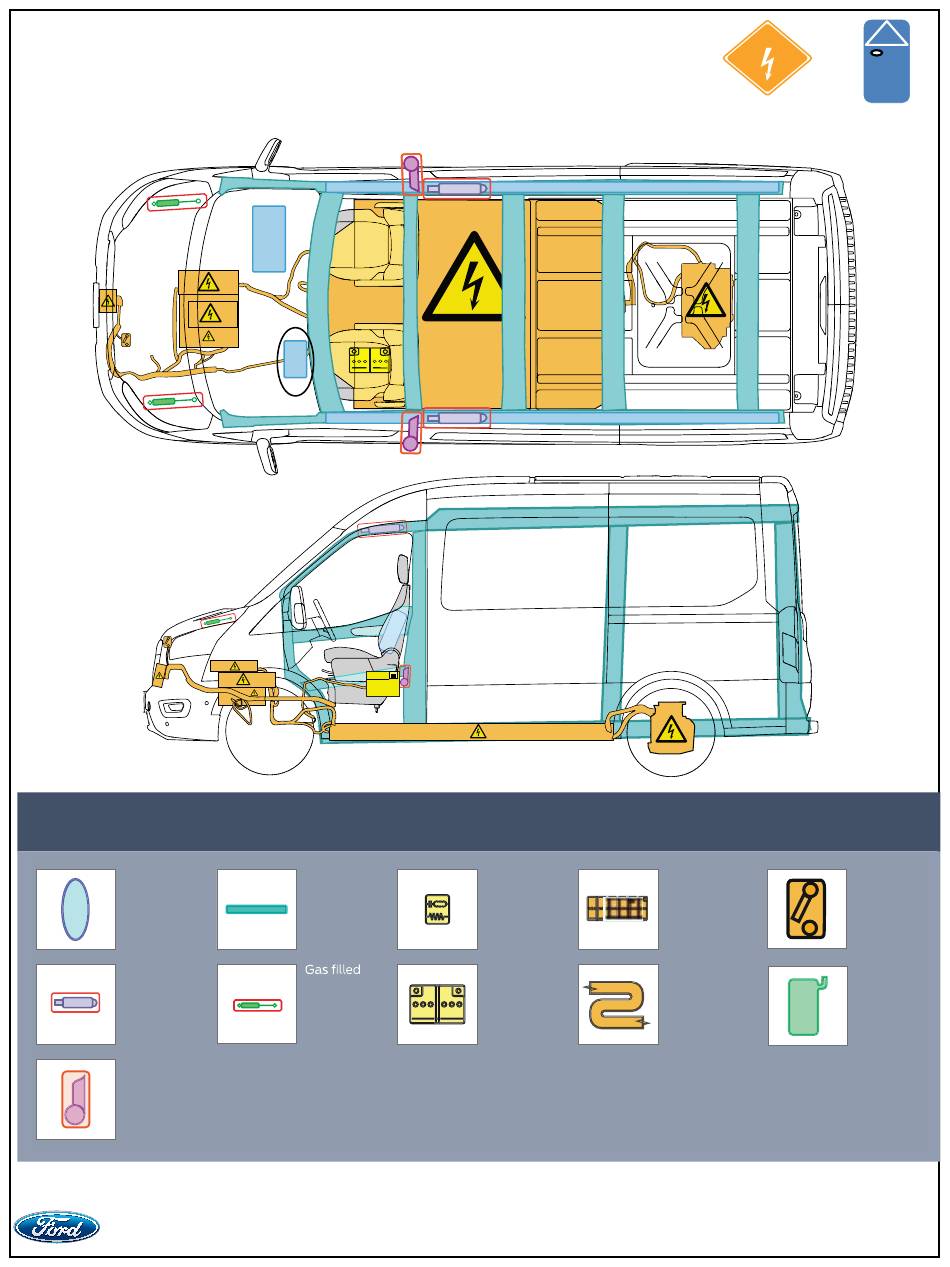

Legend
Airbag
Gas gene
rato
r
Seat belt
tensioner
CPR © 2021 FORD MOTOR COMPANY
DEARBORN, MICHIGAN 48121
12/2021
Structural
Reinforce-
ments
spring device
Control unit
Battery
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
PLACE COPY HERE
PLACE COPY HERE
PLACE COPY HERE
High-voltage
battery
High-voltage
wire /
components
Page 1 of 22
1101M
High-voltage
disconnection
point
Fuel tank
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ford E-Transit 2022
Summary of Contents for Ford E-Transit 2022
- Page 1 High-voltage Airbag Structural Control unit High-voltage Reinforce- battery disconnection ments point Gas gene rato Battery High-voltage Fuel tank spring device wire / components Seat belt tensioner CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 1 of 22 12/2021...
-
Page 2: Table Of Contents
7. In case of submersion Page 13 8. Towing / transportation / storage Page 14 9. Important additional information Page 19 10. Explanation of pictograms used Page 19 CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 2 of 22 12/2021... -
Page 3: Identification / Recognition
Sample VIN BEV - 1FTBW9CK2NKA00232 STUD FOR MISSING NUT STUD FOR MISSING NUT STUD FOR MISSING NUT PLACE COPY HERE PLACE COPY HERE PLACE COPY HERE CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 3 of 22 12/2021... -
Page 4: Immobilization / Stabilization / Lifting
NOTE: The electric parking brake could apply when you shift into park (P). 2. Put vehicle into Park position (1), ensure that the parking brake is engaged (2). 1101M CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 4 of 22... - Page 5 The high voltage battery is located behind an underbody air shield under the vehicle. When lifting or stabilizing only use the designated lift areas, as shown. DO NOT USE THE HIGH VOLTAGE BATTERY TO LIFT OR STABILIZE CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 5 of 22...
- Page 6 Medium Wheelbase [MWB] - Van, Bus, Kombi Long Wheelbase [LWB] - Van, Bus, Kombi STUD FOR MISSING NUT STUD FOR MISSING NUT STUD FOR MISSING NUT CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 6 of 22 12/2021 PLACE COPY H PLACE COPY H...
- Page 7 Extra Long Wheelbase [LWB-EL] - Single Chassis Cab and Jumbo CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 7 of 22 12/2021...
-
Page 8: Disable Direct Hazards / Safety Regulations
Always observe local laws and legislative directives regarding Pyro- technic Components service and handling. Failure to follow this instruction may result in serious personal injury or death. CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 8 of 22... - Page 9 High Voltage cabling and components are powered up. If The High Voltage Battery Case Has Been Ruptured Just like any other battery, hose down the area with LARGE amounts of water. CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 9 of 22...
- Page 10 PLACE COPY HERE PLACE COPY HERE PLACE CO PLACE CO STUD FOR MISSING NUT STUD FOR MISSING NUT STUD FOR CPR © 2021 FORD MOTOR COMPANY MISSING NUT DEARBORN, MICHIGAN 48121 Page 10 of 22 12/2021 PLACE COPY HERE PLACE COPY HERE...
- Page 11 STUD FOR MISSING NUT MISSING NUT STUD FOR STUD FOR MISSING NUT MISSING NUT CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 PLACE COPY HERE PLACE COPY HERE Page 11 of 22 12/2021 PLACE COPY HERE PLACE COPY HERE...
- Page 12 PLACE COPY HERE STUD FOR MISSING NUT STUD FOR MISSING NUT 11. Wait a minimum of 5 minutes. STUD FOR MISSING NUT CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 PLACE COPY HERE Page 12 of 22 12/2021 PLACE COPY HERE...
-
Page 13: Access To The Occupants
Always observe local laws and legislative directives regarding Pyro- technic Components service and handling. Failure to follow this instruction may result in serious personal injury or death. CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 13 of 22... -
Page 14: Stored Energy / Liquids / Gases / Solids
12V battery, and other vehicle component locations. STUD FOR MISSING NUT STUD FOR MISSING NUT STUD FOR CPR © 2021 FORD MOTOR COMPANY MISSING NUT DEARBORN, MICHIGAN 48121 Page 14 of 22 12/2021 PLACE COPY HERE PLACE COPY HERE... -
Page 15: In Case Of Fire
A non-conductive object, about 1.5 m (5 ft) long, to safely push someone away from the vehicle if they accidentally come in contact with a damaged electric vehicle. CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 15 of 22... -
Page 16: In Case Of Submersion
Once the vehicle has been removed from the water proceed to the high voltage depower procedure, as outlined in section 3 of this document. CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 16 of 22... -
Page 17: Towing / Transportation / Storage
High Voltage battery compartment, ventilate the area and call 911. Be alert. There is potential for delayed fire with damaged lithium-ion batteries. Call an authorized Ford dealer or vehicle manufacturer representative, if necessary, to determine the additional steps to take to safely recover or transport the vehicle. - Page 18 Physical damage to the vehicle or High Voltage battery may result in immediate or delayed release of toxic and/or flammable gases and fire. Damaged Vehicle Guidance and Storage Damaged Vehicle Guidance for Ford Motor Company Electric and Hybrid-Electric Vehicles Equipped with High Voltage Batteries (Towing and Recovery Operators and Vehicle Storage Facilities) In the event of damage or fire involving an Electric Vehicle (EV) or Hybrid-Electric Vehicle (HEV): Always assume the High Voltage battery and associated components are energized and fully charged.
- Page 19 Vehicle Storage Contact an authorized Ford or Lincoln Dealer as soon as possible as there may be additional steps nec- essary to secure,discharge, handle, and/or store the High Voltage battery and vehicle. Do not store a severely damaged vehicle with a lithium-ion battery inside a structure or within 15 m (50 ft) of any structure or vehicle.
- Page 20 ING HIGH VOLTAGE SAFETY GLOVES AND BOOTS. REMOVE ALL METALLIC JEWELRY, INCLUDING WATCHES AND RINGS. ISOLATE THE HIGH VOLTAGE SYSTEM AS DIRECTED BY THE FORD EMERGENCY RESPONSE GUIDE FOR THE VEHICLE. FAILURE TO FOLLOW THESE IN- STRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
- Page 21 If the vehicle and/or battery High Voltage system is damaged, place a sign indicating that it is a battery electric vehicle with potentially dangerous High Voltage. See example below: CPR © 2021 FORD MOTOR COMPANY DEARBORN, MICHIGAN 48121 Page 21 of 22...
-
Page 22: Important Additional Information
© Copyright 2021, Ford Motor Company. All rights reserved. This document may be reproduced in its entirety and distributed for emergency responder use only. It may not be excerpted for any purpose.
