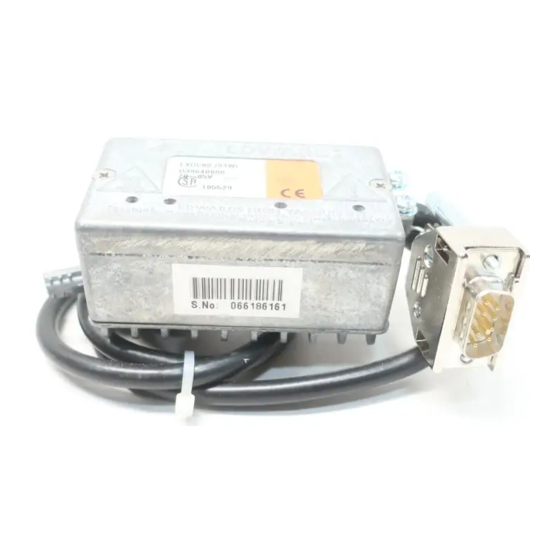

BOC Edwards EXDC Series Instruction Manual

Turbomolecular pump drive module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
EXDC Turbomolecular Pump
Drive Modules
Description
EXDC80 Turbomolecular Pump Drive Module
EXDC160 Turbomolecular Pump Drive Module
Manor Royal, Crawley, West Sussex, RH10 2LW, UK
Telephone: +44 (0) 1293 528844 Fax: +44 (0) 1293 533453
http://www.bocedwards.com
D396-40-880
Item Number
D396-40-000
D396-41-000
Issue F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXDC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOC Edwards EXDC Series

Summary of Contents for BOC Edwards EXDC Series

  • Page 1 D396-40-880 Issue F Instruction Manual EXDC Turbomolecular Pump Drive Modules Description Item Number EXDC80 Turbomolecular Pump Drive Module D396-40-000 EXDC160 Turbomolecular Pump Drive Module D396-41-000 Manor Royal, Crawley, West Sussex, RH10 2LW, UK Telephone: +44 (0) 1293 528844 Fax: +44 (0) 1293 533453 http://www.bocedwards.com...

  • Page 3: Table Of Contents

    Elec tri cal sup ply fail ure MAIN TE NANCE In tro duc tion EXDC LED fault find ing STOR AGE AND DIS POSAL Stor age Dis posal RETURN OF BOC EDWARDS EQUIPMENT EXDC Tur bo mo lecu lar Pump Drive Mod ules...
  • Page 4 Il lus tra tions Fig ure Ti tle Page The EXDC Dimensions (mm) Schematic diagram of the logic interface connections Ta bles Ta ble Ti tle Page Logic interface connector pins EXDC LED fault finding As so ci ated Pub li ca tions Pub li ca tion Ti tle Pub li ca tion Num ber EXT Pump Ac ces so ries...

  • Page 5: In Tro Duc Tion

    Scope and defi ni tions This manual provides installation, operation and maintenance instructions for the BOC Edwards EXDC80 and EXDC160 Turbomolecular Pump Drive Modules (abbreviated to EXDC in the remainder of this manual). You must use the EXDC as specified in this manual. If you do not, the protection provided by the EXDC may be impaired, or you may damage the EXDC, or cause injury to people.

  • Page 6: De Scrip Tion

    De scrip tion The EXDC controls the electrical supply for a BOC Edwards EXT70, EXT70H, EXT250, EXT255H, EXT351 or EXT501 turbomolecular pump. The EXDC has no manual controls and can only be operated through the logic interface. To operate the EXT pump, you must therefore connect the EXDC to your own control equipment and electrical supply (see Figure 3).
  • Page 7 1. Grub screw 5. TMP Nor mal LED (green) 2. Cool ing fins 6. Con nec tor lock 3. Logic in ter face ca ble 7. Un locked po si tion 4. Phase LEDs (red) 8. Locked po si tion 9.

  • Page 8: Tech Ni Cal Data

    TECH NI CAL DATA Op er at ing and stor age data Ambient operating temperature range 0 to 40 Ambient storage temperature range -20 to 70 Maximum ambient operating humidity 10 to 95% RH (non-condensing to DIN 40040) Maximum operating altitude 3000 m Cooling Natural convection...
  • Page 9 Ca ble bend ra dius (≥30) Figure 2 - Dimensions (mm) EXDC Tur bo mo lecu lar Pump Drive Mod ules...
  • Page 10 Logic interface Connector mating half * 9-way D-type male EXDC electrical supply Allowable voltage range 70 to 85 V d.c. Undervoltage lock-out voltage > 63 V Maximum voltage ripple 2 V r.m.s. Fuse (or equivalent current limiting device) rating 3.15 A type ‘T’ IEC approved or 3.2 A time delay fuse UL/CSA approved Maximum input current...

  • Page 11: In Stal La Tion

    IN STAL LA TION Un pack and in spect Remove all packing materials and check the EXDC. If the EXDC is damaged, notify your supplier and the carrier in writing within three days; state the Item Number of the EXDC together with your order number and your supplier’s invoice number.

  • Page 12: Elec Tri Cal Con Nec Tions

    Elec tri cal con nec tions 3.4.1 In tro duc tion Use a suitable connector mating half (not supplied) to connect the electrical supplies and your control equipment to the connector on the logic interface cable (Figure 1, item 3). When you make the electrical connections to the EXDC described in the following sections, refer to Table 1 for full details of the logic interface connections and to Figure 3 for a schematic diagram of the connections.
  • Page 13 EXDC logic in ter face plug Mat ing half to EXDC logic in ter face plug 1. Start/stop switch 4. D. C. re lay (op tional) 2. Elec tri cal sup ply 5. Re lay power sup ply (op tional) 3.

  • Page 14: Con Nect The Elec Tri Cal Sup Ply

    3. Connect your control equipment to the TMP normal status output (pin 2) and to pins 5 or 6 of your logic interface mating half. You can use the output to control other devices in your pumping system. The output can drive a low power relay of up to 24 V coil rating.

  • Page 15: Op Era Tion

    OP ERA TION WARNING Do not disconnect the EXDC from the EXT pump when the pump is operating. At full speed, the EXT pump motor generates 48 V RMS which is accessible at the pump to Controller electrical connection, and there may be a risk of injury by electric shock.

  • Page 16: Nor Mal Shut Down

    Temperature sensors in the EXDC and the EXT pump are monitored by the EXDC. If the EXDC detects that the pump temperature or its own temperature is too high, the power supplied to the pump-motor is reduced; the pump may not therefore be able to maintain full rotational speed if it is too hot.

  • Page 17: Elec Tri Cal Sup Ply Fail Ure

    The EXDC has an electronic EXT pump speed control system. This control system prevents operation of the EXT pump at over 100% of its normal full rotational speed (as operation above this speed reduces bearing operational life). If required, you can monitor the speed analogue output and configure your control equipment to switch off the EXT pump if its speed exceeds 100% of full rotational speed.

  • Page 18: Main Te Nance

    MAIN TE NANCE In tro duc tion The EXDC has no parts which can be serviced by the user. If necessary, return the EXDC to your supplier or BOC Edwards for repair or replacement. EXDC LED fault find ing Symptom...

  • Page 19: Stor Age And Dis Posal

    STOR AGE AND DIS POSAL Stor age Fit protective covers over the electrical connections and store the EXDC in clean dry conditions until required. When required for use, prepare and install the EXDC as described in Section 3 of this manual. Dis posal Dispose of the EXDC and any components safely in accordance with all local and national safety and environmental requirements.

  • Page 20: Return Of Boc Edwards Equipment

    7. If the equipment is large, strap the equipment and its accessories to a wooden pallet. If the equipment is too small to be strapped to a pallet, pack it in a suitable strong box. 8. Fax or post a copy of the Declaration (HS2) to BOC Edwards. The Declaration must arrive before the equipment.
  • Page 21 Read the Return of BOC Edwards Equipment - Procedure (HS1) before you complete this Declaration • Contact BOC Edwards to obtain a Return Authorisation Number and to obtain advice if you have any questions • Send this form to BOC Edwards before you return your equipment...
  • Page 22 7KLV SDJH LQWHQWLRQDOO\ EODQN...
  • Page 23 PLEASE CONTACT ANY OF THE ABOVE FOR DETAILS OF OTHER SALES AND SERVICE CENTERS IN YOUR AREA. BOC Edwards is part of BOC Limited. BOC Edwards and the stripe symbol are trade marks of The BOC Group © BOC Edwards 2004 Publication No.
