Superior Electronics AirCo Manual

MANUAL: AIRCO
INSTRUCTION MANUAL
1 9
10
11
2
12
3 13
14
4 15
16
5
6 17
18
7
19
8
20

AIRCO CONFIGURATION

Please insert 2 alkaline batteries 1,5V type AAA.
There are two 2 ways to configure your new remote control A/B:

A) DIRECT CODE SETUP

1. Check the code list, please find the right code for your brand (major brands have got multiple codes to test)
Power on the air conditioner manually and aim the remote control towards the air conditioner.
2. Hold the "SET" Key (at least 3 seconds) until the code flashes in the display.
Press Temperature Keys "+" or "-" to reach the right code you want to choose.
3. Press the "OK" Key and the code will be stored.
4. Check wheter the keys on the remote control work normally. If not, repeat steps 2/3/4
until finding a suitable code.

B) MANUAL CODE SEARCH

1. Power "on" the air conditioner manually and aim the remote control towards the air conditioner.
2. Press and keep pressed the "SET" Key until the code flashes in the display,
now browse all the codes by pressing the Temperature "+" Key until the air conditioner
automatically turns off. Press the "OK" Enter Key to store the right code and finish the setup procedure.
All manuals and user guides at all-guides.com
FEATURES

FAST COOL / FAST HEAT FUNCTION

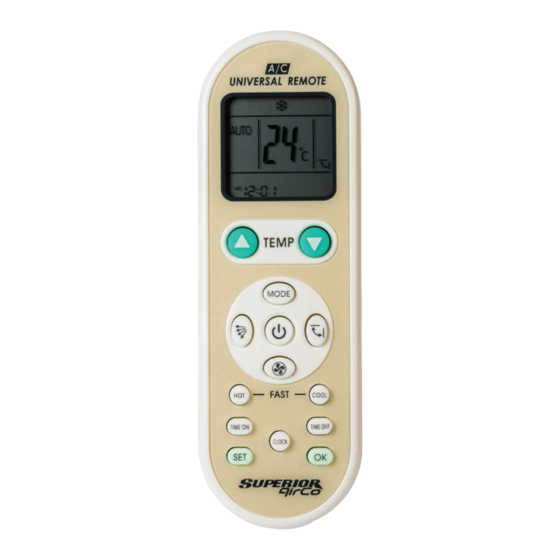

REMOTE CONTROL KEYBOARD

1. Temperature Display Press "COOL" Fast Cool Key to automatically set the air conditioner to 21°C, middle fan and automatic blowing direction.
2. Fan Display
Press "HOT" Fast Heat Key to automatically set the air conditioner to 27°C, middle fan and automatic blowing direction.
3. Temperature "+' key
4. Fan Direction Control key

TIMING ON/OFF FEATURE

5. Fan Key
Press "TIME ON" Key to increase the starting time for the air conditioner by 1 hour. The displayed time is the time when air
6. HOT Fast Heat Key
7. TIME ON Timer On Key
conditioner will automatically be switched on.
8. SET
Pressing "TIME OFF" Key will delay the time air conditioner will be turned off by 1 hour each time the key is pressed.
9. Run Mode Display
Always aim the remote control towards the air conditioner while operating on the remote control.
10. Signal Display
11. Fan Direction Display

SETTING TIME FUNCTION

12. Brand Code
13. Temperature "-" key
Press "CLOCK" Key to enter the clock setting state, clock will flash.
14. MODE Key
Now adjust the current time by pressing Temperature "+" "-", once done press "CLOCK" Key again to exit the menu.
15. Automatic Fan Direction
16. POWER
17. COOL Fast Cool Key
18. TIME OFF Timer off Key

WARRANTY

19. OK Enter Key
This product is covered by a 2 years guarantee from the date of purchase against any manufacturing defects,
20. CLOCK
excluding any defects arising from improper use. A purchase document must be produced along with the request
of repairing. Costs of return are at buyer's expense.
ATTENTION
In compliance with directive 2012/19/EU D.L N° 49/2014, Superior Srl, being the supplier of this product issues
the following information: it is mandatory not to dispose of the RAEE as if were urban waste, but to collect them
separately. When delivering the product upon purchasing a new one, the same manufacturer shall provide
recycling through implemented and approved measures. This information is provided in order to prevent
potential effects on the environment and human health due to the presence of dangerous substances in
electronic equipments or due to an improper use. Therefore every electronic equipment sold shall be subject to
to this directive and shall be marked with the symbol shown here below.

DECLARATION OF CE CONFORMITY

This product has been manufactured and supplied in compliance with all relevant
regulations and directives valid for all member states of European Union.
Formal documentation is kept by Superior Srl and available upon request.
