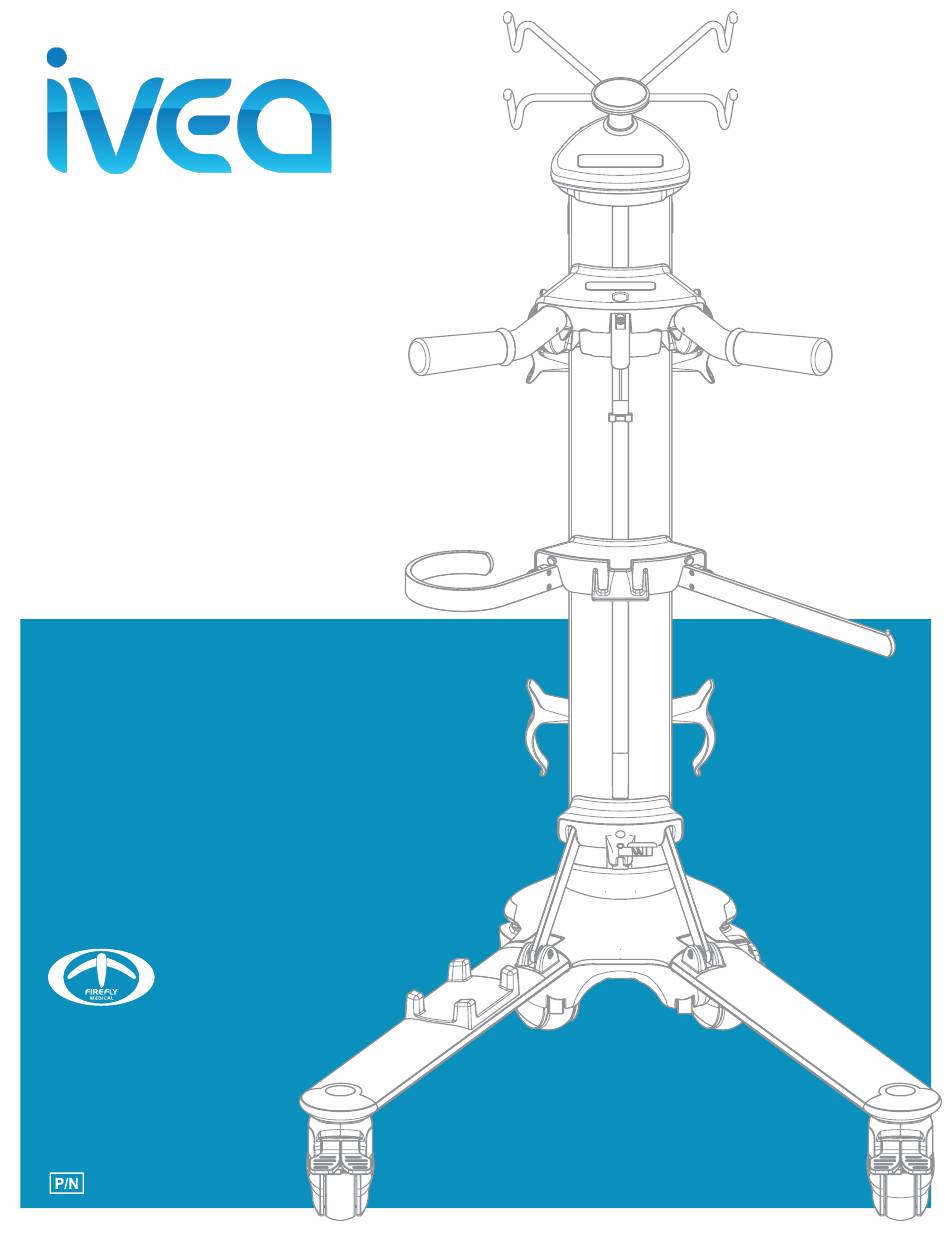

- Page 1 ® ® by Firefly Medical 600S RECOMMENDED INSPECTION AND MAINTENANCE Designed to help improve ® ® iveamobility.com 16282-A...
-
Page 2: Table Of Contents
This guide is designed to assist you in maintaining your IVEA. See also IVEA 600S User Manual for additional instructions on maintenance, disinfection, and troubleshooting. Table of Contents Recommended Safety Precautions ............... 3 Recommended Quarterly Inspection and Maintenance . -
Page 3: Recommended Safety Precautions
WARNINGS and CAUTIONS • It is recommended that personnel who inspect and adjust IVEAs first familiarize themselves with the Warnings and Cautions related to IVEA caregiver/patient use located in the IVEA 600S User Manual IVEA® 600S • Recommended Inspection and Maintenance... -
Page 4: Recommended Quarterly Inspection And Maintenance
Recommended Quarterly Inspection and Maintenance Perform these inspections every 3 months or more frequently. Pole Adjustment Lever: see page 10 2X Handle Release Buttons: 2X Grips: in good condition; pop out fully when handles secure on handle tubes are deployed Orange Lock Pin Indicator: flush when IVEA deployed IVEA should sit squarely... -
Page 5: Recommended Annual Inspection And Maintenance
Recommended Annual Inspection and Maintenance In addition to quarterly inspections, perform these inspections every year or more frequently. IV Hooks: not distorted from original shape IV Pole: telescopes freely; stops at full extension; maintains 2X Spring Buttons: rotational alignment protrude & lock IV Hooks securely to IV Pole Top Cap: secure;... - Page 6 Recommended Annual Inspection and Maintenance (cont.) In addition to quarterly inspections, perform these inspections every year or more frequently. 18X Screws on underside of both legs: if loose, retighten to fully seated 6X Screws on underside of cover: if loose, retighten to fully seated using a T20 Torx driver In fully latched condition, move...
-
Page 7: Recommended Accessory Bracket Assembly (16276S) Arm Retightening Procedure
Accessory Bracket Assembly (16276S) Arm Retightening Tools/supplies: T20 screwdriver; Long solid-shaft 5mm hex key or slender hex screwdriver; 3mm hex key or hex screwdriver. 1. Locate and remove 3 T20 Plastite Screws (A) and Catheter Bag Hook (B). 2. Locate Access Hole (C) of Accessory Bracket (D). Insert 5mm hex key or hex screwdriver through hole to engage drive socket of Hex Socket Screw (E) inside Bracket. -
Page 8: Recommended Caster Retention Adjustment Procedure
7. Push the caster the rest of the way into place, embedding the hexagonal plate in its mating recess. 8. Check the locking and braking functions of the caster to assure that they are all operational. See IVEA 600S User Manual. -
Page 9: Recommended Handle Bracket Clamp Tension Adjustment Procedure
Handle Bracket Clamp Tension Adjustment If handle bracket is drifting down in use: Tools/supplies: 5mm hex key or driver. weights totalling 75lb to 100lb. 1. Loosen the blue Lock Lever (A) and raise the Handle Bracket to its highest position. Lock the lever. 2. -
Page 10: Recommended Iv Pole Clamp Tension Adjustment Procedure
IV Pole Clamp Tension Adjustment Tools/supplies: 3mm hex key or driver; IV bags or similar hangable weights totalling 11lb. 1. Clean/disinfect IV pole to remove oils, lotion residues, etc. 2. Place a typical set of IV bags or equivalent weight totalling 14lb on the IV hooks of the IVEA, unlock and extend the IV Pole to half of full extension, supporting the IV Pole by hand. -
Page 11: Disposal
Disposal NOTE: This product or any part removed from it, upon retirement from service, should be disposed of in compliance with your institution’s disposal policies. The aluminum components of the IVEA (mast, handles, equipment pole, IV pole, legs, brackets) are recyclable if all attached components are removed. IVEA®... - Page 12 600S RECOMMENDED INSPECTION AND MAINTENANCE ® ® by Firefly Medical Designed and Manufactured by: Firefly Medical, Inc. P.O. Box 2022 Fort Collins, CO 80522 16282-A IVEA® 600S • Recommended Inspection and Maintenance...
