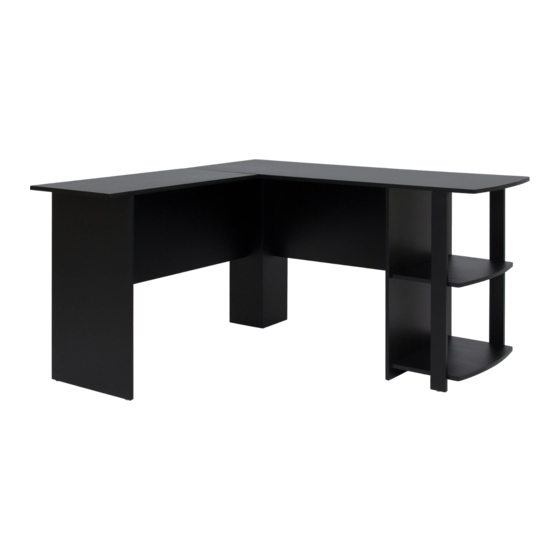

- Page 1 INSTRUCTION MANUAL L-Shaped Corner Computer Desk SKY2680 Ver. 5...
- Page 2 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
- Page 3 NOTICE Please retain these instructions for future reference. • Please do not exceed the weight limitations of this item. • Do not stand on or use any part of this item as a step ladder. • Firmly secure all bolts, screws and knobs before use. •...
- Page 4 PARTS SHORT TABLE LONG TABLE LONG TABLE LEFT LEG RIGHT LEG RIGHT LEG 1 PC 1 PC 1 PC SHORT BOARD SHELF SUPPORT LONG BOARD 1 PC 1 PC 2 PCS BRACKET SHELF 1 PC 2 PCS TIGHTENING CAMLOCKS Screw cam bolt Insert cam bolt and cam lock into Screw cam lock in completely.
-
Page 5: Back View
PRODUCT ASSEMBLY Screw four part A cam bolts into the part 4 long table left leg and part 6 long table right leg. Insert the cam bolts on the long table left/right legs into the part 9 long board. Insert four part D cam locks into the table back, and attach the legs by locking the cam locks. - Page 6 PRODUCT ASSEMBLY Screw eleven part A cam bolts into the part 3 short table left leg and part 5 short table right leg. NOTE: Some of the embedded holes are covered with PVC, which can be directly screwed with part A cam bolts. Insert the cam bolts on the short table left/right legs into the part 8 short board.
- Page 7 PRODUCT ASSEMBLY Insert the cam bolts on the short board table into the long board table. Insert three part D cam locks into the long board table, and attach the tables together by locking the cam locks. Insert eight part C feet onto the table. BACK VIEW...
- Page 8 PRODUCT ASSEMBLY Insert two part 10 shelves onto the cam bolts on the side of the short board table. Insert four part D cam locks into the shelves, and attach the shelves by locking the cam locks.
- Page 9 PRODUCT ASSEMBLY Screw four part A cam bolts into two part 7 shelf supports, two bolts per shelf. Insert the shelf supports into the sides of the short board table. Insert four part D cam locks into the shelves and shelf supports, and attach the shelf supports by locking the cam locks. Insert two part C feet onto the shelf supports.
- Page 10 PRODUCT ASSEMBLY Screw twelve part A cam bolts into the part 1 long tabletop and part 2 short tabletop. Insert the cam bolts on the long/short tabletops into the table frame. Insert twelve part D cam locks into the table frame, and attach the tabletops to the frame by locking the cam locks.
- Page 11 PRODUCT ASSEMBLY Attach the part 11 bracket with four part B screws.
-
Page 12: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
