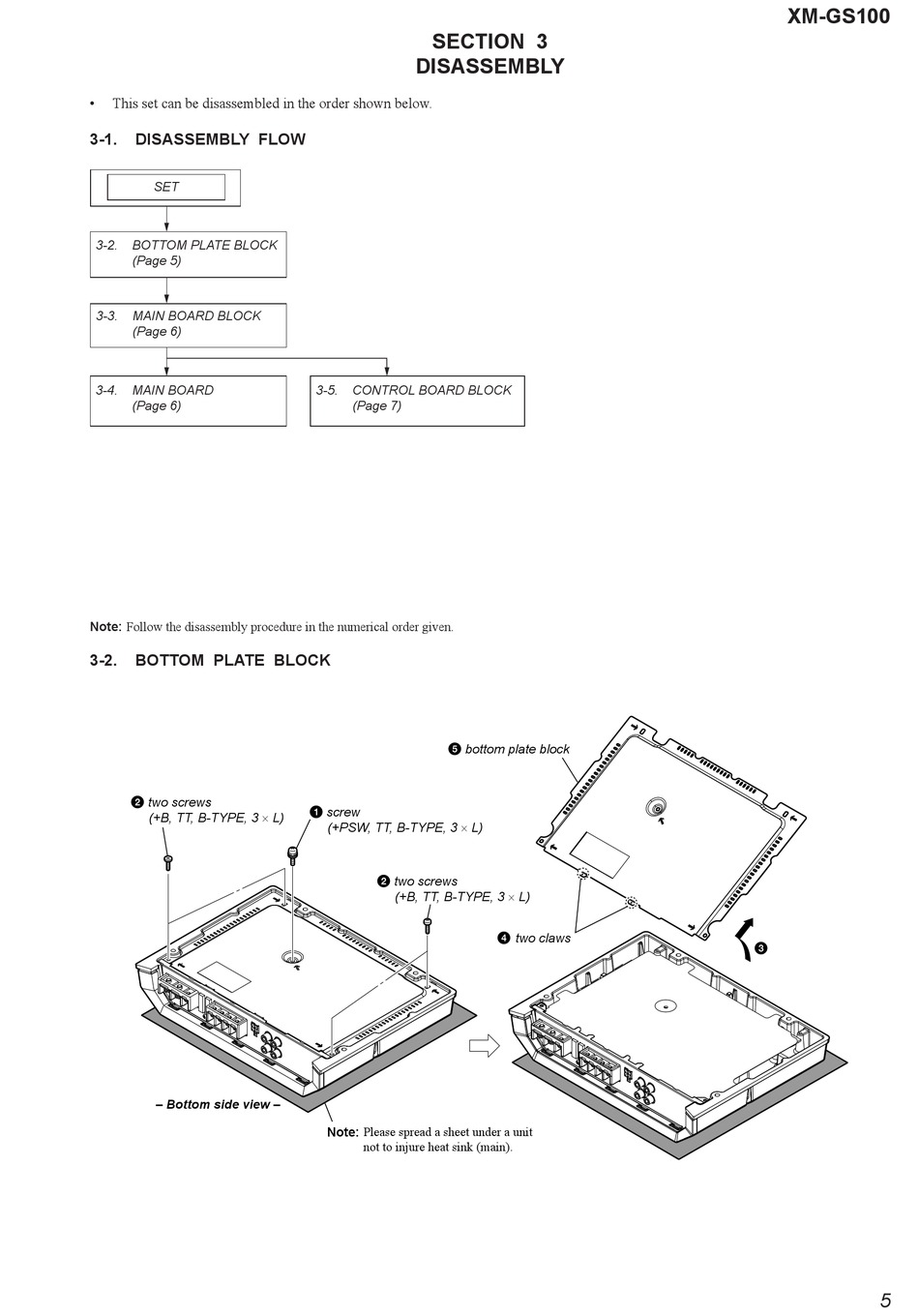

This set can be disassembled in the order shown below.
3-1.
DISASSEMBLY FLOW
SET
3-2.
BOTTOM PLATE BLOCK
(Page 5)
3-3.
MAIN BOARD BLOCK
(Page 6)
3-4.
MAIN BOARD
(Page 6)
Note: Follow the disassembly procedure in the numerical order given.
3-2.
BOTTOM PLATE BLOCK
2 two screws
(+B, TT, B-TYPE, 3
– Bottom side view –
SECTION 3
DISASSEMBLY
3-5.
CONTROL BOARD BLOCK
(Page 7)
1 screw
L)
(+PSW, TT, B-TYPE, 3
2 two screws
(+B, TT, B-TYPE, 3
Note: Please spread a sheet under a unit
not to injure heat sink (main).
5 bottom plate block
L)
L)
4 two claws
XM-GS100
3
5
