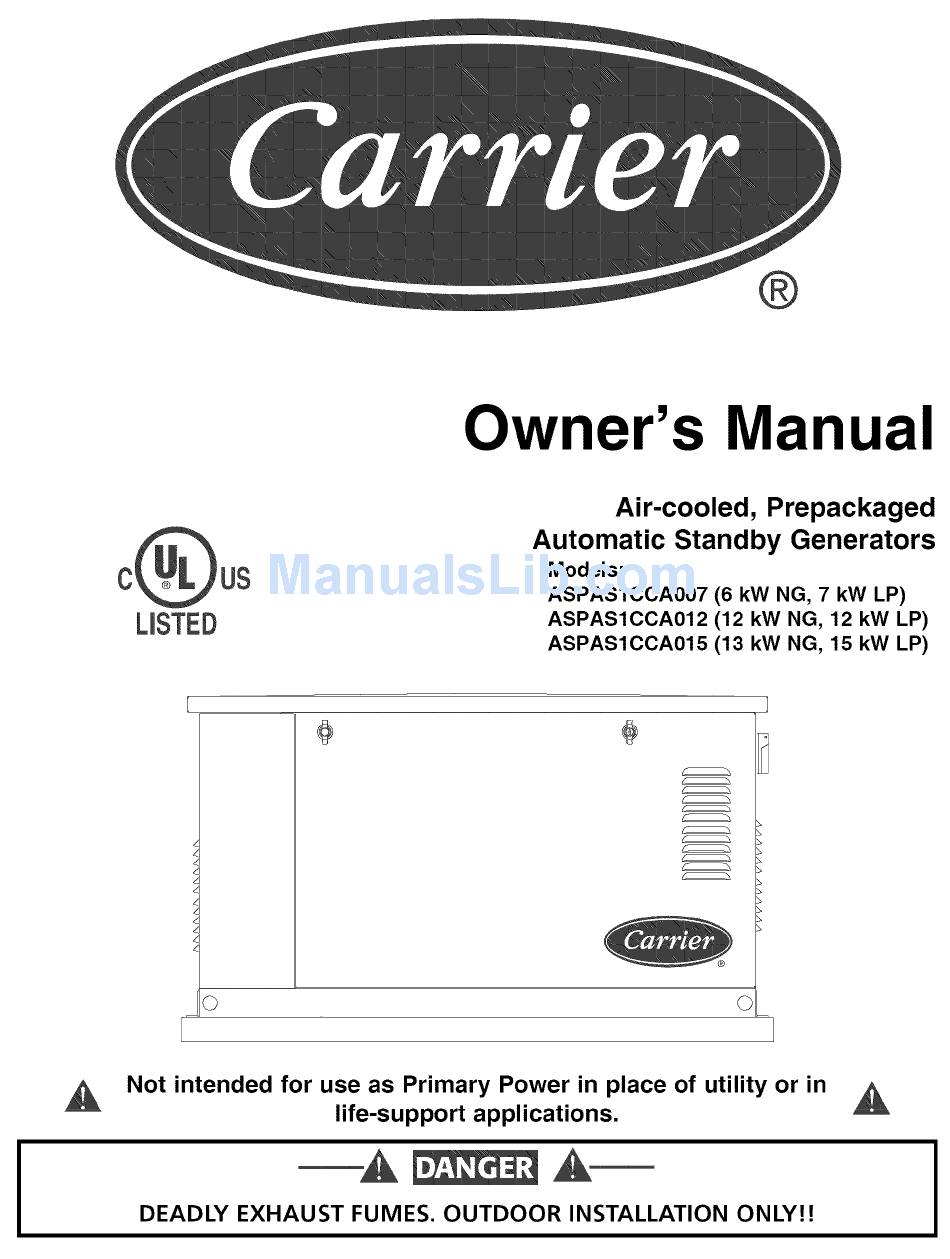

Owner's Manual
US
Air-cooled, Prepackaged
Automatic Standby Generators
Models:
ASPASICCA007
(6 kW NG, 7 kW LP)
ASPASICCA012
(12 kW NG, 12 kW LP)
ASPASICCA015
(13 kW NG, 15 kW LP)
©
Not intended for use as Primary Power in place of utility or in
life-support applications.
DEADLY
EXHAUST
FUMES. OUTDOOR
INSTALLATION
ONLY!!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carrier CARRIER ASPASICCA012
Summary of Contents for Carrier CARRIER ASPASICCA012
- Page 1 Not intended for use as Primary Power in place of utility or in life-support applications. DEADLY EXHAUST FUMES. OUTDOOR Owner's Manual Air-cooled, Prepackaged Automatic Standby Generators Models: ASPASICCA007 (6 kW NG, 7 kW LP) ASPASICCA012 (12 kW NG, 12 kW LP) ASPASICCA015 (13 kW NG, 15 kW LP) INSTALLATION...
-
Page 2: Introduction
• This including warranty, electrical diagrams, exploded views and lists of repair parts, for three different Carrier models: • ASPAS1CCA007 - 6 kW NG, 7 kW LP, single-cylinder • ASPAS1OCA012 - 12 kW NG, 12 kW LP, V-twin GT- • ASPAS1COA015 - 13 kW NG, 15 kW LP, V-twin GT-... -
Page 3: Table Of Contents
Automatic Transfer Operation Sequence of Automatic Operation ... 10 Manual Transfer Operation ... 11 Setting the Exercise Timer ... 11 Protection Systems ... Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators Section 3 - Maintenance ... 4 3.10 3.11 Section 4 - Service ... -
Page 4: Safety Rules
SAFETY RULES IMPORTANT SAFETY INSTRUCTIONS Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators SAVE THESE INSTRUCTIONS operation be copied and posted near the unit's installation operators and potential operators of this equipment. Study these SAFETY RULES carefully before installing, operating or servicing this equipment. -
Page 5: Electrical Hazards
LIQUIDS CODE, available same as Item 1. SAFETY R ULES National Fire extinguisher or on Install the fuel code. After periodically COMBUSTION 470 Atlantic ELECTRICAL FACILITIES, GAS CODE, OF NATIONAL CODE, available 85 John available STANDBY from Engineers, 2950 Carrier... -
Page 6: Section I - General Information
• Section 1 -- General Information GENERAL Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators NFORMATON _Only qualified electricians attempt such installations, which must comply strictly with applicable codes, standards and regulations. UNPACKING/INSPECTION After unpacking, carefully inspect for damage. -
Page 7: The Generator
Oil Filler " Battery / Compadrnant GT-990 Engine Data Dipstick Deaa \ Oil Filler/' Comparlment Conirol GFCI ... Outlet Fuel Fuel -" " Inlel Composite Base Contrd Panel GFCI Outlet Fuel Regulator Fuel --" Inlet Base _o@os.e GENERAL INFORMATION Carrier... -
Page 8: Specifications
• Section 1 -- General Information GENERAL Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators NFORMAT O N SPECIFICATIONS 1.5.1 GENERATOR Model Rated Max. Continuous Power Capacity (Watts*) Rated Voltage Rated Max. Continuous Load Current (Amps) 120 Volts**... -
Page 9: Fuel Consumption
If the utility power supply is not turned off, sparking can occur at the battery posts and cause an explosion. GENERAL INFORMATION where water to the THAT REGULATE this generator This type use only. Follow level switch against excessive Carrier... -
Page 10: 1.10 Battery Installation
Section 1 -- General Information GENERAL Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators INFORMATION 1.10 BATTERY INSTALLATION Fill the battery with the proper necessary and have the battery fully charged installing it. Before installing and connecting the following steps:... -
Page 11: Section 2 - Operation
Disconnect cables as outlined in "General Hazards" (page 2). Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators 12. Drain the oil and remove the oil filter. Replace the oil of batteries and the personnel 13. Reconnect the battery cables as outlined in "General... -
Page 12: Automatic Transfer Operation
OPERATION Section 2 -- Operation Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators AUTOMATIC TRANSFER OPERATION To select automatic operation, do the following: Make sure the transfer switch main contacts are set to their UTILITY position, i.e., loads connected to the utility power source (Figure 2.2). -
Page 13: Manual Transfer Operation
Set the generator's main circuit breaker to its ON (or closed) position. The standby powers the loads. Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators When utility power has been restored, transfer back to that source and shut down the generator. This can be accomplished switch... -
Page 14: Protection Systems
OPERATION Section 2 -- Operation Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators NOTE: The exerciser will only work in the AUTO mode and will not work unless this procedure is performed. The exerciser will need to be reset every time the 12-volt battery is disconnected and then reconnected. -
Page 15: Section 3 - Maintenance
(Section loss of generator power to emergency circuits. Figure 3.2 -- Oil Dipstick Dipstick and Fill Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators Control Panel Section 1.5. For Section 3.3.1. -
Page 16: Changing The Oil Filter
Section 3 -- Maintenance MAINTENENANCE Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators Figure 3.4 - Oil Drain Hose and Filter Low OHSwitch ¢ OHFHter CHANGING THE OIL FILTER Change the engine oil filter as follows: With the oil drained, remove the old oil filter by turning it counterclockwise. -
Page 17: Battery Maintenance
It is electrically conductive and corrosive. procedures are to be observed: Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators • Wear full eye protection Spark Plug • Where electrolyte •... -
Page 18: Corrosion Protection
Section 3 -- Maintenance Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators MAINTENENANCE Figure 3.8 - Coofing Vent Locations °_ WARNING _The exhaust from this product gets extremely hot and remains hot after shutdown. High grass, weeds, brush, leaves, etc. must remain clear of the exhaust. -
Page 19: Section 4 - Service
Air cleaner Spark plug(s) GENERAL CONDITION Vibration, Noise, Leakage, Temperature* COMPLETE TUNE-UP* Section Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators It is recommended that all service work by the nearest PROCEDURE Inspect Change TO BE COMPLETED BY A... -
Page 20: Section 5 - Troubleshooting
TROUBLESHOOTING Section 5 - Troubleshooting Carrier Air-cooled 7 kW, 12 kW and 15 kW Generators TROUBLESHOOTING GUIDE PROBLEM The engine will not crank. The engine cranks but will not start. The engine starts hard and runs rough. The Auto/Off/Manual switch is set to OFF, but the engine continues to run. -
Page 21: Section 6 - Warranty
For a period of two years from the date of original sale, warrants that its generator will be free from defects in material and workmanship for the items and period set forth below. Carrier will, at its option, repair or replace any part which, upon examination, inspection and testing by a Carrier Dealer, is found to be defective. -
Page 22: California Emission Control Warranty Statement
Owner's Manual. For warranty purposes, Generac recommends However, Carrier cannot deny warranty solely due to the lack of receipts or for your failure to ensure the completion of all scheduled maintenance. - Page 23 Such use voids this ECS Warranty and shall be sufficient grounds for disallowing an ECS Warranty claim. Generac shall not be held liable hereunder for failures of any warranted parts of a Carrier engine caused by the use of such an unapproved, modified, counterfeit and/or "grey market"...
- Page 24 ® PART NO. 0F6902 CATALOG NO. OMASPAS07-2 REV. * (6/01/05) PRINTED IN U.S.A.
