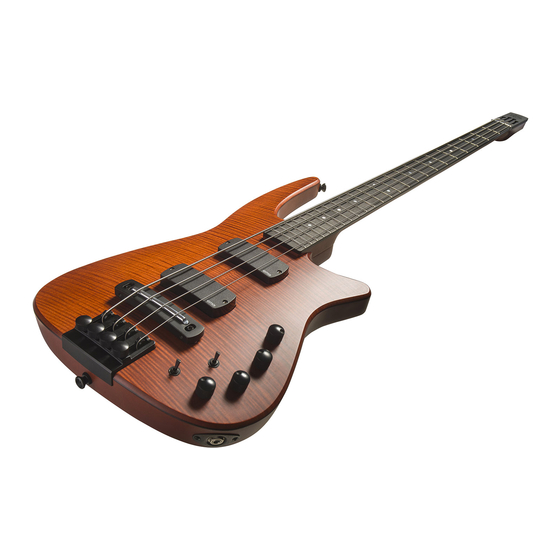

ns design NS-CR4 Radius Bass Owner's Manual

Hide thumbs Also See for NS-CR4 Radius Bass:
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com

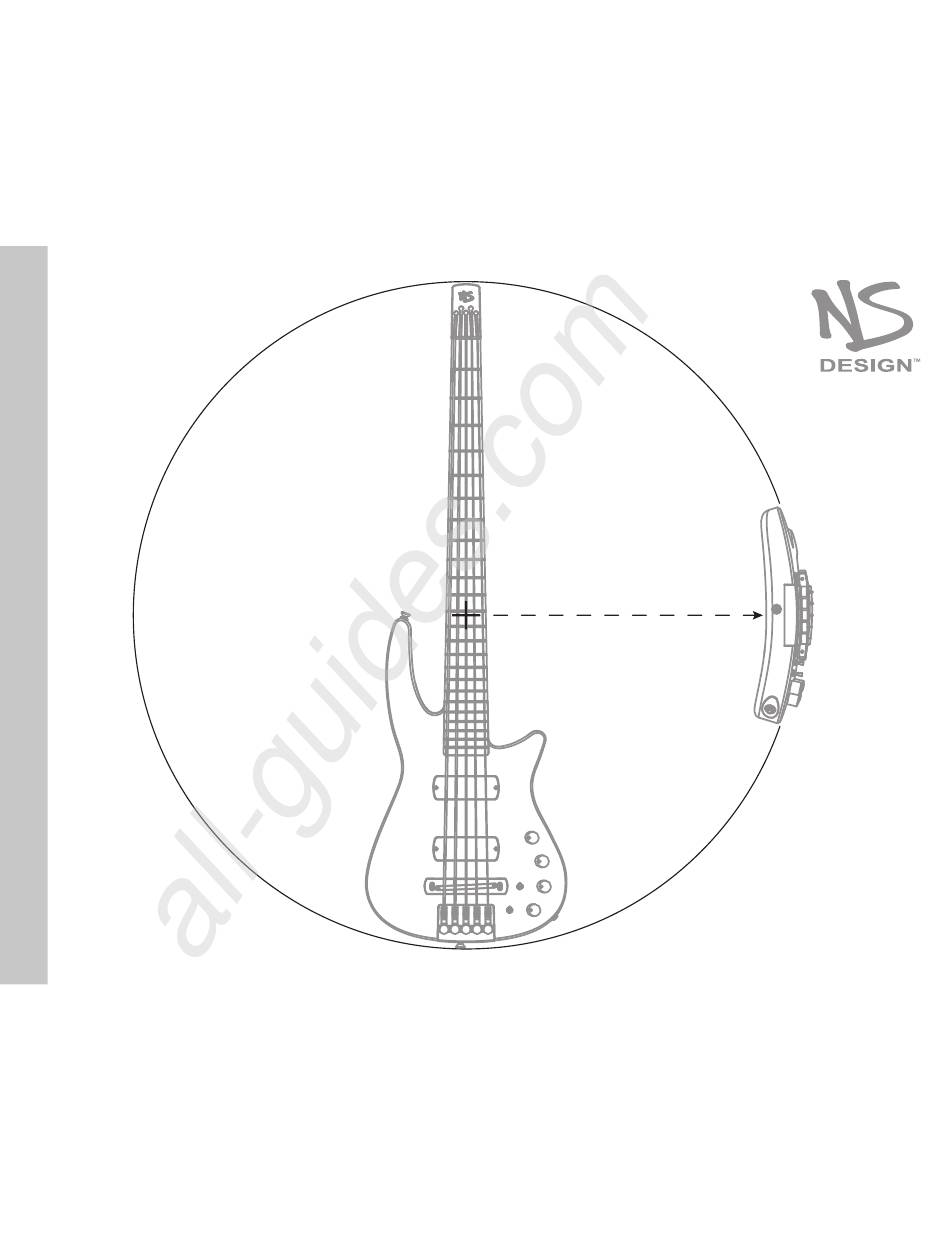

radius
NS-CR4/5 R
B
adiuS
aSS
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-CR4 Radius Bass and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ns design NS-CR4 Radius Bass

Summary of Contents for ns design NS-CR4 Radius Bass

  • Page 1 All manuals and user guides at all-guides.com radius NS-CR4/5 R adiuS Owner’s Manual...
  • Page 2 All manuals and user guides at all-guides.com © 2013 NS Design The contents of this document, including all graphics, are the property of NS Design. NS Design has made every reasonable effort to ensure that all the information contained in this manual is correct at the time of publishing.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Overview (Front) Overview (Back) Re-Stringing and Tuning Setting Up the Bass Setting the intonation ........................17 Setting the action ........................19 Adjusting the truss rod ........................21 Replacing the Batteries Specifications Accessories NS-CR4/5 Radius Bass Owner’s Manual...
  • Page 4 All manuals and user guides at all-guides.com Piezo EQ EMG pickups high – mid – low bridge – both – neck Volume Bass cut – boost Blend Treble Piezo – EMG cut – boost NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 5: Overview (Front)

    All manuals and user guides at all-guides.com Overview (Front) Overview Features 1 Aluminum headplate with ball-end string.mounting slots 2 Magnetic pickups (EMG) unique design matched to the fretboard radius 3 Bridge with one piece aluminum saddle and integrated Polar Piezo pickup system 4 Tuner housing with self-clamping precision tuning system 5 Volume pot...
  • Page 6 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 7: Overview (Back)

    All manuals and user guides at all-guides.com Overview (Back) Overview Features 12 Electronics compartment cover 13 Battery compartment cover can be opened separately for battery replacement 14 Thumb screw for battery compartment cover 15 String aperture NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 8: Re-Stringing And Tuning

    All manuals and user guides at all-guides.com Re-Stringing and Tuning This bass accepts any standard single-ball end, full-scale bass guitar strings. The way the strings are clamped leaves them undamaged and without the usual windings on the end. This lets you easily take them out (e.g.
  • Page 9 All manuals and user guides at all-guides.com To install strings: 2 Put the ball end of the new string into the slot on the headplate. 3 Pull the string towards the neck and guide it over the nut. NS-CR4/5 Radius Bass Owner’s Manual...
  • Page 10 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...
  • Page 11 All manuals and user guides at all-guides.com 4 Guide the other end of the string through the opening behind the slotted tuning arm. If you have difficulties to guide the string into the tuning mechanism, check if the tuning arm is in the frontmost position (which at the same time fully opens up the clamping mechanism).
  • Page 12 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...
  • Page 13 All manuals and user guides at all-guides.com After all strings are installed and tuned up to pitch: 8 Turn the bass over. 9 Cut the strings within the recessed aperture of the body, so that their ends don’t stick out. Bass strings are hard and may have sharp or pointy ends.
  • Page 14 All manuals and user guides at all-guides.com String action Intonation Intonation String action NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 15: Setting Up The Bass

    All manuals and user guides at all-guides.com Setting Up the Bass If you are not familiar with setting up a bass, you should ask a qualified bass and guitar technician for help. Most set-up steps are easy, but if done wrong there is potential damage to the instru- ment.
  • Page 16 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 17: Setting The Intonation

    All manuals and user guides at all-guides.com Setting the intonation The horizontal bridge position is locked by two screws on each side (3/32" hex wrench, provided with the bass). By loosening these screws you are able to move the bridge on the respective side back and forth to adjust intonation.
  • Page 18 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 19: Setting The Action

    All manuals and user guides at all-guides.com Setting the action The bridge has two posts which can individually be adjusted for each side. To set up the string action: 1 Using a 3/32" hex wrench, slightly loosen one of the screws locking the bridge on the bridge post (see page 17).
  • Page 20 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 21: Adjusting The Truss Rod

    All manuals and user guides at all-guides.com Adjusting the truss rod Improper truss rod adjustment can permanently damage the neck. If you are unsure why and how to adjust neck relief, ask a qualified guitar and bass technician for help. For adjustment, use a 5 mm hex wrench (provided with the bass).
  • Page 22 All manuals and user guides at all-guides.com NS-CR4/5 Radius Bass Owner’s Manual...

  • Page 23: Replacing The Batteries

    All manuals and user guides at all-guides.com Replacing the Batteries The active preamp/EQ in your bass is supplied by two 9V batteries. To replace the batteries: 1 Open the thumb screw on the battery compartment cover. 2 Remove the cover. 3 Pull on the strip protruding behind the upper battery.

  • Page 24: Specifications

    All manuals and user guides at all-guides.com Specifications Overall Length 41.5" 43" Body Length 20.8" 20.8" Neck scale 34" 35" Neck radius 15" 15" Weight 8.4 lbs / 3,8 kg 8.63 lbs / 3,9 kg Bridge Spacing 19 mm 18 mm Nut Width 1.60"...

  • Page 25: Accessories

    All manuals and user guides at all-guides.com Accessories CR Radius Bass Guitar Padded Gig Bag Tools 7/64" Hex Tool for Pickup Height 3/32" Hex Tool for Bridge Intonation / Position 5/32" Hex Wrench for Bridge Height / Action 5 mm Hex Wrench for Truss Rod Adjustment Standard Strings for CR Radius Bass * D’Addario EXL170 Nickel Round Wound Bass Strings...
  • Page 26 All manuals and user guides at all-guides.com Notes: NS-CR4/5 Radius Bass Owner’s Manual...
  • Page 27 All manuals and user guides at all-guides.com Notes: NS-CR4/5 Radius Bass Owner’s Manual...
  • Page 28 All manuals and user guides at all-guides.com NS Design 134 Back Meadow Rd Nobleboro, ME 04555 phone: (207) 563-7705 email: info@nedsteinberger.com http://thinkns.com...
