- Page 1 OPERATION MAINTENANCE INSTRUCTION MANUAL AEU-707A & AEU-707AV2 Implant / Surgery Systems...
-
Page 2: Table Of Contents
Operation Functions ....4 (425) 487-3157 • (800) 426-5913 www.aseptico.com • info@aseptico.com Speed Ranges ..... . .4 Operation . -
Page 3: Introduction

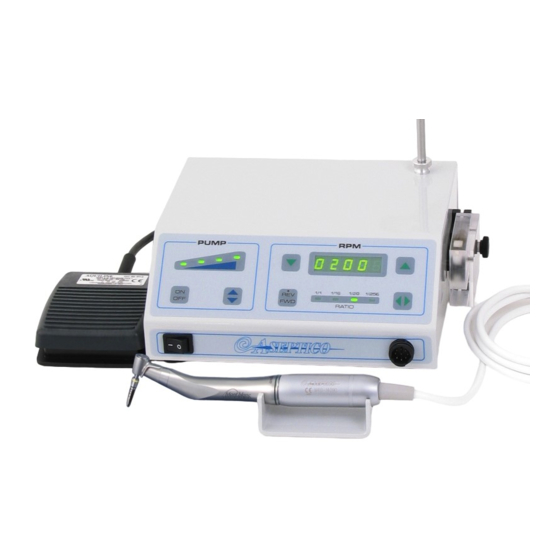

Your new Aseptico AEU-707A or AEU-707AV2 Implant / Surgery System is one of the finest units available to the medical profession. The system features a high torque brushless motor with digital RPM readout and self-contained irriga- tion pump. These features combine to make the perfect surgical motor and irri- gation system for implant and other bone surgeries. -
Page 4: Setting Up The Unit
SETTING UP THE UNIT: 1. Unpack the console and check that the Fig.1 - Setup voltage selector switch on the back is in the proper position. Use the 110V position for BAG HANGER ROD 110-120V 60Hz voltages, and the 220V position for the 220-250V 50Hz voltages. - Page 5 7. Install irrigation tubing set in pump. Fig.2 - Console Back POWER CAUTION: Never connect or disconnect VOLTAGE CORD IN the bag spike to the irrigation bag over SELECTOR SWITCH the console. Waste spilled onto the con- sole can damage the unit. a.
-
Page 6: Operation Functions
Different handpiece ratios are required to obtain high torque, low speeds used in surgery. The speed ranges with a 30K motor are shown in Figures 5a (AEU-707A) and 5b (AEU- 707AV2). -
Page 7: Operation
OPERATION: After the unit has been set up and you have Fig.6 - Console Front (AEU-707AV2 shown) made yourself familiar with the operation func- tions, you are ready for operation as follows: DISPLAY FLOW 1. Turn the power switch on the lower left DISPLAY DECREASE INCREASE... -
Page 8: Sterilization And Maintenance
O-rings. cloth or towel to remove any remaining signs of debris. NOTE: Call Aseptico, Inc. at 1-800-426-5913 for any questions or clarifications on this Sterilize sterilization procedure. -
Page 9: Troubleshooting
TROUBLESHOOTING: Problem: Correction: Console does not light when • Check console to power connection. turned on: • Check that Voltage Selector is set for the proper voltage. • Check fuse. If blown, replace with 1A/250V slo-blo fuse for 110 volts, & 0.5A/250V slo-blo fuse for 220 volts. - Page 10 NOTES:...
- Page 11 NOTES:...
-
Page 12: Warranty
Aseptico's sole obligation under product warranty is (at its sole option and discretion) to repair or replace any defective component or product in part or whole. Aseptico shall be the sole arbiter of such action.
