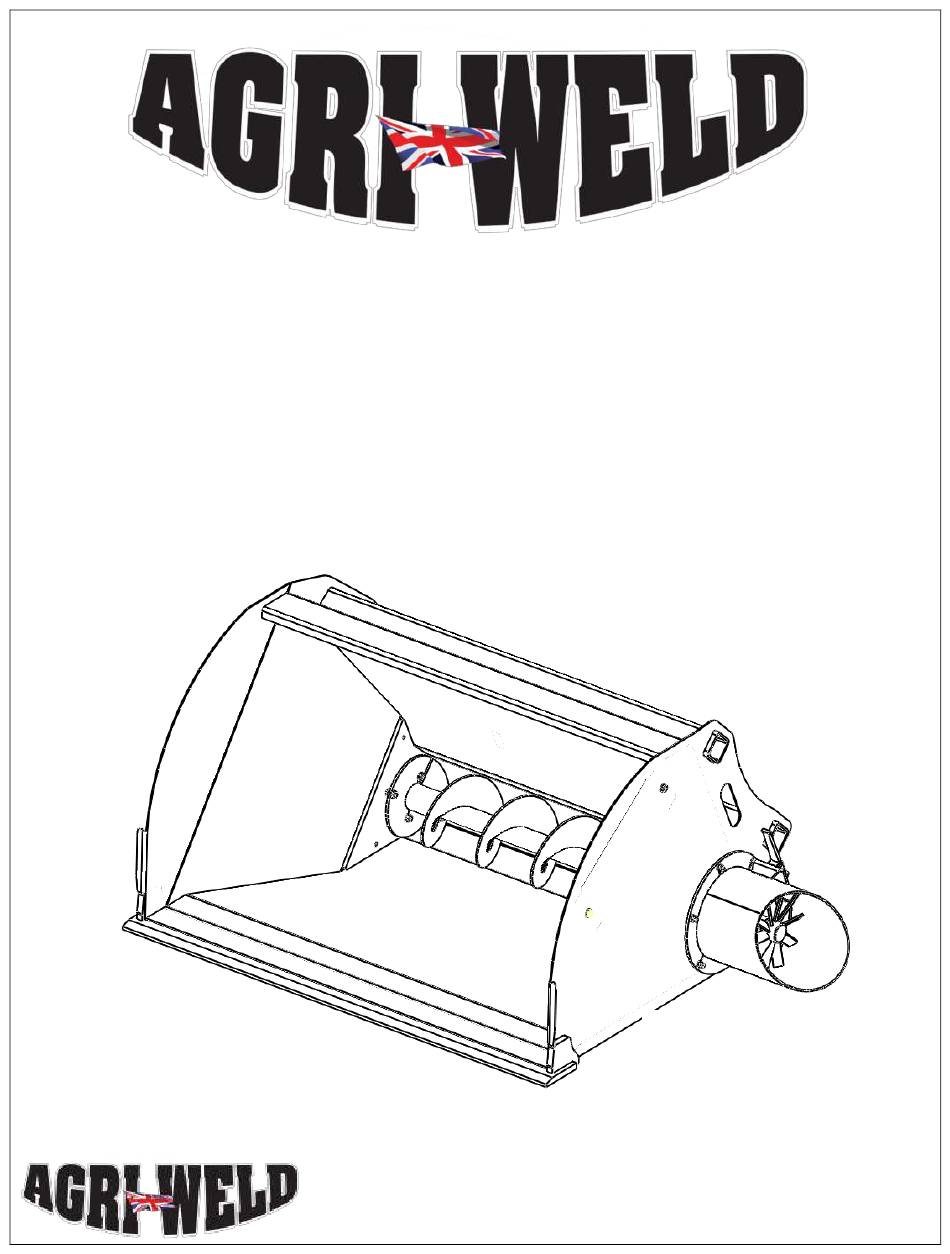

- Page 1 OPERATOR MANUAL DIRECT DRIVE ROOT/CEREAL BUCKET MICRO, MINI, 6’6 & 7’6 MODELS The Workshops Main Street Garton-on-the-Wolds Driffield, YO25 3ET Tel: 01377 259140 Contents www.agriweld.co.uk Email: sales@agriweld.co.uk...
- Page 2 Page 3 User Information, Getting Started & Weight and Capacity Spout Fitting Instructions for Mini, 6’6 and 7’6 Root/Cereal Page 4 Buckets Page 5 Spout Fitting Instructions for 4’ Micro Root/Cereal Bucket Page 6 Safety, Qualification & Training and General Safety Page 7 Important Safety Instructions Page 8...
-
Page 3: User Information
USER INFORMATION Before using your DIRECT DRIVE Root/Cereal Bucket for the first time it is important that all operators make themselves familiar with the unit and must read this Operator Manual attentively. GETTING STARTED Your DIRECT DRIVE Root/Cereal Bucket will be fitted and delivered with the correct brackets to suit the Skid Steer/Telehandler/front loader it is intended to fit. - Page 4 STANDARD SPOUT FITTING INSTRUCTIONS for Mini, 6’6 and 7’6 models 1. The Stone trap assembly requires bolting into position on bucket first via flange. 2. Push spout shaft fully in to nylon bush located on end of auger shaft (see drawing) 3.
- Page 5 Standard 4’ Micro Root/Cereal Spout Fitting Instructions Item Number Part Number Description Quantity per Machine SSMB_Ass_02 Spout Assembly SSMB_0409 Spout door SSMB_Spout_Lever Spout door release CR_Ny_Bush Nylon Bush AW_M10_NL M10 Nyloc nut AW_M10_W M10 Washer AW_M10x35_B M10 x 35mm Bolt...
-
Page 6: General Safety
Agriweld shall not be responsible for any damage/injury caused by the use of parts/repairs not supplied and/or approved by Agriweld. *Experienced persons are classed as those individuals who have been trained, have current knowledge and skills or have participated in the use of the type of activity and equipment for several years. -
Page 7: Important Safety Instructions
Operator needs to be aware of max load of their own forklift headstock. Agriweld will accept no responsibility for damage/failure or injury caused by operator error and overloading the bucket. - Page 8 CONNECTION TO THE FORKLIFT/LOADER Your DIRECT DRIVE Root/Cereal Bucket will be delivered already fitted with the correct bracketing, hydraulic fittings and hydraulic hose to fit your forklift/loader. If for any reason the fittings are lost or damaged they must be replaced with the following specification of fitting;...
- Page 9 Attach the hydraulic hoses via the pipes and fittings supplied to fit your forklift/loader whilst it is TURNED OFF. For eased the hoses are marked FEED and RETURN. FEED is to drive the auger forwards to discharge. RETURN will reverse the auger. YOU ARE NOW READY FOR OPERATION.
- Page 10 5. Release foreign object. 6. Close stone trap. 7. Re-start forklift and continue operation. Hydraulic stone trap options available. SETTING UP THE CROSS LINE RELIEF VALVE The Cross Line Relief Valve is fitted to the top of the hydraulic motor on your feeder bucket as additional protection for the motor and cutting die against damage from excessively high oil pressure and the effect from stones or other foreign bodies causing a blockage.
- Page 11 There should be minimum movement. If you notice excessive movement, take note and monitor more frequently. If you feel that the movement is increasing, please contact Agriweld as soon as possible for advice. 2. The non-drive end of the auger is fitted with a nylon bush which does not require greasing, however, it would prolong the lifespan of the bush if given a squirt of freeing oil such as WD40 or similar each week.
-
Page 15: Full Assembly
Full Assembly Cutting Die/Stone Discharge Auger Trap Bolt on Brackets Cross Line Relief Valve Hydraulic Pipe Bracket / Mounting Point for optional hydraulic valves, such as Hydraulic Motor sequence valve. -
Page 16: Auger Assembly
Auger Assembly Auger Assembly Parts List Item Number Part Number Description Quantity per Machine AW_DA Discharge Auger AW_CR_NY_Bush Nylon Auger Bush AW_M12_30 Auger Stop Bolt AW_M12W Auger Stop Washer AW_M12N Auger Stop Nut... - Page 17 Auger Drive Assembly Auger Drive Parts List Item Number Part Number Description Quantity per Machine MOMT500 Drive Motor Cross Line Relief AW_CLRV Valve Motor Movement AW_CR1501 Plate AW_M12_50_CS Motor Mounting Bolt Motor Mounting AW_M12W Washer AW_M12N Motor Mounting Nut AW_M10_50 Movement Plate Bolt Movement Plate AW_M10W...
- Page 18 Cutting Die/Manual Stone Trap Assembly Stone Trap/Cutting Die Parts List Item Number Part Number Description Quantity per Machine Cutting Die/Stone AW_CR_Spout Trap AW_STD Stone Trap Door AW_M10_30_CHS Cutting Die Bolt AW_M10W Cutting Die Washer AW_M10N Cutting Die Nut...
- Page 19 Standard Open Chute Assembly Open Chute Assembly Parts List Item Number Part Number Description Quantity per Machine AW_OC Open Chute AW_MF Manual Flap AW_M16_110 Manual Flap Bolt AW_M16W Manual Flap Washer AW_M16N Manual Flap Nut AW_MFP Manual Flap Pin Manual Flap Linch AW_LP6Z AW_M10_30CS, M10 Cup Square,...
- Page 20 Standard bolt-on mounting bracket assembly (example only) Mounting Brackets Parts List Item Number Part Number Description Quantity per Machine AW_M16_SB M16 Square Bend AW_M16W M16 Washer AW_M16N M16 Nut...
- Page 21 Agitator Shaft Agitator Shaft All Valves have been pre-set and do not need to be adjusted. Please keep ram pivots greased to maximize life span of pins and ensure smooth, problem free operation of bucket. Description Part No No Per bucket Nylon Bush AW_FB_NY_01 M12 washer...
- Page 22 Rotating cutting die Option (If applicable) The rotating cutting die is a wearing part and over time the blades will require either sharpening or replacing. As it is driven directly off the end of the auger (discharge end) and is fitted with a nylon bush it requires no additional maintenance.
- Page 23 Hydraulic Stone trap Option (If applicable) The Hydraulic stone trap is an optional extra designed to simplify the removal of stones that may have become mixed in the feed without the operator leaving the cab. It operates by simply reversing the direction of the auger, this automatically opens the trap and allows for the ejection of the stone.
- Page 24 Stickers Quantity per Sticker Part number Description Machine AW_MRB_WS Warning Sticker at discharge end AW_MRB_AS Agriweld Sticker AW_MRB_GB Great Britain Sticker AW_MRB_RC Root/Cereal Sticker Operator AW_MRB_OM Manual Sticker Do Not Over AW_MRB_OF Fill Bucket Sticker...
-
Page 25: Warranty
Warranty Your Agriweld Direct Drive Root Cereal Bucket is covered for a period of 12 months from the date of dispatch (which is recorded on our files) against faulty components and/or bad workmanship. Our welders are coded to ISO 9606-1 and our welding procedures are approved in accordance with ISO 15614-1 to manufacture your equipment. -
Page 26: Ce Declaration Of Conformity
YO25 3ET Product: DIRECT DRIVE Root/Cereal Bucket Product Options: Individual Serial Number: Product Description: AGRIWELD DIRECT DRIVE ROOT/CEREAL BUCKET. (Micro, Mini, 6’6” and 7’6” Models) Date of Last Load Test Report: Supplementary Information: Authorized Signatory on Behalf of Manufacturer: Dawn Foster... - Page 27 NOTES PAGE: Optional feature inserts included with this operator manual: • Hydraulic stone trap • Agitator shaft • Rotating cutting die...
