1. Introduction
Thank you for your purchase of the WN30BN probed thermometer. The following user guide provides
step by step instructions for installation, operation and troubleshooting.
The sensor is not a stand-alone device, and requires a WS-290B (or greater revision), WS-2000 or
WS-5000 weather station to view and upload the data to our cloud hosting service.
2. Features
10' water-proof probed thermometer
Long wireless range up to 330 feet (100 meters) in open areas
Transmits readings approximately once per minute.
Suspension eye for easy mounting

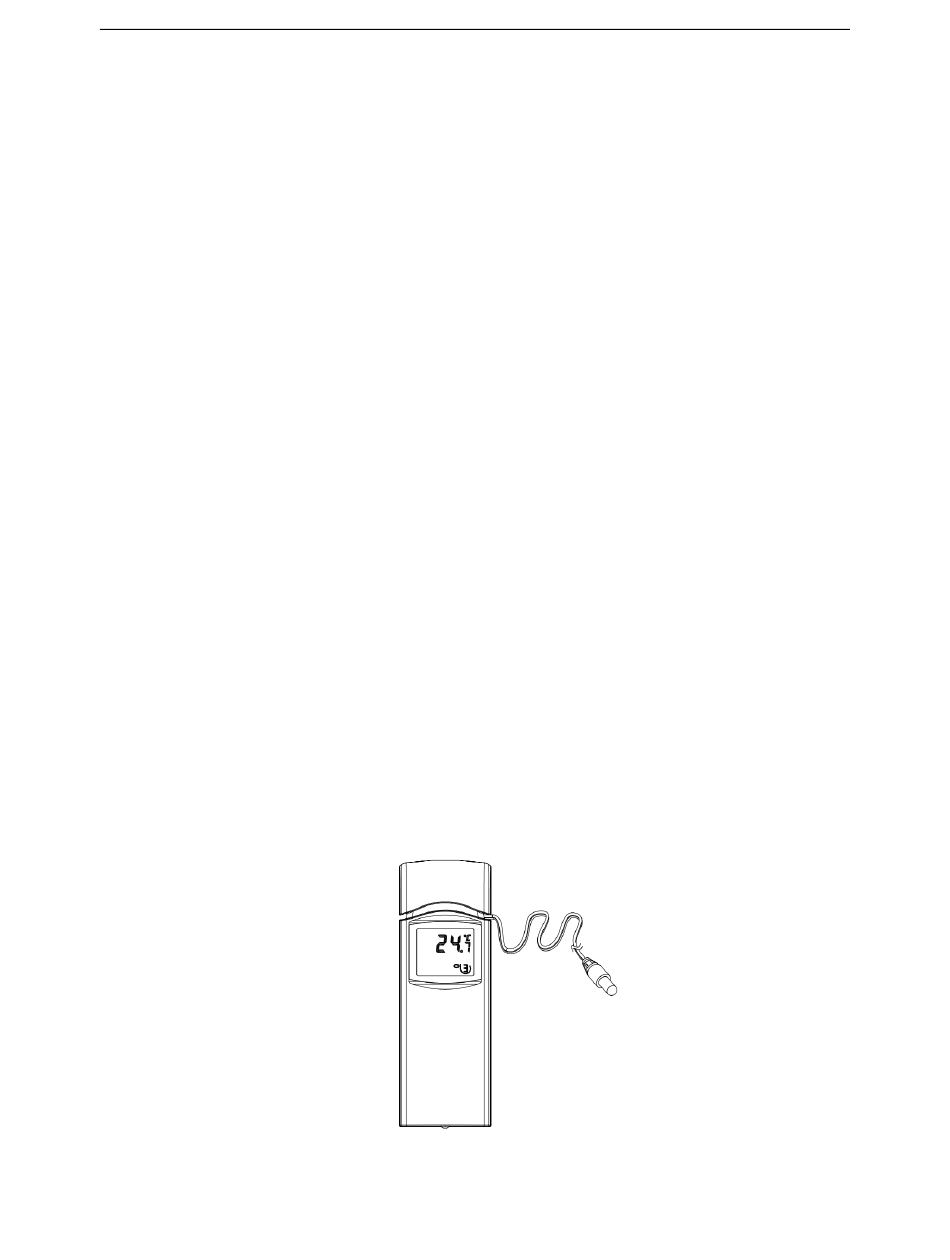

Figure 1
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fine Offset Electronics WN30BN
Summary of Contents for Fine Offset Electronics WN30BN
- Page 1 FCC Statement ..........................6 1. Introduction Thank you for your purchase of the WN30BN probed thermometer. The following user guide provides step by step instructions for installation, operation and troubleshooting. The sensor is not a stand-alone device, and requires a WS-290B (or greater revision), WS-2000 or WS-5000 weather station to view and upload the data to our cloud hosting service.
- Page 2 4. Setup Guide 4.1 Batteries and Dip Switches The WN30BN probed thermometer requires 2 x AA batteries (not included). We recommend Energizer Lithium batteries for longer life and a wider operating temperature range. 1. Remove the battery door on the back of the transmitter(s) by sliding down the battery door, as shown in Figure 2 .
- Page 3 channel number (the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in Figure 3. 4. Temperature Units of Measure: To change the transmitter display units of measure (° F vs. ° C), change Dip Switch 4, as referenced in Figure 3. Switch in down position.
- Page 4 Use a screw or nail to affix the remote sensor to the wall, as shown in Figure 5 (a) or Hang the sensor using a string or zip tie, as shown in Figure 5 (b). Figure 5 Note: Make sure the sensor is mounted vertically and not lying down on a flat surface. This will insure optimum reception.
- Page 5 Figure 6 7. Specifications 7.1 Wireless Specifications Line of sight wireless sensor array RF transmission (in open air): 330 feet, 100 feet under most conditions Update Rate: about one minute RF Frequency: 915 MHz 7.2 Measurement Specifications The following table provides the specifications for the measured parameters.
- Page 6 Reading the “User manual” is highly recommended. The manufacturer and supplier cannot accept any responsibility for any incorrect readings and any consequences that occur should an inaccurate reading take place. This product is designed for use in the home only as indication of weather conditions. This product is not to be used for medical purposes or for public safety information.
