IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Cabinet
1 pc.
C.
Side Frame
2 pcs.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
5050-20

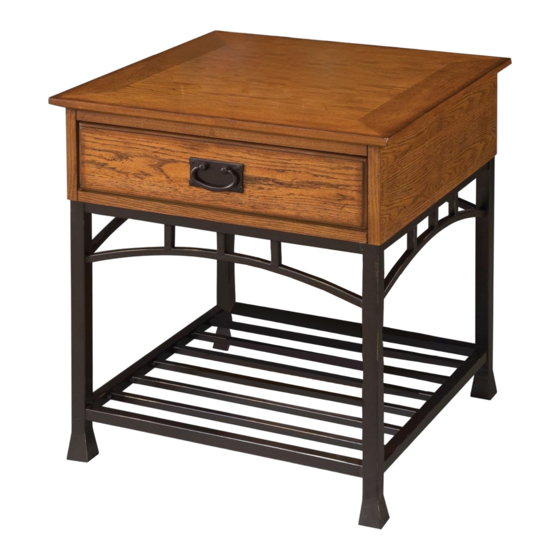

End Table
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Stretcher
2 pcs.
D.
Shelf
1 pc.
M6x12
Head Cap Bolt
8 pcs. (+1 extra)
Spring Washer
8 pcs. (+1 extra)
888-680-7460
Flat Washer
8 pcs. (+1 extra)
M4x12
Wood Screw
4 pcs.(+1 extra)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Homestyles Modern Craftsman 5050-20
Summary of Contents for Homestyles Modern Craftsman 5050-20
- Page 1 5050-20 End Table IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 STEP 3 Place Cabinet (A) upside down on a soft cloth. Attach unit from Step 1 to Cabinet (A) with Wood Screws. Wood Screw Machine Screw Handle STEP 4 Turn unit over to its upright position. Remove handle on inside of drawer and attach to outside of drawer with machine screws.
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
