• For slopes more than 20% in the work area, isolate
the slope with a stay-out zone.

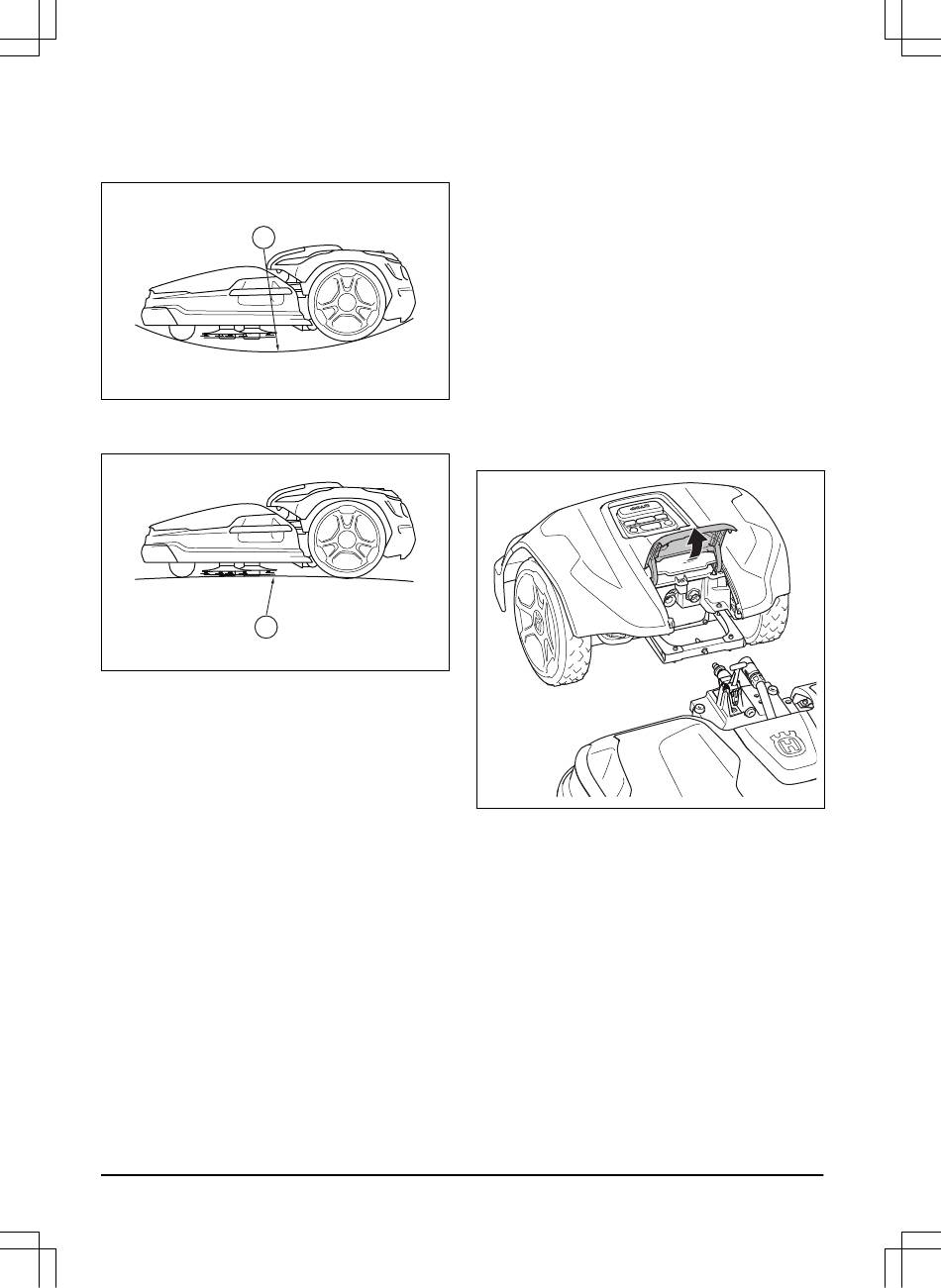

• For pits in the lawn, make sure that the minimum
radius (A) of the pit is 1.5 m / 15 ft.
A
• For hills in the lawn, make sure that the minimum
radius (B) of the hill is 15 m / 50 ft.,when the
product is set at the lowest cutting height.
B
• For slopes adjacent to a public road, put a fence
or a protective wall of minimum 15 cm / 6 in. along
the outer edge of the slope.

3.7 Installation of the product

3.7.1 To install the product
Do the general steps that follow to install the product:
1. Attach the cutting deck to the drive unit. Refer to
To attach the cutting deck on page 16 .
2. Install the charging station. Refer to
the charging station on page 17 .
3. Install the reference station. Refer to the
Operator's manual for the reference station.
®
4. Install the Automower
mobile device. Refer to
page 19 .
5. Do a pairing operation of the product and the
®
Automower Connect app. Do the basic settings in
the start up sequence in the Automower
To install the Automower
app. Refer to
app on page 19 .
16 - Installation
Installation of
Connect app on your
Automower ® Connect on
®
Connect
®
Connect
6. Make a map with work areas, stay-out zones,
transport paths and maintenance points. Refer to
Installation of the map objects on page 20 .
®
7. Use Automower Connect app to do settings for
Settings on page 23 .
the product. Refer to
3.7.2 Installation tools
• 19 mm open end socket wrench.
• Hex key, 8 mm. Included with the charging station.
• Combi tool. Included with the cutting deck.
• 10 mm socket wrench.
• Drilling machine, 6 mm drill.
• Ratchet wrench or torque wrench, 10mm.
3.7.3 To attach the cutting deck
1. Set the drive unit to OFF. Refer to
product to OFF on page 27 .
2. Put the cutting deck in front of the drive unit.
3. Open the hatch on the drive unit.
4. Remove the center top cover on the cutting deck.
5. Put the frame on the drive unit above the cutting
deck and the cable.
6. Align the shaft with the hole in the drive unit.
To set the
