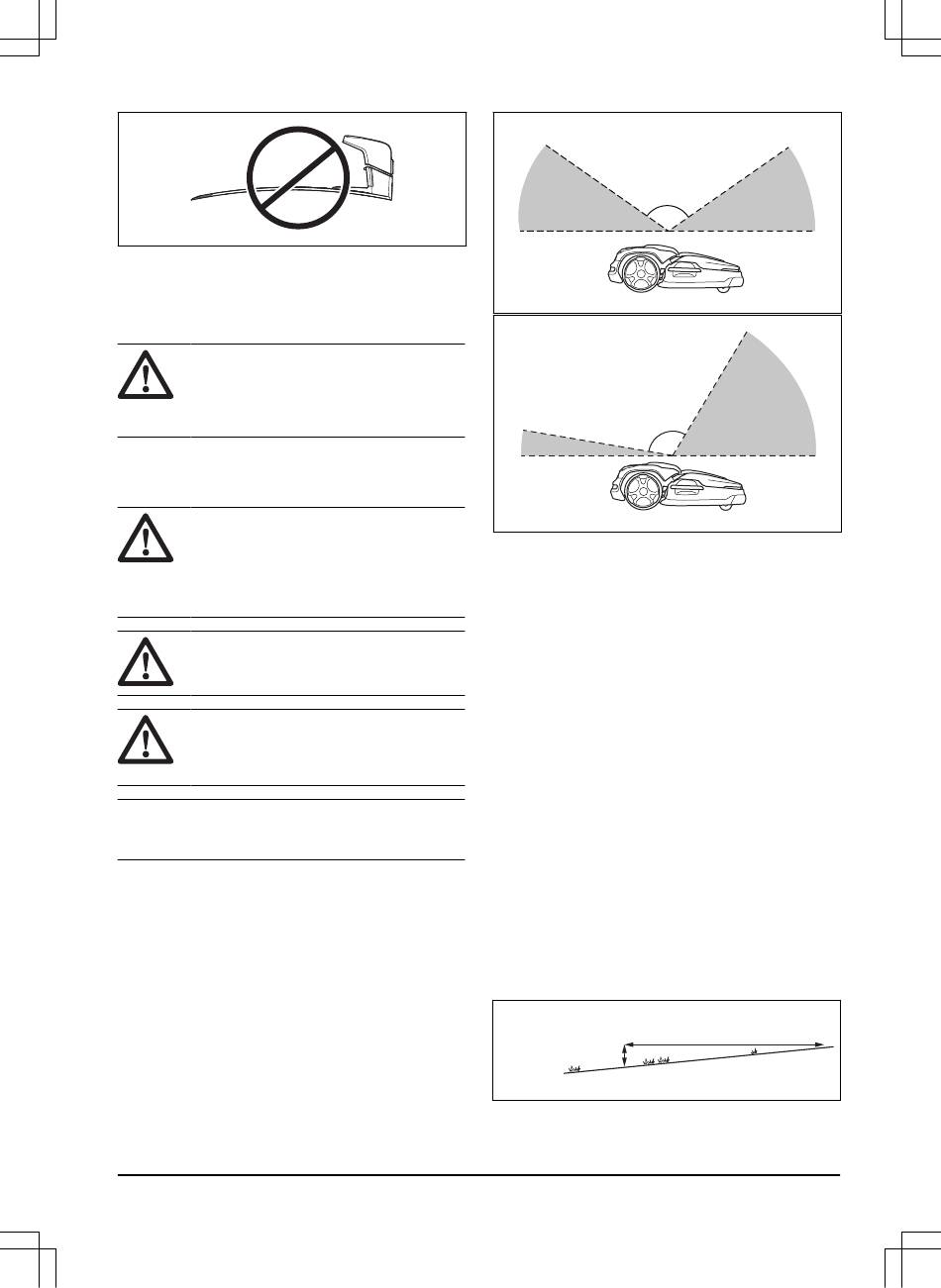

• Put the charging station in an area with good
airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
mains cable to the power outlet.
CAUTION:
Do not install the charging
station where there are metal objects
in the ground. Metal objects can cause
interference with the charging station signal.
3.6 To examine where to install the
objects on the map
CAUTION:
If the work area is adjacent
to water bodies, slopes, precipices or a
public road, the virtual boundary must have
a protective wall. The wall must be minimum
15 cm / 6 in. in height.
CAUTION:
Do not let the product
operate on gravel.
CAUTION:
For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
Note:
Make a blueprint of the work area before you
install the virtual boundaries.
• Make sure that the area where the product
operates has unimpeded sky view. This means
that 110° of the sky in all directions must be
unimpeded. The product cannot receive satellite
signals that is less than 10% elevation angle.
1691 - 002 - 14.01.2022
>110°
3 ° 5
>110°
10°
• Make sure that there are no trees near the virtual
boundaries and along the paths.
• Make sure that there are no trees with thick
vegetation in the areas where the product
operates.
• Make sure that the product can receive radio
signals from the reference station in all parts of
the work area. The maximum distance between the
reference station and the product is 500 m / 1640
ft. The maximum distance decreases if there is
objects between the reference station and product.
3.6.1 Passages
A passage is a section that has virtual boundary on
each side and that connects 2 parts of the work area.
The passage must be a minimum of 3 m / 9.8 ft. wide
to get a good cutting result. Short passages can be as
narrow as 2 m / 6.6 ft. A long narrow passage can have
a negative impact of the cutting result. A dead end must
be a minimum of 3 m / 9.8 ft. wide.
3.6.2 To install the map objects in a slope
The product can operate in 20% slopes. Do not include
too steep slopes in the work area. Too steep slopes
can be isolated as stay-out zones. The slope (%) is
calculated as height for each m. Example: 10 cm / 100
cm = 10%.
10%
10 cm/4"
3 ° 5
60°
100 cm/40"
Installation - 15
