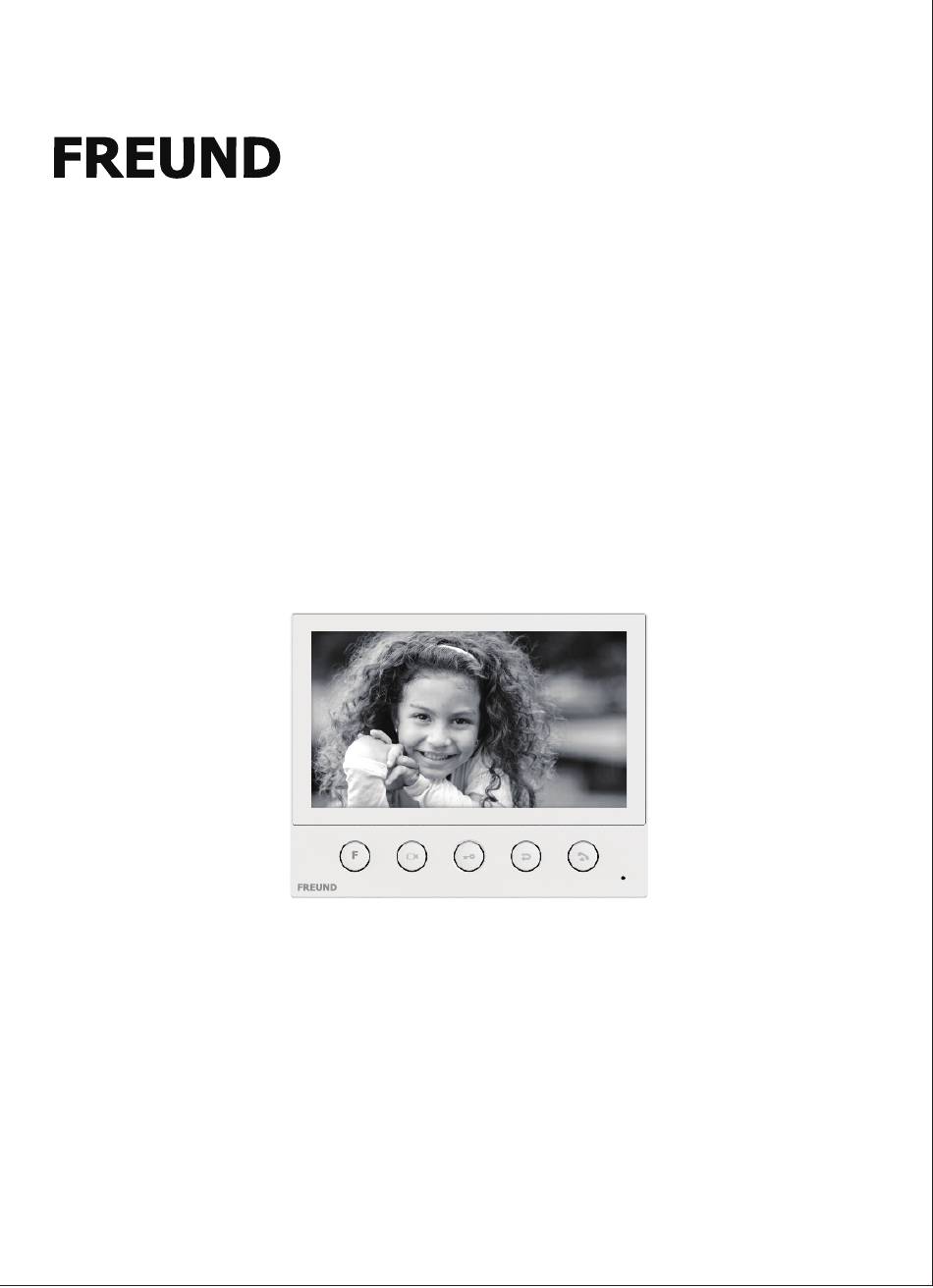

- Page 1 Indoor Station Quick Installation Guide...
- Page 2 4 pin Cable*1 2 pin Cable*1 TA4*30mm Screw*2 PM4*16mm Screw*2 Screw fixing seat*2 Physical specification Wi-Fi RS-485 Dimension Model (2.4G) 7” FE-TERM-7W3 √ √ √ 176x140x26.5mm Touch Screen Product appearance description 1) Front Panel ① ② ③ ④ ⑤ ⑥...
- Page 3 Description Description Management Center Key Return / Hang up key Monitor key Answer key Unlock Key Microphone 2) Rear Panel ⑥ ② ① ③ ④ ⑤ Description Interface DC Power interface：12V/1A input. Ethernet interface: standard RJ45 interface, 10/100M adaptive, it is recommended to use CAT5 or CAT5E network cable. Industrial power interface.
- Page 4 3) External device connection diagram Installation Diagram（two models） 102.00 90.00 28.00 60.00 58.43 4.00 52.06 79.43 4.00 106.00 Wall bracket Desktop bracket（Buy independently） Model 1. Wall-mounted Installation Step 1. Install wall bracket Without 86 embedded box in the wall A. According to the position of the cable in the wall, dig out a square hole (height*width*depth=58.5*60*50mm) that can accommodate all cables.
- Page 5 With 86 embedded box in the wall A. Make sure all cables in the embedded box . B. Fix the wall bracket on the 86 embedded box with two PM4*16mm screws. PM4*16mm Screw Step 2. Connect peripherals A. If you need to connect other input and output devices, please connect to the host through the cable.
- Page 6 FE-TERM-7W3 FE-TERM-7W3 Method 2: After booting, “Menu”--- "Status". IP Indoor Station Setting Step 1: Log in the web setting page of Indoor Station Input IP address of indoor station (e.g. http://172.18.70.55) into the address bar of PC’s web browser. The default user name and password are both admin.
- Page 7 Step 2：Add the SIP account. Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters. Select “Activate”, and then click Apply to save this setting. Step 3： Feature Setting...
- Page 8 Step 4：Unlock Setting Function Key--- Set unlock key type to "DTMF", and value is the password to open the correct access control device. Local Operation Answer/hang up calls When the door phone calls the indoor station, click the key to answer the call, and click the key to hang up the call.
