3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.

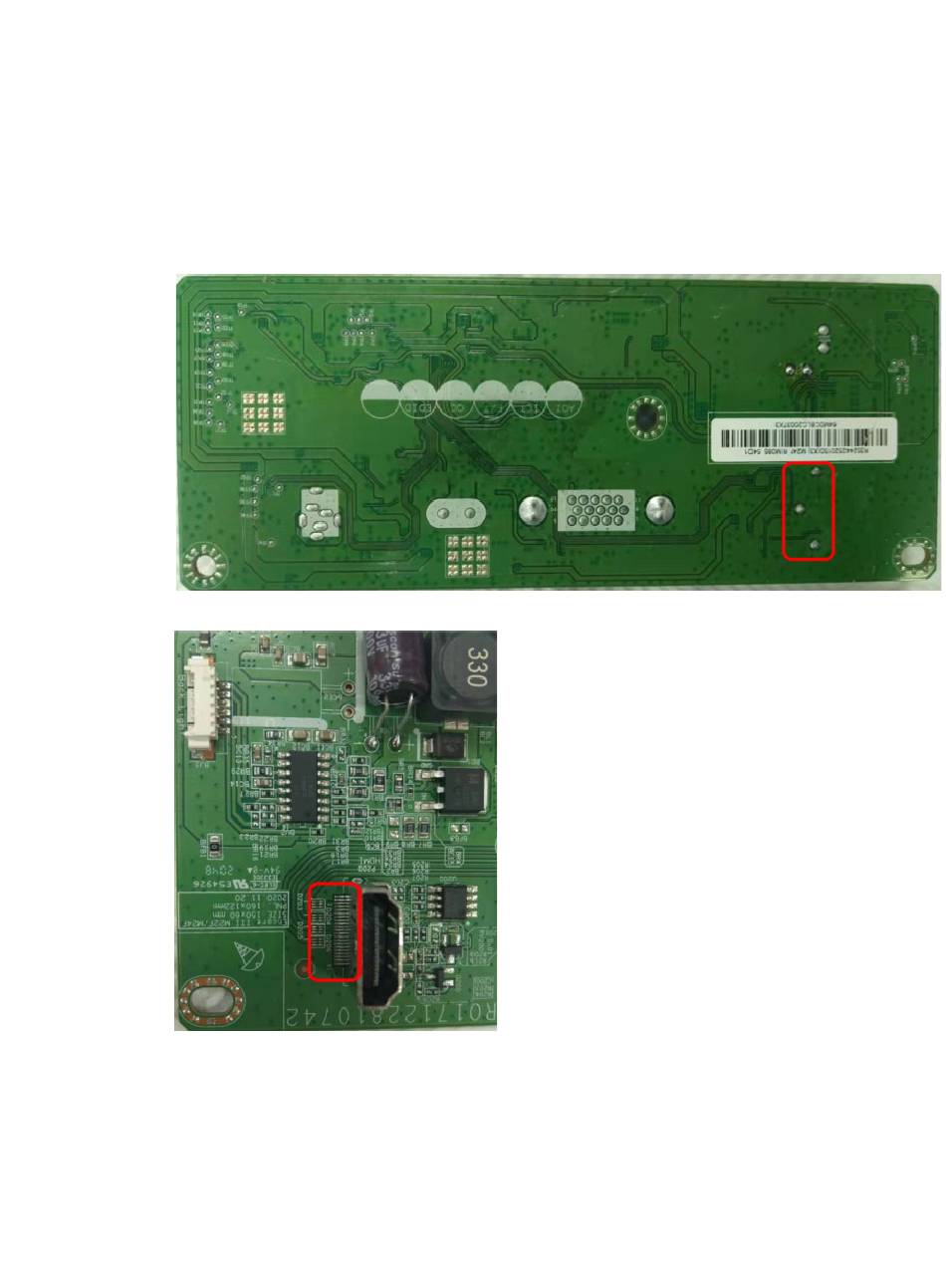

HDMI connector P200
Repair the HDMI connector:
1) Use a soldering iron and a disordering pump to remove as much solder as possible from the pin.
2) Use a soldering iron or hot air gun to melt the solder on the pins.
3) Lift the P200 connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
21
