6P1 Carrier Assembly/Installation
NOTE
Padding (double-sided foam tape or hot glue) may be desired between NuTube device
and carrier PCB to prevent microphonic vibrations.
NuTube Assembly Instructions

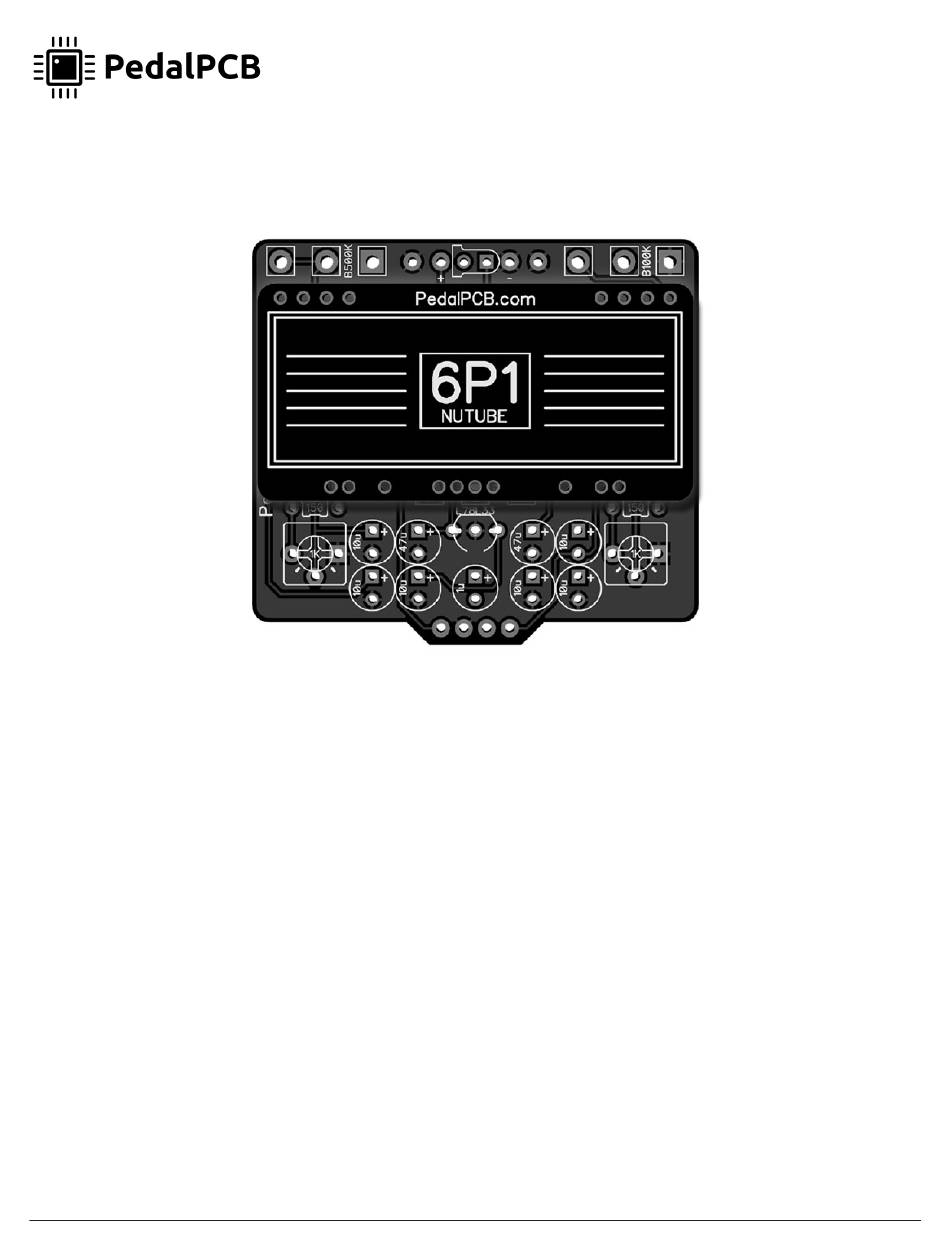

1) Install NuTube device on 6P1 carrier PCB
2) Solder 2 x 4-pin pinheaders to main NuDrive PCB
3) Attach 6P1 carrier PCB assembly to main NuDrive PCB
