Related Manuals for IRONEDGE Bench Pull
Summary of Contents for IRONEDGE Bench Pull

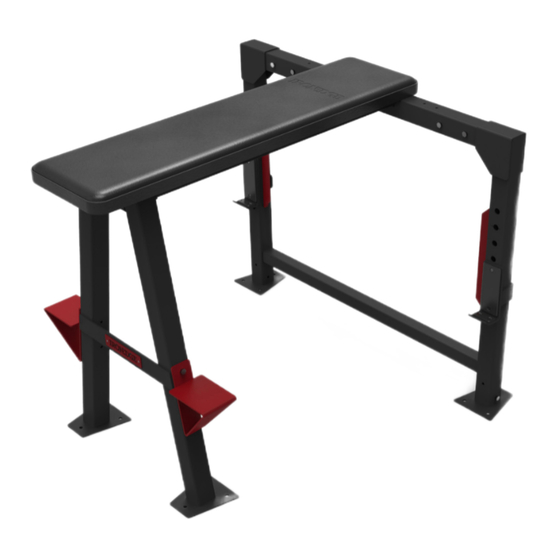

- Page 1 Bench Pull IMPORTANT! Read this before Assembling Final Product Page one SERIOUS TRAINING...
- Page 2 Bench Pull IMPORTANT! Read this before Assembling Components Page two Bench Pull Legs Bench Pull Uprights Bench Pull Step Bench Support Bench Pad Quantity x 1 Quantity x 1 Quantity x 2 Quantity x 1 Quantity x 1 Vector J Hook Pair...
- Page 3 DETAIL E SCALE 1 : 5 202.50 Part Description Bench Pad Bench Support M8 Washer M8 60mm Button Head Bolt Bench Pull Legs Bench Pull Step Ensure Bench Pad faces as indicated M8 90mm Hex Head Bolt M8 Nut SERIOUS TRAINING...
- Page 4 Page Four DETAIL B DETAIL A DETAIL B Ensure Bench Pad is Part Description orientated as indicated. Bench Pull Uprights Bench Support M8 90mm Hex Head Bolt M8 Washer M8 Nut M8 90mm Button Head Bolt Bench Pull Legs SERIOUS TRAINING...
