This publication also does not cover equipment installed by your interior designer or system manufacturer. This manual, or portions thereof, cannot be reproduced in any form whatsoever, in whole or in part, without the written consent of PREVOST CAR INC.
Page 5
SAFETY PRECAUTIONS To ensure safe and reliable operation, heed the Fuel is highly flammable and explosive. Do following safety precautions. not smoke when refueling. Keep away from open flames or sparks. Do not run the engine or HVAC system with SAFE OPERATING PRACTICES access doors left open.
Page 6
SAFETY PRECAUTIONS contact the local department of motor vehicles authority. OTHER PRECAUTIONS WARNING Prior to working on a system inside vehicle, make sure to cut electrical power and air supply. A component could be supplied with electricity even if the ignition switch is set to the OFF position and/or a component could be pressurized even if air tanks are emptied.
Page 7

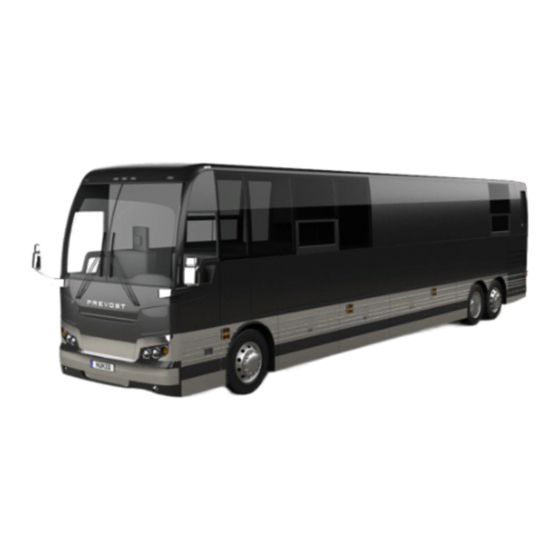

VEHICLE EXTERIOR H3-45 VIP EXTERIOR VIEW 18532 1. Engine air intake 10. Engine compartment rear door 2. Engine R.H. side access door 11. Rear-view mirrors 3. Main power compartment 12. Reclining bumper compartment 4. Baggage compartment 13. Front electrical and service compartment 5.
VEHICLE EXTERIOR lever, place hand on the upper right of the rear ENGINE COMPARTMENT door and pull rearward. ENGINE R.H. SIDE ACCESS DOOR The engine R.H. side access door provides access to the following: Engine compartment rear door release lever ; Booster block terminals ;...
Page 10
VEHICLE EXTERIOR Use this switch to turn off the light if not required when the door is open. When that door is open, a telltale light illuminates on the telltale panel. WARNING Pressurized cylinders assist engine compartment rear door opening. To avoid injury when opening, do not stand at the rear of the coach.
Page 11
VEHICLE EXTERIOR safety hook, accessible through the opening, to compartment and to the right of the HVAC open the door. compartment door. Pull the release latch then pull the HVAC compartment door open. The HVAC compartment contains relays, diodes NOTE and an I/O-B multiplex module mounted on a The locking device must be unbolted to fully panel located on the R.H.
Page 12
VEHICLE EXTERIOR HVAC COMPONENTS PANEL Each relay or resistor is identified to facilitate its FRONT ELECTRICAL & SERVICE COMPARTMENT location. 06595 NOTE It is important to keep the evaporator compartment door closed while checking the HVAC system to prevent faulty readings. FRONT ELECTRICAL AND SERVICE COMPARTMENT The front electrical and service compartment...
Page 13
VEHICLE EXTERIOR RECLINING BUMPER NOTE COMPARTMENT To prevent theft and vandalism, always lock The front bumper can be tilted downward to give doors before leaving vehicle access to the compartment. Pull the opening unattended. handle located in the front electrical and service compartment to unlock.
Page 14
VEHICLE EXTERIOR NOTE If the alarm system is armed, unlocking the entrance door from the inside by sliding its lock lever will not disarm the alarm system. The alarm will sound. NOTE For complete information concerning the Remote Keyless Entry & Anti-theft Alarm System, refer to the document included in your vehicle “publication box”.
Page 15
VEHICLE EXTERIOR KEYLESS OPERATING INSTRUCTIONS ELECTRICALLY ADJUSTED MIRROR (RAMCO) To unlock the entrance door, enter the five numbers of the code. After pressing the fifth number, the stepwell lights and entrance overhead light turn on and the door unlocks. During the night, press any Convex button to illuminate the keyboard and then enter the code.
Page 16
(to CAUTION be inspected frequently). The minimum requirement for a trailer This hitch must be used for recreational use weighing up to 20,000 lbs when coupled to a only. 20,000 lb Prevost Trailer Hitch is as per the following:...
Page 17
VEHICLE INTERIOR DRIVER'S SEAT - "DELIVERY" Fore-and-aft (3)* Pull handle up and slide seat forwards or The driver's "delivery" seat is standard and legal backwards to adjust distance between seat and only for driving the vehicle on its initial delivery. dashboard.
Page 18
VEHICLE INTERIOR WARNING A snug fit with the lap belt positioned low on the hips is necessary to ensure motorist's safety. The belt should not be worn twisted. Avoid pinching belt and/or belt hardware in seat mechanism. Do not wear belt over rigid or breakable objects, such as eyeglasses, pens or keys as these may cause injuries.
Page 19
VEHICLE INTERIOR • Three are located on the dashboard, two on the R.H. side and one on the left (refer to WARNING Controls & Instruments chapter). • Two more registers are located near the Do not adjust the steering wheel while the steering wheel column, under the dashboard.
Page 20
VEHICLE INTERIOR FIXED WINDOWS Opening/closing rocker switch button These windows are either fastened or glued to the structure and form an integral part of the body of the vehicle, helping reduce vibration and noise. Fixed windows cannot be opened. AWNING WINDOWS To open or close an electrically-operated awning window, use the rocker switch button located on the wall, next to the window.
Page 21
CONTROLS AND INSTRUMENTS KEYS UTILITY COMPARTMENT KEY Four different key models are provided with the vehicle. They are used as described below. FRONT ENTRANCE DOOR LOCK KEY UTILITY COMPARTMENT KEY 23344 This key locks or unlocks the utility compartment and the utility drawers on the dashboard. IGNITION SWITCH KEY FRONT ENTRANCE DOOR LOCK KEY 23057...
Page 22
CONTROLS AND INSTRUMENTS To lock the entrance door and the baggage NOTE compartment doors simultaneously and arm For complete information concerning the intrusion protection anti-theft Remote Keyless Entry & Anti-theft Alarm system: System, refer to the document included in Press LOCK on the transmitter once. your vehicle “publication box”.
Page 23
CONTROLS AND INSTRUMENTS The electrical circuits activated when the switch is in the ACC position plus the transmission, engine and accessories, ABS system, air dryer heater, wipers, dashboard cluster gauges and buzzers are activated when the key is in this position.
Page 24
CONTROLS AND INSTRUMENTS DRIVER’S AREA 18508...
Page 25
CONTROLS AND INSTRUMENTS LATERAL CONTROL PANEL 1. Transmission Pushbutton Shift Selector 2. Cruise Control Switches 3. Driver’s Power Window Switch 4. Outside Rear Mirror Controls 5. Level Indicator 6. Height Control Switch 7. Level Low Selector Switch 8. Parking Brakes Control Valve 9.
Page 26
CONTROLS AND INSTRUMENTS NOTE WARNING When driving with cruise control, the vehicle Do not use the cruise control when driving can still be accelerated by depressing the speed must be constantly adjusted, such as in accelerator pedal in the usual manner. Once heavy traffic or on winding, icy, snow-covered the accelerator pedal is released, the vehicle or slippery roads, or on gravel roads.
CONTROLS AND INSTRUMENTS After disengaging the cruise control, you can Turn left pointer knob counterclockwise for left return to the preset cruising speed by pressing flat-type mirror adjustments and to the right for and releasing the RESUME switch providing that left convex-type mirror adjustments, then use the joystick control to adjust the selected mirror’s your speed is above 20 mph (32 km/h).
Page 28
CONTROLS AND INSTRUMENTS chassis of the vehicle. With the ignition ON PARKING BRAKES CONTROL VALVE (8) (engine running or not), turn the selector switch Spring-loaded parking brakes are applied by located on L.H. side control panel to the area of pulling up the control valve knob and protector the vehicle requiring leveling, then press the assembly.
Page 29
CONTROLS AND INSTRUMENTS CIGARETTE LIGHTER (14) Push lighter in to activate. When ready to use, it will spring out automatically. Replace lighter in non-activated position. The cigarette lighter socket can be used to power 12-volt appliances (eg. flashlight, vacuum cleaner). The maximum power consumption allowed for appliances plugged in this socket is 130 watts.
Page 30
CONTROLS AND INSTRUMENTS DASHBOARD DASHBOARD 06560 VIP L. H. DASHBOARD PANEL MCD KEYPAD TELLTALE PANEL GAUGES VEHICLE CLEARANCE INFORMATION R. H. DASHBOARD PANEL HVAC CONTROL UNIT BRIGHTNESS CONTROL MESSAGE CENTER DISPLAY (MCD) IGNITION SWITCH ADJUSTABLE AIR REGISTERS...
Page 31
CONTROLS AND INSTRUMENTS CONTROL SWITCHES cancelled when the exterior lighting switch is fully depressed (second position). High quality laser-engraved switches are used to control many of the features of the coach. Many switches have an embedded witness LED to Fog Lights (Optional) inform the driver at a glance which features are active.
Page 32
CONTROLS AND INSTRUMENTS CAUTION CAUTION To avoid damaging the wiper blades or Do not attempt to raise or lower these shades scratching the windshield, do not operate the manually. Damage to electric motor or roller wipers when the windshield is dry. Also, mechanism could result.
Page 33
CONTROLS AND INSTRUMENTS Fast Idle Never use the engine brake on slippery roads; loss of control could result. For extended idling periods, run the engine at fast idle. Press NOTE down rocker switch Engine brake only activated when engage fast idle. This increases accelerator pedal is released and the engine engine speed...
Page 34
CONTROLS AND INSTRUMENTS Central Locking System R.H. DASHBOARD PANEL This system enables locking all baggage compartment doors by pressing the switch forward. To unlock, press switch rearward. 06266 NOTE Doors must be locked using the key first, they can then be unlocked/locked using the central locking system.
Page 35
CONTROLS AND INSTRUMENTS Front Entrance Door Vehicles equipped with central HVAC system Press this switch forward to lock the entrance door from the inside. To unlock the entrance door from the inside and disarm the intrusion protection and anti- CONTROL UNIT FOR CENTRAL HVAC SYSTEM 22276 theft system, press the switch The vehicle is slightly pressurized by the central...
Page 36
CONTROLS AND INSTRUMENTS The passenger's area temperature has Navigator fan speed switch reached 7°F (4°C) under the set point. Upon turning on of the HVAC control unit, both right and left windshield defogging/defrosting NOTE fans speed is set according to the driver section settings of the control unit.
Page 37
CONTROLS AND INSTRUMENTS To increase or decrease the tem- Auxiliary Unit Fan Speed (With Small HVAC System Only) perature set point, press on the "+" or the " - " sign. Pressing these buttons Use this switch to increase or de- will flash the displayed set point and crease the auxiliary unit fan speed the word "SET"...
Page 38
CONTROLS AND INSTRUMENTS CLUSTER CLUSTER 06563 The cluster incorporates the Message Center Engine Oil Pressure Display, the Telltale Panel, the Gauges and Vehicle Clearance Information. Indicates engine oil pressure. MESSAGE CENTER DISPLAY (MCD) The normal reading should be between 50 and 70 psi (345 - 480 kPa) at 55 mph (90 km/h).
Page 39
CONTROLS AND INSTRUMENTS Engine Coolant Temperature Voltmeter (24-Volt System) Indicates the condition of Indicates operating 24-volt electrical temperature engine system. With the engine coolant. The normal reading running, the normal reading should be between 190°F and should be between 26.5 222°F (88°C to 106°C).
Page 40
CONTROLS AND INSTRUMENTS Secondary System Air Pressure (Front) Indicates the secondary air system pressure. normal operating pressure is from 95 to 125 psi (655 to 860 kPa). 06227 A low air pressure indicator LED (bottom right corner gauge) illuminates when secondary air system pressure drops below 66 psi (455 kPa).
Page 41
CONTROLS AND INSTRUMENTS TELLTALE PANEL TELLTALE PANEL 06593 Some telltale lights described below appear on Trailer Antilock Brake System (ABS) the telltale panel only if the corresponding optional equipment is installed on the vehicle. Illuminates when the trailer ABS is Slide-Out malfunctioning.
Page 42
CONTROLS AND INSTRUMENTS The engine emergency shutdown may be Retracted Tag Axle bypassed by using the " Engine Stop Override " Illuminates when the tag axle is switch on the L.H. lower control panel. retracted. When the tag axle is retracted, an alarm will sound to NOTE warn the driver.
Page 43
CONTROLS AND INSTRUMENTS Windshield Washer or Headlights Washer Emergency/Parking Brake Fluid Low Illuminates when the emergency /parking brake is applied. The Illuminates when the windshield control valve is located on the L.H. washer or the headlights washer control panel. An audible alert will fluid level is low.
Page 44
CONTROLS AND INSTRUMENTS alarm. setting breakers to allow batteries to equalize. The breakers are located in the main power compartment. NOTE To stop the electric horn alarm when parked, cycle the ignition between the ON and OFF position twice within 3 seconds. NOTE Alternator For extinguisher's location, refer to “Safety...
Page 45
CONTROLS AND INSTRUMENTS STEERING COLUMN CONTROLS Windshield Washer Control (5) Push the external ring at the end of the lever Many of the most frequently used controls are toward the steering column to activate the lower conveniently placed on the steering column or windshield washers.
Page 46
CONTROLS AND INSTRUMENTS Operating The Retarder Using The Hand deactivate until the wheels start to turn. Lever ELECTRIC HORN The electric horn buttons are on the steering wheel spokes. Use only the electric horn in urban areas. RETARDER HAND LEVER 07043 With the retarder activated (retarder switch depressed) and the accelerator pedal released,...
Page 47
The transmission is fully automatic: Proper Immediately report any brake system problem ranges should be automatically selected accord- to the nearest Prevost or Prevost-approved ing to driving speeds to improve vehicle per- service center. formance and control. The speed ratio of the...
Page 48
CONTROLS AND INSTRUMENTS When the diagnostic display mode has been entered, the MODE button is used to view and toggle through diagnostic code information. Refer to appendix C for more details about diagnostic code display procedure and fluid level check using the pushbutton shift selector.
Page 49
CONTROLS AND INSTRUMENTS in tight spaces. This range also provides maxi- engine is stopped and the parking brake is not applied. mum driving torque and engine braking power or retarder braking effect. In the lower ranges (1, 2, 3 and 4), the transmission will not upshift WARNING above the highest gear selected unless engine overspeed is detected.
Page 51
OTHER FEATURES diagnostics engine protection DETROIT DIESEL ELECTRONIC system. CONTROL (DDEC) SYSTEM The Electronic Unit Injectors (EUI) operates on a DDEC is an advanced-technology electronic fuel principle similar to the mechanical unit injector injection and control system for Detroit Diesel system.
Page 52
OTHER FEATURES SCHEMATIC DIAGRAM OF DDEC V SYSTEM 01144 tracks the specified factors and automatically alerts the user when the average life span of the DDEC V ELECTRONIC CONTROL component has been attained. An event log is MODULE (ECM) also stored which indicates the vehicle status (e.g., off, idle, in motion) at 15 minute intervals.
Page 53
OTHER FEATURES The MCD uses a dashboard integrated liquid the previous level once a setting has been crystal display. It provides automated intensity chosen. control of the display, based on the dashboard To return to the main menu from any submenu, instrument panel lights for improved driver press Esc key a few times.
Page 54
OTHER FEATURES 1. Highlight FUEL ECONOMY 4. Press enter key ( 2. Press enter key ( The next digit of the time is highlighted. 3. Toggle between average/instantaneous fuel 5. Set the correct time using the up ( ) and consumption or leg fuel consumption using down( ) arrow keys and the enter key...
Page 55
OTHER FEATURES Average Speed 4. Press enter key ( ) to confirm the language choice. The average speed display shows the average speed has been driven since the last reset. The MCD returns to SET UP MODE menu. To reset: Metric or Standard Units 1.
Page 56
OTHER FEATURES Setting Contrast Setting Night Display 1. In SET UP MODE, highlight CONTRAST Night display, when activated, shows all displays using the arrow keys; in negative when the headlights are ON. 1. In SET-UP MODE, highlight NIGHT 2. Press the enter key ( DISPLAY using the arrow keys;...
Page 57
OTHER FEATURES 3. Using the arrow keys set the highlighted 1. Highlight GENERAL REQUEST using the digit; arrow keys; 4. Press enter key ( ) to confirm, the 2. Press the enter key ( following digit is highlighted. Set as in step After showing a fault message (if any) the MCD three;...
Page 58
OTHER FEATURES 3. Highlight the test to perform using the arrow PART NUMBER keys; This feature requests information from the available components. This information 4. Press enter key ( ) to confirm; includes component’s message The test may normally take several seconds to identifier (MID), its software ID (SW ID) and perform.
Page 59
OTHER FEATURES 1. When in SYSTEM DIAGNOSTIC, highlight 2. Highlight DATA LOG MODE using the arrow STATUS TEST using the arrow keys; keys; 2. Press enter key ( 3. Press enter key ( ) to confirm; 3. Using the arrow and enter keys, enter a MID The screen shows TOTALS highlighted.
Page 60
OTHER FEATURES 1. Use arrow keys highlight Driving time, percentage, miles, fuel used, PASSWORD INPUT; fuel consumption rate; Idle time, percentage and fuel used; 2. Press enter key ( ) to confirm; Cruise time, percentage, miles cruised, fuel 3. Use the arrow keys to set the first digit of the used, fuel consumption rate;...
Page 61
OTHER FEATURES CHECK TRANS light on the dashboard, which JACOBS ENGINE BRAKE serves as a fault indicator. The JACOBS engine brake is an optional diesel To enhance troubleshooting and to allow engine retarder which uses engine compression interrogation of the TCM for valuable service to aid in slowing and controlling the vehicle.
Page 62
OTHER FEATURES On slippery roads and more generally in Raising the tag axle transfers extra weight and emergency situations, over-braking frequently additional traction to the drive wheels providing induces wheel locking. Wheel locking greatly improved control on slippery roads. increases breaking distance on any road surface.
Page 63
OTHER FEATURES unlock entrance door baggage 3. Within five seconds of pressing button 1·2, compartment doors. enter your personal code, pressing each button within five seconds of the previous digit. The keyboard light will immediately KEYLESS OPERATING turn OFF if the code is correctly entered. INSTRUCTIONS keyless entry...
Page 64
OTHER FEATURES To deactivate the personal security alarm: SLIDE-OUT OPERATION Press the red PANIC button again on any transmitter or turn the ignition key ON. SAFETY PRECAUTIONS Before operating both slide-out units, proceed to the following verifications : NOTE Make sure that the area outside of the slide- The remote entry features will not function out is clear and that there are no persons or when the ignition is in the ON or ACC.
Page 65
OTHER FEATURES Retraction of the locking pins FRONT SLIDE-OUT OPERATION Movement of the slide-out to its full "OUT" position Preliminary condition for the front slide-out Then releasing the rocker switch will permit the operation following actions: Before extending or retracting the front slide-out, Re-inflation of the seal please make sure all the following conditions are Reloading of the tag axle...
Page 66
OTHER FEATURES position is completed, the rocker switch can be REAR SLIDE-OUT OPERATION released to allow the re-inflation of the seal. The green indicator light goes out as the rocker Preliminary condition for the rear slide-out switch is released. At any time during the slide- operation out movement, releasing the rocker switch will Before extending or retracting the rear slide-out,...
Page 67
OTHER FEATURES A+D (at the same time) set the current position Preliminary conditions for manual override as the outer limit. procedures Before using one of the slide-out manual same time) reset override procedures, make sure that the manufacturer settings problem cannot be solved by one of the Inputs following simple checks: Each LEDs determine the state of each of the...
Page 68
OTHER FEATURES LOGIC CONTROLLER FRONT S-O TRIPPED LOGIC CONTROLLER REAR S-O TRIPPED BREAKERS BREAKERS IN SLIDE-OUT CONTROL COMPARTMENT LOGIC CONTROLLER SAFETY SAFETY FRONT S-O CONTROLLER CONTROLLER LOGIC CONTROLLER REAR S-O FRONT S-O REAR S-O SAFETY CONTROLLER FRONT S-O MOTOR CONTROLLER REAR S-O SAFETY CONTROLLER...
Page 69
OTHER FEATURES 1. Turn the ignition switch to the "OFF" MANUAL OVERRIDE ONLY position. FRONT S-O REAR S-O 2. Deflate the inflatable seal by using the relieving shut-off valve located in the slide- out control compartment. Turn the handle CAUTION clockwise to deflate the seal.
OTHER FEATURES 8. When the retraction procedure is completed, transmission DRIVE range REVERSE cannot be selected to move the vehicle, verify that at least one pin is locked on each slide-out. To do so, check the lights (12) on the "PIN STATE INDICATOR" zone of the logic controller interface display.
Page 71
OTHER FEATURES 3. To unlock the pins, use the following MANUAL OVERRIDE ONLY method: FRONT S-O REAR S-O a) Identify proper pneumatic valve controlling the unlocking of the pins of the slide-out to be extend. CAUTION b) Ensure the ignition key is in the "OFF" BEFO RE EXTEN DI N G TH E SL I D E-OU T MANUALLY, ENSURE THAT ALL LOCKING PINS ARE UNLOCKED.
Page 72
OTHER FEATURES 3. To move the slide-out use a ½" hexagonal TAG AXLE VALVE socket on the back of the slide-out motor. FRONT SLIDE-OUT TAG AXLE VALVE ON LEFT LATERAL CONTROL MOTOR PANEL 06390 1. Turn the ignition switch to the "OFF" FRONT SLIDE-OUT MOTOR position, and remove the ignition key for more safety.
Page 73
OTHER FEATURES FRONT SLIDE-OUT SCREW REAR SLIDE-OUT SCREW LOCKING PIN VALVE LOCATION DIRECTION OF ROTATION FOR RETRACTING (FRONT) WARNING Actuating the locking pins on the slide-out not completely closed or with locking pins misaligned with their receptacle may result in glass breakage and cause serious injury.
Page 74
OTHER FEATURES 8. When the retraction procedure is completed, 3. To unlock the pins, use the following transmission DRIVE range method: REVERSE cannot be selected to move the a) Identify proper pneumatic valve vehicle, verify that at least one pin is locked controlling the unlocking of the pins of the on each slide-out.
Page 75
OTHER FEATURES 5. Rotate the motor with a manual ratchet or SLIDE-OUT TROUBLESHOOTING – THIRD any power drill until the slide-out comes to GENERATION its full opened position. How to recognize 3 generation controller CAUTION When there is no error conditions, press and hold the handheld control rocker switch in the IN or OUT position for 3 seconds and release it.
Page 76
OTHER FEATURES Clearing the flash code blink CAUTION Turning the ignition OFF and ON again, will stop If the dash slide-out telltale light comes ON the flash code blinking. and stays ON (no blink) after 30 minutes on Bringing back the last flash code the road, it means that one of the 2 upper pins (not structural) are not properly inserted.
Page 77
OTHER FEATURES motor itself Check/replace the motor drive module Code #26 The slide-out retracts but The slide-out position has been Use the manual procedure to refuses to pin moved manually, mixing-up the re-pin, it will reset the counter. If teeth counter this problem comes back, check the teeth sensor adjustment...
Page 79
STARTING AND STOPPING PROCEDURES STARTING THE ENGINE CAUTION In normal circumstances, the engine should be started from the driver’s area. However, a rear Do not press accelerator pedal before start panel located in the engine compartment starting. This could result in an electronic permits starting the engine from that location, control unit fault and degrade the fuel system mainly for maintenance purposes.
Page 80
STARTING AND STOPPING PROCEDURES this chapter. CAUTION STOPPING THE ENGINE Set the battery master switch to the OFF position after parking when left To stop the engine, set the starter selector unattended for an extended period of time. switch to the OFF position. CAUTION STARTING THE ENGINE FROM THE ENGINE COMPARTMENT...
Page 81
STARTING AND STOPPING PROCEDURES JUMP STARTING CAUTION In order to avoid damage to solid-state electrical components, it is important that jumper (booster) Do not jump start if a maintenance-free cables used correctly only battery has a yellow test indicator. Have the emergencies.
Page 82
STARTING AND STOPPING PROCEDURES 3. Connect the other end of the same red jumper cable to the positive (+) terminal on CAUTION the booster block; 4. Connect one end of the black jumper cable Connect only to a 110-120 VAC power to the negative (-) post on the booster power source.
Page 83
SAFETY FEATURES AND EQUIPMENT EMERGENCY ROOF ESCAPE HATCH EMERGENCY EXITS A roof ventilation hatch, designed to be opened Locate and learn how to use all possible by occupants may be installed in the roof at the emergency exits. Inform guests rear of the vehicle.
Page 84
SAFETY FEATURES AND EQUIPMENT ROOF ESCAPE HANDLE 23150 EMERGENCY AIR-FILL VALVES The private coach is equipped with two air system emergency fill valves to supplement the air system when air pressure is low and the engine cannot be operated. One valve is located inside front service...
Page 85
SAFETY FEATURES AND EQUIPMENT Spring-loaded parking brakes are applied by FIRST AID KIT pulling up the control valve knob located on the The First Aid Kit is optional. A sticker (white L.H. lateral console. cross over red background) identifies the First Parking brakes are not designed to be used as Aid Kit.
Page 86
SAFETY FEATURES AND EQUIPMENT CHANGING WHEELS In case of a flat tire, turn ON the hazard flashers and bring the vehicle to a stop on the side of the road. Apply the parking brake. Make sure the vehicle is parked safely away from traffic. Set up the triangular reflectors in accordance with applicable highway regulations.
Page 87
SAFETY FEATURES AND EQUIPMENT supply to the vehicle so brakes can be operated while towing. WARNING During a towing operation, the driver should JACKING POINTS ON TAG AXLE be alone inside the vehicle. OEH3B764 Several kinds of hydraulic jacks can be used. Only jack at the specified jacking points.
Page 88
SAFETY FEATURES AND EQUIPMENT lower panels of the private coach and prevent WARNING stones and debris from being thrown at vehicles travelling behind the private coach. Splash Do not drive only with the daytime running guards may be installed behind each dual wheel lights at night because the taillights and the of the drive axle to prevent stone projectiles from side marker lights are not turned on in that...
Page 89
SAFETY FEATURES AND EQUIPMENT o Windshield wipers: Wipers functions at 1st speed only, o Headlights: Low beams only, o Directional signals: Rear and front only, o Stoplights: 2 upper stoplights + high-mounted stoplight are functional, o HVAC: Functional with set point fixed at 70°F (22°C), evaporator and condenser fixed at speed 1, defroster fixed at speed 4.
Page 90
SAFETY FEATURES AND EQUIPMENT ALARM SYSTEM In addition to the dashboard indicator lights, the private coach is equipped with an audible alarm system to provide audible indications to the driver of the conditions given in the following table: Indicator Light Audible Alarm Condition Air pressure in primary system...
Page 91
SAFETY FEATURES AND EQUIPMENT Indicator Light Audible Alarm Condition Outside temperature close to water freezing point 06273 Transmission fluid too hot 06292...
Do not soak the stain; Use only approved cleaning products such as Prevost A.P.C., all purpose cleaner (Prevost # Rub the stain with a damp cloth; 683664). Never use stain protection products Rinse cloth after each application.
Page 94
CARE AND MAINTENANCE cleaning solution may be ordered from Prevost Copying ink - ball-point pen ink Car Inc. quoting part number 68-0356. Treat with methyl alcohol, blotting frequently to avoid spreading stain, followed by method two. FORMICA Remove stains on formica surfaces with a...
Page 95
CARE AND MAINTENANCE Install keyhole protectors to prevent water from INSECTS penetrating. Rinse vehicle with water to remove Remove insect stains as soon as possible with all loose dirt. Wash vehicle using a quality lukewarm soap and water or insect remover. brand car wash soap.
Page 96
CARE AND MAINTENANCE let the oil level go above the F mark on the TRANSMISSION OIL LEVEL dipstick. The transmission fluid level can be checked with the dipstick or with the use of the shift selector display. For more information on how to use the shift selector display to check the transmission oil level, refer to Appendix C under “Allison transmission...
Page 97
CARE AND MAINTENANCE Do not wear loose clothing and, stay away from rotating parts during procedure; personal injury could occur. AUTOMATIC TRANSMISSION OIL LEVEL DIPSTICK 07006 NOTE The Cold Check is more appropriate for CAUTION verifying the oil level after the first fill-up. In case of conflict, the Hot Check has priority over the Cold Check;...
Page 98
CARE AND MAINTENANCE 2. Park the vehicle on a level surface and shift to «N» (Neutral). Apply the parking brake and allow the engine to idle (500 - 800 rpm). 3. Remove the dipstick from the tube and wipe it clean.
Page 99
4. Insert dipstick in gearbox case, then remove again to check mark; 5. Add, necessary, MOBIL synthetic lubricant (PREVOST #180217) until it reaches "FULL" mark; NOTE Mobil SHC 630 is a new lubricant and is not compatible with SHC 634 lubricant that was previously used.
Page 100
CARE AND MAINTENANCE Drain tanks by turning cocks counterclockwise. WINDSHIELD WASHER FLUID RESERVOIR 14050 The spray jets are located on the windshield wipers and are angled to spray towards the center of the windshield. Fill valve Upper and lower windshield wipers have separate controls and separate washer pumps which are connected to the same reservoir.
Page 101
CARE AND MAINTENANCE Check that seal on handle is intact; Check that nozzle hose is in good condition and that nozzle is free of obstruction; Keep fire extinguishers clean. FUEL FILTER/WATER SEPARATOR The fuel system is equipped with primary and secondary fuel filters for additional protection of the injectors.
Page 102
CARE AND MAINTENANCE AIR FILTER RESTRICTION INDICATOR A filter restriction indicator is used to monitor the vacuum level between the air filter and engine. A red marker is displayed when the air filter is clogged. When a red marker is displayed, the air filter must be replaced.
Page 103
CARE AND MAINTENANCE panel in one of the baggage compartment A/C AND HEATING SYSTEM AIR FILTERS adjacent to the A/C and heating compartment. For maximum air conditioning and heating Open panel by unscrewing (¼ turn) the three system efficiency, air filters should be inspected screws of either panel, unsnap both fasteners on and cleaned as required in maintenance top of filter and slide out the filter for cleaning.
Page 104
CARE AND MAINTENANCE vibrate loose or fail over time, inspect frequently Wheels And Tires and tighten or replace as necessary. Check for loose wheel nuts. Both aluminum Check for loose nuts and bolts. Visually inspect alloy and steel wheel nuts should be tightened to safety of compartment door latches.
Page 105
CARE AND MAINTENANCE Emergency Exits Verify emergency exits for correct operation. WARNING Hot engine coolant is under pressure. Do not Driver's Section attempt to open the coolant filler cap when the Adjust driver's mirrors and seat. engine is hot. Allow engine to cool before adding coolant.
Page 106
CARE AND MAINTENANCE Once these commands tested, activate the test Parking And Emergency Brake Test mode to check the exterior lighting by pulling up Driving the vehicle while the parking brake is the multi-function lever 3 times within 3 seconds. applied should not be possible.
Page 107
CARE AND MAINTENANCE CLEARANCE LIGHTS IDENTIFICATION LIGHTS HIGH-MOUNTED STOPLIGHT BACK-UP LIGHT TAILLIGHT / STOPLIGHT DIRECTIONAL SIGNAL LOW BEAM TAILLIGHT / STOPLIGHT HIGH BEAM DIRECTIONAL SIGNAL CLEARANCE LIGHTS DIRECTIONAL SIGNALS CORNERING LIGHT MARKER LIGHTS EXTERIOR LIGHTING IDENTIFICATION 18596...
Page 108
CARE AND MAINTENANCE Do not drive with low fuel. If the fuel tank runs dry, the engine will not start until the air FIRST SERVICE ON NEW VEHICLE is bled from the fuel system. Refer to NOTE "Maintenance Manual" for more information; Refer to Maintenance Manual for precise Allow engine to run for at least two minutes service schedule.
Page 109
CARE AND MAINTENANCE LUBRICATION AND SERVICING POINTS ON INDEPENDENT FRONT SUSPENSION VEHICLES (TYPICAL) 24029...
Page 110
WALK-AROUND INSPECTION (BEFORE EVERY TRIP) It is a good practice to make a basic visual inspection of key areas on the vehicle before every trip and to report any problem areas to your PREVOST service center or a PREVOST-authorized authorized service center.
Page 111
CARE AND MAINTENANCE LUBRICATION AND SERVICING SCHEDULE SERVICE EVERY 6,250 MILES (10 000 KM) OR TWICE A YEAR, WHICHEVER COMES FIRST ITEM DESCRIPTION REMARKS LUBRICANT/PART Inspect and replace element if Engine Air Cleaner Filter: #530197 required Engine Air Pre-Cleaner Check discharge tube ---------- A/C Compressor Check oil level, add if necessary...
Page 112
CARE AND MAINTENANCE SERVICE EVERY 12,500 MILES (20 000 KM) OR ONCE A YEAR, WHICHEVER COMES FIRST ITEM DESCRIPTION REMARKS LUBRICANT/PART Engine oil: Engine Oil Filters Change oil and filters SAE 15W40, API CI4 Filters: #510458 Primary: #510137 Change primary and secondary Prim.
Page 113
CARE AND MAINTENANCE SERVICE EVERY 50,000 MILES (80 000 KM) OR ONCE EVERY TWO YEARS, WHICHEVER COMES FIRST ITEM DESCRIPTION REMARKS LUBRICANT/PART Allison transmission with or Change filters (if containin Castrol Filters: #571709 TranSynd fluid only, no mixture). without retarder Allison transmission with...
Page 114
CARE AND MAINTENANCE MISCELLANEOUS SERVICE ITEM DESCRIPTION REMARKS LUBRICANT/PART Drain, flush and refill every two years or 17, 15 Cooling System 200,000 miles (320 000 km) whichever Engine coolant comes first Battery Terminals Clean and coat terminals yearly Battery terminal coating Every three months: Check 2 condenser's discharge tubes Discharge Tubes...
Page 115
CARE AND MAINTENANCE PART NUMBER SPECIFICATIONS ITEM DESCRIPTION PREVOST NO Engine Oil Filters #510458 Power Steering Reservoir Fluid Filter #660987 Engine Air Cleaner Filter #530197 Refrigerant Filter Dryer Unit #950332 Engine Primary Fuel Filter #510137 Engine Primary Fuel Filter With Water Separator (Optional)
Page 117
TECHNICAL INFORMATION DIMENSIONS AND WEIGHTS CAPACITIES Overall length 45' 8” (13.9 m) (over bumpers) Cooling system 24 US gal. (91 l) Overall width 102" (2.59 m) Overall height Allison transmission 146 ¼" (3.715 m) (normal ride height) (does not include 6 US gal.
Drive axle ratio ..........4.30 manufacturer's recommendations. For non Drive axle ratio (optional) ......4.56 standard tire and wheel specifications, see Prevost tire pressure tabulation in "Coach Drive axle ratio (optional) ......4.88 Final Record" or special specification chart affixed next to the DOT certification plate.
TECHNICAL INFORMATION ALIGNMENT FRONT AXLE (INDEPENDENT FRONT SUSPENSION) Minimum value Nominal value Maximum value Load Non-converted Converted Non-converted Converted Non-converted Converted Right camber -0.150 0.35 0.55 0.200 (degrees) Left camber -0.150 0.35 0.55 0.200 (degrees) Right caster 2.55 3.05 (degrees) Left caster 2.55 3.05...
Page 121
75W90 should be used. In extreme conditions or for better performance, full synthetic gear oil should be used. FAN GEARBOX Only Mobil SHC 630 synthetic oil (Prevost #180217) is recommended for the fan gearbox. POWER STEERING RESERVOIR Use Dexron IIE or Dexron III automatic...
Page 122
< 24 volts low battery voltage. Engine Starts? Engine cranks? reading on 24 volt Contact Prevost Action dashboard gauge. Service. > 24 volts R e t r e i v e d i a g n o s t i c...
Page 123
TECHNICAL INFORMATION LIGHT BULB DATA LIGHT BULB DATA APPLICATION PREVOST TRADE OR POWER VOLTS PART NO. SAE NUMBER (Watts, Amps or Candle Power) Hi-beam 930359 65 W Low-beam 930360 65 W Low beam Xenon (Optional) 930388 35 W Docking / Cornering...
Page 124
Other applicable certification labels are affixed to the applicable components. DOT CERTIFICATION PLATE This certifies that vehicles manufactured by Prevost Car Inc. comply with all Federal Motor Vehicle Safety Standards at the time of manufacture. Information such as date of...
Page 125
TECHNICAL INFORMATION DOT CERTIFICATION PLATE VEHICLE IDENTIFICATION NUMBER (VIN) 00016 EPA ENGINE LABEL The emissions certification label affixed to the panel over the engine oil reserve tank certifies that the engine conforms to federal and any state exhaust emissions regulations. VEHICLE IDENTIFICATION NUMBER 18491 COACH FINAL RECORD...
Page 127
Additional copies of the following service literature are available on request and at low cost. Maintenance Manual Parts Manual Service Center Directory To order, call Prevost Parts toll free 1-800-463-8876 or write to: PREVOST PARTS INC. 2955-A Watt Street Sainte-Foy, (Quebec) Canada G1X 3W1 Specify the complete vehicle serial number.
Page 128
Box 8880 Ottawa, Ontario, K1G 3J2 DECLARATION OF THE MANUFACTURING DEFECTS TO PREVOST CAR INC. In addition to notify the NHTSA (or Transport Canada), please contact Prevost Car at 1-418-831-2046. Or you may write to : Prevost Car Inc. After-sales service department 850 ch.
Page 129
APPENDIX B ROADSIDE TROUBLESHOOTING GUIDE FOR MULTIPLEX VEHICLES Problem/Symptom Probable Causes Actions Vehicle does not Start Rear Start selector switch is 1. Check that the rear start selector not at the NORMAL position switch is flipped up to NORMAL start position and battery master switch is Battery master switch in the flipped up to ON and retry cranking...
Page 130
APPENDIX B Problem/Symptom Probable Causes Actions 4. Try disconnecting the CECM completely, leave it disconnected and see if the limp-home functions (start of the vehicle from the engine compartment, wipers speed 1, flashers, etc ) are functioning Many secondary functions The CECM module does not 1.
Page 131
APPENDIX B Problem/Symptom Probable Causes Actions HVAC condenser fans not Circuit breaker CB7 was 1. Check / reset circuit breaker CB7 functioning in speed 2 manually tripped and not reset Lower and upper Module A46 is not powered 1. Check the SYSTEM DIAGNOSTIC windshield washer not or is faulty menu of the message center display...
Page 132
APPENDIX B Problem/Symptom Probable Causes Actions functioning message “No Response ModA51, Active” indicates a power problem on the module. (A CAN network problem would show the same message but doesn't produce this symptom). 2. Check / reset circuit breaker CB2 3.
Page 133
APPENDIX B Problem/Symptom Probable Causes Actions 3. Check / replace fuse F67 , F68 4. Probe gray connector on module to see if it is powered. Sound system not Circuit breaker CB4 or CB11 1. Check / reset circuit breaker CB4 or functioning was manually tripped and not CB11...
Page 135
APPENDIX C DIAGNOSTIC TROUBLESHOOTING CODES (DTC) — ALLISON 4 GENERATION CONTROLS DIAGNOSTIC TROUBLESHOOTING CODES (DTC) OVERVIEW Diagnostic codes (DTC) are numerical indications relating to a malfunction in transmission operation. These codes are logged in a list in the TCM memory with the most severe or most recent code listed first. A maximum of five codes (numbered d1 to d5) may be listed in memory at one time.
Page 136
134 APPENDIX C DIAGNOSTIC CODE DISPLAY AND CLEARING PROCEDURE – ALLISON 4 GENERATION CONTROLS Diagnostic codes can be read and cleared by two methods: o Using an Allison DOC™ diagnostic tool. For specific instructions on how to use an Allison DOC™ diagnostic tool, refer to the User Guide.
Page 137
APPENDIX C NOTE All active indicators are cleared at TCM power down. Some codes will clear their active indicator when the condition causing the code is no longer detected by the TCM. The Diagnostic Display Mode can be exited by any of the following methods: o Press simultaneously the (Up) and (Down) arrow buttons at the same time on the pushbutton...
Page 138
136 APPENDIX C DIAGNOSTIC TROUBLESHOOTING CODES (DTC) LIST - ALLISON 4 GENERATION CONTROLS CHECK Inhibited Operation Description TRANS Description Light May inhibit retarder operation if not C1312 Retarder Request Sensor Failed Low using J1939 datalink May inhibit retarder operation if not C1313 Retarder Request Sensor Failed High using J1939 datalink...
Page 139
APPENDIX C CHECK Inhibited Operation Description TRANS Description Light P0733 Incorrect 3 Gear ratio DNS, Attempt 4 , then 6 P0734 Incorrect 4 Gear ratio DNS, Attempt 5 , then 3 P0735 Incorrect 5 Gear ratio DNS, Attempt 6 , then 3 , then 2 P0736 Incorrect Reverse Gear ratio...
Page 140
138 APPENDIX C CHECK Inhibited Operation Description TRANS Description Light P2686 Actuator Supply Voltage 3 (HSD3) High DNS, SOL OFF (hydraulic default) P2714 Pressure Control Solenoid 4 (PCS4) Stuck Off DNS, RPR P2715 Pressure Control Solenoid 4 (PCS4) Stuck On DNS, SOL OFF (hydraulic default) P2718 Pressure Control Solenoid 4 (PCS4) Control Circuit Open...
Page 141
APPENDIX C ALLISON TRANSMISSION OIL LEVEL CODE CAUSE OF CODE CHECK USING THE PUSHBUTTON OL…-…0X Waiting time too short SHIFT SELECTOR OL…50 Engine speed (rpm) too low OL…59 Engine speed (rpm) too high Oil level codes are obtained as follows: OL…65 Neutral must be selected 1.
Page 143
APPENDIX D DDEC V DIAGNOSTIC CODES To read the diagnostic codes, a Diagnostic Data Reader should be plugged into the receptacle located on the lower side panel of the L.H. control panel. To read diagnostic codes as blink codes, momentarily depress the STOP ENGINE OVERRIDE switch while the ignition is ON, the engine is idling or shut off.
Page 144
APPENDIX D DDEC V Code DESCRIPTION Oxygen Content Circuit Input Voltage Low Reserved for ‘‘No Codes" Aux. Shutdown #1 Active Aux. Shutdown #2 Active Intake Manifold Temperature Sensor Input Voltage High Ambient Air Temperature Sensor Input Voltage High Air Temperature Sensor Input Voltage High Intake Manifold Temperature Sensor Input Voltage Ambient Air Temperature Sensor Input Voltage Low Air Temperature Sensor Input Voltage Low...
Page 145
APPENDIX D DDEC V Code DESCRIPTION Aux. Output #17 Mechanical System Failure - Pin E-53 RSL Short to Battery (+) RSL Open Circuit AWL Short to Battery (+) AWL Open Circuit Turbo Boost Pressure Sensor Input Voltage High Turbo Boost Pressure Sensor Input Voltage Low High Range Oil Pressure Sensor Input Voltage High Oil Pressure Sensor Input Voltage High High Range Oil Pressure Sensor Input Voltage Low...
Page 146
APPENDIX D DDEC V Code DESCRIPTION ECM Battery Voltage Low Injector V (reg) Voltage Failed Low Sensor Supply Pins V-11/V-12 Low Injector V (slope) Voltage Failed Low RTC Backup Battery Voltage Low, Pin E-59 Injector I (pull-in) Voltage Failed Low Sensor Supply Voltage Low, Pin E-12/E-26 High Range Fuel Pressure High Fuel Pressure High...
Page 147
APPENDIX D DDEC V Code DESCRIPTION J1587 Data Link Fault J1922 Data Link Fault Torque Overload Injector xxx Response Time Long Aux. Output #1 Short to Battery (+) – Pin V-4 Aux. Output #1 Open Circuit - Pin V-4 Aux. Output #1 Mechanical System Not Responding —...
Page 148
APPENDIX D DDEC V Code DESCRIPTION PWM #1 Open Circuit, Pin V-53 PWM #2 Above Normal Range, Pin V-46 PWM #2 Below Normal Range, Pin V-46 PWM #2 Short to Battery (+), Pin V-46 PWM #2 Open Circuit, Pin V-46 PWM #3 Above Normal Range, Pin E-3 PWM #3 Below Normal Range, Pin E-3 PWM #3 Short to Battery (+), Pin E-3...
Page 149
APPENDIX D DDEC V Code DESCRIPTION High Range Coolant Pressure Sensor Input Voltage High High Range Coolant Pressure Sensor Input Voltage Low Air Inlet Pressure Sensor Input Voltage High Air Inlet Pressure Sensor Input Voltage Low Coolant Pressure Sensor Input Voltage High Coolant Pressure Sensor Input Voltage Low TPS Idle Validation Circuit Fault (open circuit) TPS Idle Validation Circuit Fault (short to ground)
Page 150
APPENDIX D DDEC V Code DESCRIPTION — Fire Pump Pressure Low — Exhaust Back Pressure High — Exhaust Back Pressure Low — Exhaust Back Pressure Sensor Voltage High — Exhaust Back Pressure Sensor Voltage Low — Exhaust Back Pressure at Rampdown Threshold —...
Page 151
APPENDIX D DDEC V Code DESCRIPTION Exhaust Temperature Sensor Input Voltage High — EGR Delta Pressure Sensor Circuit Failed High — EGR Temperature Circuit Failed High — EGR Temperature Network Sensor Not Responding Timing Actuator Failed High Timing Actuator Failed Low Exhaust Port Temperature #1 Sensor Voltage High Exhaust Port Temperature #2 Sensor Voltage High Exhaust Port Temperature #3 Sensor Voltage High...
Page 152
APPENDIX D DDEC V Code DESCRIPTION Exhaust Port Temperature #6 Sensor Voltage Low Exhaust Port Temperature #7 Sensor Voltage Low Exhaust Port Temperature #8 Sensor Voltage Low Exhaust Port Temperature #9 Sensor Voltage Low Exhaust Port Temperature #10 Sensor Voltage Low Exhaust Port Temperature #11 Sensor Voltage Low Exhaust Port Temperature #12 Sensor Voltage Low Exhaust Port Temperature #13 Sensor Voltage Low...
Page 153
APPENDIX D DDEC V Code DESCRIPTION Oil Level Low Crankcase Pressure Low Extended Crankcase Pressure Low Engine Overspeed Engine Overspeed Signal Pump Pressure Sensor Input Voltage High Barometric Pressure Sensor Input Voltage High Pump Pressure Sensor Input Voltage Low Barometric Pressure Sensor Input Voltage Low High Range Coolant Pressure Low Coolant Pressure Low Fuel Restriction High...
Need help?
Do you have a question about the H3-45 VIP and is the answer not in the manual?
Questions and answers
