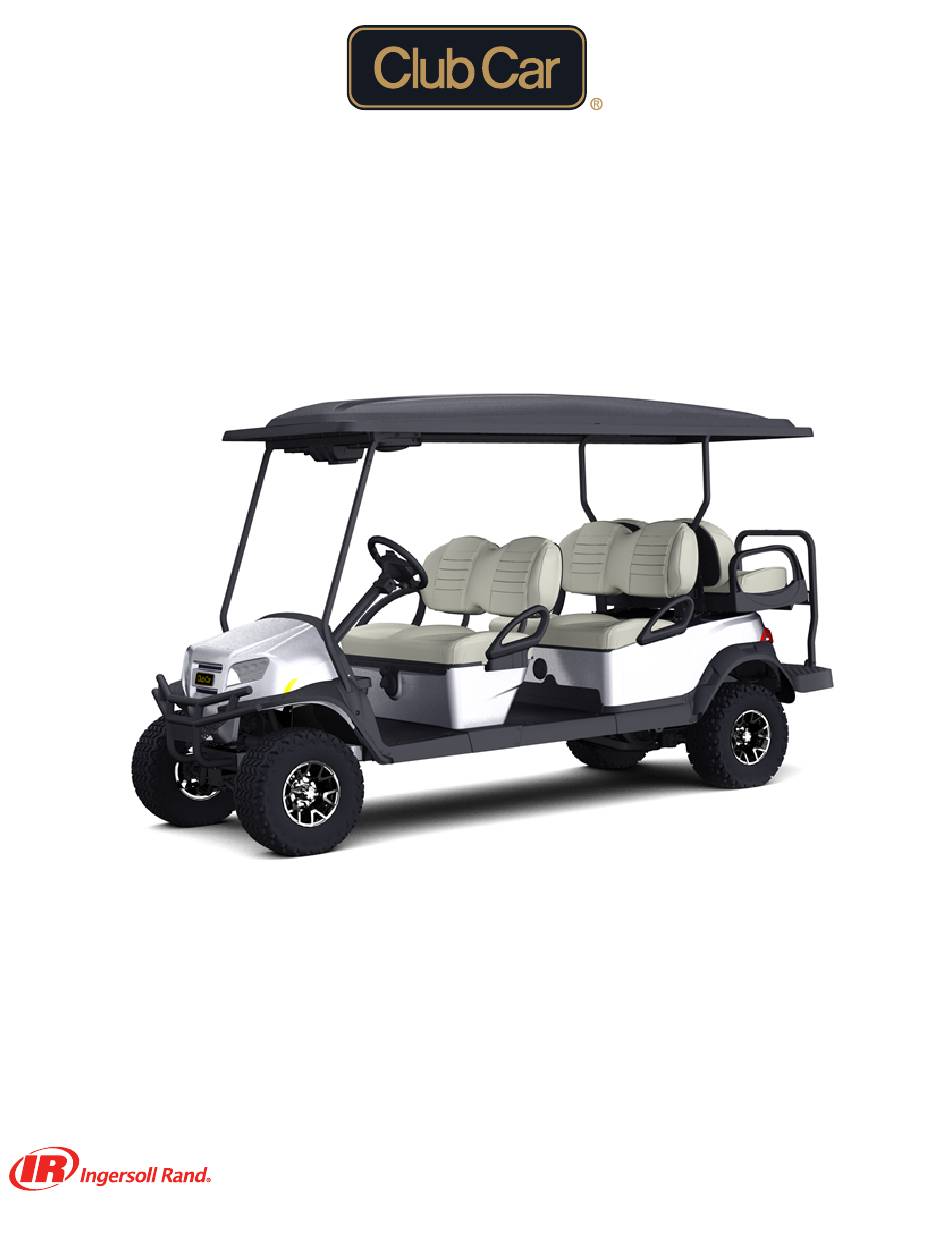

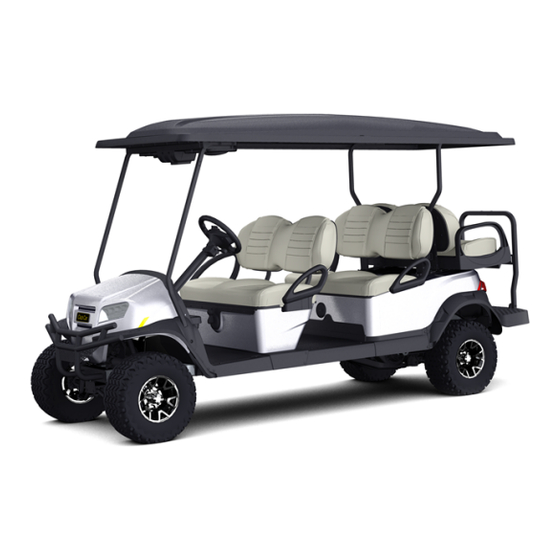

  • Page 1 ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual APPLICABLE TO VEHICLES WITH SERIAL PREFIX OF AW...
  • Page 2 Copyright © 2020 Club Car, LLC This manual effective July 1, 2020...

  • Page 3: Introduction

    Read, understand, and obey all instructions and safety precautions in this manual to prevent the risk of personal injury or property damage. Club Car recommends owners that rent or loan vehicles make sure operators read this manual before vehicle operation.
  • Page 4 APPROVED DEALERS AND DISTRIBUTORS Club Car’s customer support system offers fast and courteous service. Speak with your dealer or distributor for: • Accessories • Technical Advice • Publications • Warranty Work • Replacement Parts To find your nearest dealer or distributor: •...
  • Page 5 LIABILITY AND VEHICLE DESIGN CHANGES Club Car is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual. Club Car reserves the right to make design changes to vehicles without obligation to make these changes on units previously sold.
  • Page 6 This manual contains proprietary information that is protected by copyright. All rights are reserved. Express written consent of Club Car, LLC is necessary to photocopy, replicate, or translate this manual. The information contained in this publication is subject to change without notice.

  • Page 7: Table Of Contents

    SECTION 5 – VEHICLE SPECIFICATIONS..................31 Dimensions ............................32 Performance............................32 Tires ..............................32 Gasoline Engine ........................... 32 Battery ..............................33 Noise And Vibration ..........................33 Transaxle.............................. 33 Vehicle Weights And Load Capacities....................33 ONWARD 6-PASSENGER LIFTED GASOLINE Page v Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 8 Prepare The Vehicle To Be Towed......................70 Towing A Trailer Or Vehicle ........................70 Tow The Vehicle With Approved Tow Vehicle ..................70 Vehicle Transport Preparation ......................71 Vehicle Transport Recovery ......................... 71 ONWARD 6-PASSENGER LIFTED GASOLINE Page vi Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 9 California Evaporative Emission Control Warranty Statement ............84 Your Warranty Rights And Obligations................... 84 Manufacturer’s Warranty Coverage....................84 Owner’s Warranty Responsibilities ....................84 Defects Warranty Coverage ......................85 Evaporative Emissions Warranty Parts List ................... 86 ONWARD 6-PASSENGER LIFTED GASOLINE Page vii Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 10 (Page intentionally left blank.)

  • Page 11: Notices

    Safety Information Notices SAFETY INFORMATION ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 9 TPCC01AW00EN019 (Edition E)

  • Page 12: General Safety Information

    Any vehicle can be used in a variety of usages outside of the manufacturer’s intent. Club Car cannot anticipate and warn for every possible usage condition. Therefore, the operator must exercise good sense and judgement and must operate the vehicle in an appropriate manner for the way in which the vehicle is being used.

  • Page 13: Safety Committee

    A NOTICE identifies a hazardous situation which could result in property damage. SAFETY COMMITTEE If the vehicle is rented or part of a fleet, Club Car recommends a safety committee. The primary concern of the safety committee is safe vehicle operation. Safety committee objectives include: •...

  • Page 14: Vehicle Safety And Compliance Decals

    Use a soft moist cloth to clean the decals. Do not use solvents, gasoline, or other chemicals to clean the decals. Do not pressure wash decals. ONWARD 6-PASSENGER LIFTED GASOLINE Page 12 Operators Manual...
  • Page 15 • Engage park brake to lock wheels. • Set the FNR control to NEUTRAL (N). • Turn the key to OFF and remove key. 1. Excessive Speed Warning Decal 2. Operating Instructions Decal ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 13 TPCC01AW00EN019 (Edition E)
  • Page 16 • Disconnect negative (–) cable first. Allow to cool before servicing. • Negative (–) frame ground. 102517901 101960501 7. Frame Ground Warning Decal 8. Rotating Parts / Hot Manifold Warning Decal ONWARD 6-PASSENGER LIFTED GASOLINE Page 14 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 17 • Hold on and keep entire body inside vehicle while moving. • Two (2) persons per bench seat maximum. • Remain fully seated while moving. 105267301 105267401 15. Hold On Warning Decal 16. Falling Off Warning Decal ONWARD 6-PASSENGER LIFTED GASOLINE Page 15 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 18: Vehicle Safety Features

    BATTERY WIRES WITH DAMAGE OR CORROSION CAN BECOME TOO HOT AND CAUSE A FIRE, PROPERTY DAMAGE, OR SERIOUS PERSONAL INJURY. REPLACE BATTERY WIRES THAT HAVE DAMAGE OR CORROSION. CLEAN CORROSION FROM THE BATTERY TERMINALS. ONWARD 6-PASSENGER LIFTED GASOLINE Page 16 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 19: Battery International Safety Symbols

    (WEEE) symbol printed on them must be collected and recycled separately from other waste. Do not discard lead-acid batteries as municipal waste. Speak with your dealer or distributor on how to correctly recycle lead-acid batteries. ONWARD 6-PASSENGER LIFTED GASOLINE Page 17 Operators Manual...
  • Page 20 (Page intentionally left blank.)

  • Page 21: Section 2 - Indicators, Gauges, And Displays

    Indicators, Gauges, And Displays Battery Safety Information INDICATORS, GAUGES, AND DISPLAYS ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 19 TPCC01AW00EN019 (Edition E)

  • Page 22: Indicator, Gauge, And Display Locations

    WARNING LIGHT STAYS ON CAN CAUSE PERMANENT ENGINE DAMAGE. ADD ENGINE OIL IMMEDIATELY WHEN THE LOW OIL WARNING LIGHT STAYS ON. The low oil warning light gives a visual indication of an oil level problem. ONWARD 6-PASSENGER LIFTED GASOLINE Page 20 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 23: Malfunction Indicator Light

    STATUS CONDITION Normal Operation Normal operation when the key switch is set to ON. (THREE SECONDS) There is an engine fault code. Speak with your local dealer or distributor. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 21 TPCC01AW00EN019 (Edition E)
  • Page 24 (Page intentionally left blank.)

  • Page 25: Section 3 - Vehicle Controls

    Vehicle Controls Malfunction Indicator Light VEHICLE CONTROLS ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 23 TPCC01AW00EN019 (Edition E)

  • Page 26: Vehicle Controls Locator

    4. Key Switch 3. Park Brake 5. Headlight Switch 6. Turn Signal Lever 7. Hazard Lights Switch 8. Horn Button 9. Forward / Neutral / Reverse Control (FNR) 10. Maintenance/Operate Switch ONWARD 6-PASSENGER LIFTED GASOLINE Page 24 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 27: Accelerator Pedal

    Forward Stop the vehicle to change the FNR position. The engine will not operate when the FNR is set to Neutral (Center) Reverse ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 25 TPCC01AW00EN019 (Edition E)

  • Page 28: Hazard Light Switch

    The key switch controls the engine and electrical system. A key is used to select the key switch position. The key can only be inserted or removed when the key switch is set to OFF. Vehicles with this key switch are pedal-start vehicles. ONWARD 6-PASSENGER LIFTED GASOLINE Page 26 Operators Manual...

  • Page 29: Maintenance/Operate Switch

    UNINTENDED VEHICLE OPERATION CAN CAUSE SERIOUS PERSONAL INJURY OR DEATH. THE PARK BRAKE WILL RELEASE AUTOMATICALLY WHEN THE ACCELERATOR OR BRAKE PEDAL IS PUSHED. PREVENT ACCIDENTAL ACCELERATOR OR BRAKE PEDAL ACTUATION. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 27 TPCC01AW00EN019 (Edition E)

  • Page 30: Turn Signal Lever

    TURN SIGNAL LEVER The turn signal lever controls the operation of the POSITION FUNCTION turn signal lights. The turn signal light will flash when turned on. Down Left Center Right ONWARD 6-PASSENGER LIFTED GASOLINE Page 28 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 31: Section 4 - Vehicle Features

    Vehicle Features Turn Signal Lever VEHICLE FEATURES ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 29 TPCC01AW00EN019 (Edition E)

  • Page 32: Vehicle Features Description

    USB receptacle is not for the movement of data. The USB receptacle will only operate when a shielded USB cord is connected. When the USB receptacle is not in use, remove the shielded USB cord to prevent battery discharge. ONWARD 6-PASSENGER LIFTED GASOLINE Page 30 Operators Manual...

  • Page 33: Section 5 - Vehicle Specifications

    Vehicle Specifications USB Receptacle VEHICLE SPECIFICATIONS ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 31 TPCC01AW00EN019 (Edition E)

  • Page 34: Dimensions

    14 hp (10.4 kW) at 3600 rpm (per SAE J1940) Fuel Type Gasoline with less than 10% ethanol rating Fuel Capacity 5.6 gal (21.2 l) Engine Oil Capacity 40.5 fl-oz (1.2 l) ONWARD 6-PASSENGER LIFTED GASOLINE Page 32 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 35: Battery

    1000 lb (453.5 kg) Maximum Occupant Capacity 150 lb (68 kg) Maximum Cargo Capacity 25 lb (11.3 kg) Maximum Center Storage Tray Capacity 150 lbf (667 N) Maximum Trailer Tongue Weight ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 33 TPCC01AW00EN019 (Edition E)
  • Page 36 The maximum gross vehicle weight is the vehicle weight plus the vehicle rated Vehicle Weight capacity. Maximum Gross Vehicle The maximum gross vehicle combination weight is the maximum gross vehicle Combination weight plus the gross trailer weight. Weight ONWARD 6-PASSENGER LIFTED GASOLINE Page 34 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 37: Section 6 - Vehicle Operation

    Vehicle Operation Vehicle Weights And Load Capacities VEHICLE OPERATION ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 35 TPCC01AW00EN019 (Edition E)
  • Page 38 SERIOUS PERSONAL INJURY. OPERATE THE VEHICLE SLOWLY IN TURNS. UNINTENDED VEHICLE OPERATION CAN CAUSE SERIOUS PERSONAL INJURY OR DEATH. BEFORE LEAVING THE VEHICLE OR DURING VEHICLE MAINTENANCE, DISABLE THE VEHICLE. ONWARD 6-PASSENGER LIFTED GASOLINE Page 36 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 39: Daily Pre-Operational Safety And Performance Checks

    If the vehicle is removed from operation, speak with your dealer or distributor for maintenance and repairs. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 37 TPCC01AW00EN019 (Edition E)

  • Page 40: Daily Pre-Operational Safety Checklist

    • When the key switch is set to ON, the MIL will turn on for 3 seconds. If the Indicator Light MIL stays on, speak with your local dealer or distributor. (MIL) Vehicle Performance • Do a vehicle performance inspection. Inspection ONWARD 6-PASSENGER LIFTED GASOLINE Page 38 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 41: Vehicle Performance Inspection

    Release the accelerator pedal. Make sure: 11.A The accelerator pedal goes back to its initial position. 11.B The engine stops. Slowly push the brake pedal. Stop the vehicle. Release the brake pedal. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 39 TPCC01AW00EN019 (Edition E)

  • Page 42: Vehicle Movement

    • Forward / Neutral / Reverse control (FNR) is set to N. • The park brake is set. • The accelerator pedal is not pushed. • The vehicle is at a full stop. To start the engine: ONWARD 6-PASSENGER LIFTED GASOLINE Page 40 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 43: Turn Off Engine

    FAILURE TO DECREASE THE VEHICLE SPEED WHEN IN REVERSE WARNING CAN CAUSE PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR DEATH. DECREASE THE VEHICLE SPEED WHEN IN REVERSE AND PREVENT SUDDEN STOPS. ONWARD 6-PASSENGER LIFTED GASOLINE Page 41 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 44: Slow Or Stop The Vehicle

    OR DEATH. PREVENT STOPPING ON A HILL WHEN TOWING OR WITH A LOADED VEHICLE. IF A VEHICLE WITH A LOAD IS STOPPED ON A HILL, PREVENT SUDDEN STARTS, ROLLING BACKWARD, AND SUDDEN STOPS. ONWARD 6-PASSENGER LIFTED GASOLINE Page 42 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 45: Side Hill Slope

    • Always examine the terrain carefully before driving on a slope. Do not drive on a slope with slippery or loose surfaces. • Keep your feet on the floorboard. • Continue at a stable rate of speed. Do not accelerate quickly. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 43 TPCC01AW00EN019 (Edition E)

  • Page 46: Downhill Slope

    • Drive slowly and use caution when operating on unfamiliar terrain. Not all obstacles are immediately visible. • Do not drive over large obstacles such as large rocks and fallen trees. ONWARD 6-PASSENGER LIFTED GASOLINE Page 44 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 47: Below Obstacles

    Precautions when driving through water is unavoidable: • Decrease the vehicle speed. • Use extreme caution. • Do not drive through water that is more than 3 inches (7.62 cm) deep. ONWARD 6-PASSENGER LIFTED GASOLINE Page 45 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 48: With Cargo

    Vehicle speed should never exceed 5 mph (8 km/h) when towing loads in rough terrain, while cornering, or while climbing or going down a hill. ONWARD 6-PASSENGER LIFTED GASOLINE Page 46 Operators Manual...

  • Page 49: Section 7 - Vehicle Maintenance

    Vehicle Maintenance Driving Conditions VEHICLE MAINTENANCE ONWARD 6-PASSENGER LIFTED GASOLINE Page 47 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 50 WIRING AND WIRE HARNESS ARE CORRECTLY ROUTED AND ATTACHED. FAILURE TO CORRECTLY ROUTE AND ATTACH THE WIRING COULD RESULT IN VEHICLE MALFUNCTION, PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR DEATH. ONWARD 6-PASSENGER LIFTED GASOLINE Page 48 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 51: Disable The Vehicle

    The seats of the vehicle will last longer with proper cleaning. Use a solution of 10% liquid soap and warm water applied with a soft cloth. Use a soft bristle brush to remove embedded dirt. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual...

  • Page 52: Maintenance Schedule

    Do the Daily Vehicle Performance Inspection. Daily Examine the engine oil level. Examine the tire pressure. Monthly Examine the engine cooling air intake. Clean as necessary. Clean the vehicle. ONWARD 6-PASSENGER LIFTED GASOLINE Page 50 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 53: Maintenance Tasks

    Have a trained technician adjust the valve clearance. MAINTENANCE TASKS AIR FILTER AIR FILTER REMOVAL Before the air filter is removed: • Disable the vehicle. To remove the air filter: ONWARD 6-PASSENGER LIFTED GASOLINE Page 51 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 54: Engine Oil

    Install the air filter (3). Install the air cleaner cover (2). Engage the latch (1). ENGINE OIL ENGINE OIL VISCOSITY Select the engine oil viscosity for your environmental conditions. ONWARD 6-PASSENGER LIFTED GASOLINE Page 52 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 55 Start and operate the engine for three minutes. If the low oil warning light stays on, turn off the engine immediately. Turn off the engine. Wait two minutes. Remove and clean the dipstick. Install the dipstick. Remove the dipstick. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 53 TPCC01AW00EN019 (Edition E)
  • Page 56 AND DAMAGE THE ENGINE. DO NOT EXCEED THE RECOMMENDED ENGINE OIL CAPACITY. Before the engine oil is replaced: • Disable the vehicle. • Disconnect the battery. To replace the engine oil: Remove the dipstick (1). ONWARD 6-PASSENGER LIFTED GASOLINE Page 54 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 57 Examine the gasket on the oil drain plug for damage. Replace if necessary. Install the oil drain plug and tighten to 13 lb·ft (18 N·m). Add 40.5 fl-oz (1.2 l) of recommended engine oil. Install the dipstick. Connect the battery. ONWARD 6-PASSENGER LIFTED GASOLINE Page 55 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 58 NOTICE OUT OF THE DIPSTICK TUBE. SLOWLY ADD ENGINE OIL. Add engine oil until the oil level is between the maximum (1) and minimum (2) indicators. Install the dipstick. ONWARD 6-PASSENGER LIFTED GASOLINE Page 56 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 59: Refuel

    VOLUME (LIKE E15 AND E85) WILL CAUSE VEHICLE DAMAGE AND VOID THE WARRANTY. ONLY USE THE RECOMMENDED FUEL TYPE. Turn the key to OFF. Let the engine cool. Lift the seat bottom. ONWARD 6-PASSENGER LIFTED GASOLINE Page 57 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 60: Lift The Vehicle

    Before the vehicle is lifted: • Disable the vehicle. • Disconnect the battery. • Use a jack and jack stands rated for the vehicle. To lift the front of the vehicle: ONWARD 6-PASSENGER LIFTED GASOLINE Page 58 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 61 Before the vehicle is lifted: • Disable the vehicle. • Disconnect the battery. • Use a jack and jack stands rated for the vehicle. To lift the rear of the vehicle: ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 59 TPCC01AW00EN019 (Edition E)

  • Page 62: Lower The Vehicle

    Lower the vehicle onto the jack stands. LOWER THE VEHICLE LOWER THE FRONT OF THE VEHICLE Before the front of the vehicle is lowered: • Use a jack rated for the vehicle. ONWARD 6-PASSENGER LIFTED GASOLINE Page 60 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 63 Remove the jack stands. Lower the vehicle. LOWER THE REAR OF THE VEHICLE Before the rear of the vehicle is lowered: • Use a jack rated for the vehicle. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 61 TPCC01AW00EN019 (Edition E)

  • Page 64: Spark Plug

    Remove the jack stands. Lower the vehicle. SPARK PLUG SPARK PLUG REMOVAL Before the spark plug removal: • Disable the vehicle. • Disconnect the battery. Clean the spark plug area. ONWARD 6-PASSENGER LIFTED GASOLINE Page 62 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 65: Tire Pressure Measurement

    Adjust to meet the recommended tire pressure. Note: Go to the approved wheel and tire assemblies matrix on http://www.clubcar.com information regarding tire type, inflation pressure, and lug nut torque. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 63 TPCC01AW00EN019 (Edition E)

  • Page 66: Wheel Assembly

    Tighten the lug nuts to the recommended torque specification. Note: Go to the approved wheel and tire assemblies matrix on http://www.clubcar.com information regarding tire type, inflation pressure, and lugnut torque. Install the wheel cover. ONWARD 6-PASSENGER LIFTED GASOLINE Page 64 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 67: Section 8 - Battery Maintenance

    Battery Maintenance Maintenance Tasks 316V BATTERY MAINTENANCE ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 65 TPCC01AW00EN019 (Edition E)

  • Page 68: Battery Cleaning

    • Only use an automotive-type 12-volt battery charger rated at 10 amps or less. Disable the vehicle. Turn off all accessories. Follow the battery charger manufacturer’s instructions and cautions. ONWARD 6-PASSENGER LIFTED GASOLINE Page 66 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 69: Battery Electrical Connection

    OR SERIOUS PERSONAL INJURY. MAKE SURE THAT ALL BATTERY WIRES AND TERMINALS ARE CLEAN AND TIGHTENED CORRECTLY. Tighten the hardware to 41 lb·in (4.3 N·m). Apply battery terminal protector spray to the battery terminals. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 67 TPCC01AW00EN019 (Edition E)
  • Page 70 (Page intentionally left blank.)

  • Page 71: Section 9 - Transport And Tow

    Transport And Tow Battery Electrical Connection TRANSPORT AND TOW ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 69 TPCC01AW00EN019 (Edition E)

  • Page 72: Prepare The Vehicle To Be Towed

    Prepare the vehicle to be towed. Use a Club Car approved tow kit to tow the vehicle. Use an approved tow vehicle to tow the vehicle. Tow the vehicle under 5 mph (8 km/h).

  • Page 73: Vehicle Transport Preparation

    Make sure that the trailer is correctly configured to remove the vehicle from the trailer safely. Remove all materials used to secure the vehicle to the trailer. Examine the vehicle for loose parts. Tighten as necessary. Install the windshield. ONWARD 6-PASSENGER LIFTED GASOLINE Page 71 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 74 (Page intentionally left blank.)

  • Page 75: Section 10 - Extended Storage

    Extended Storage Vehicle Transport Recovery EXTENDED STORAGE ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 73 TPCC01AW00EN019 (Edition E)

  • Page 76: Extended Storage Preparation

    Remove all cargo and personal items. Fill the fuel tank. Add a fuel stabilizer. Refer to the fuel stabilizer manufacturer’s instructions. Disconnect the fuel vent line from the fuel tank vent nipple. ONWARD 6-PASSENGER LIFTED GASOLINE Page 74 Operators Manual TPCC01AW00EN019 (Edition E)
  • Page 77 Adjust pressure in each tire to the recommended tire pressure. Note: Go to the approved wheel and tire assemblies matrix on http://www.clubcar.com information regarding tire type, inflation pressure, and lugnut torque. Clean the vehicle. ONWARD 6-PASSENGER LIFTED GASOLINE Page 75 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 78: Return To Service From Extended Storage

    Go to the approved wheel and tire assemblies matrix on http://www.clubcar.com information regarding tire type, inflation pressure, and lugnut torque. Have a trained technician lubricate the vehicle. Do a daily pre-operation safety checklist. Do a vehicle performance inspection. ONWARD 6-PASSENGER LIFTED GASOLINE Page 76 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 79: Section 11 - Warranties

    Warranties Return To Service From Extended Storage WARRANTIES ONWARD 6-PASSENGER LIFTED GASOLINE Page 77 Operators Manual TPCC01AW00EN019 (Edition E)

  • Page 80: Limited Warranty

    Club Car will provide only the replacement parts or components. If the warranty registration form is not completed and returned to Club Car at the time of the original retail sale, the Purchaser must provide proof of date of purchase with any warranty claim.

  • Page 81: Exclusions

    EXCLUSIONS Excluded from any Club Car warranty is damage to a vehicle or component resulting from a cause other than a defect including poor maintenance, neglect, abuse, accident and collision, maintenance adjustments, unreasonable or unintended strain or use, improper installation of accessories, installation of parts or accessories that are not original equipment including Club Car approved or non- approved GPS systems, non-approved alteration, and acts of God.

  • Page 82: Voiding Of Warranty

    Purchaser. Club Car makes no other representation or warranty of any kind, and no representative, employee, distributor or dealer of Club Car has the authority to make or imply any representation, promise or agreement, which in any way varies the terms of this warranty.

  • Page 83: How To Make A Warranty Claim

    EPA regulations during its warranty period. For the components listed under Parts Covered, the service dealer authorized by Club Car will, at no cost to you, make the necessary diagnosis, repair, or replacement necessary to ensure that the engine complies with applicable EPA regulations.

  • Page 84: Distribution Center

    United States Of America WARRANTY SERVICE To obtain warranty service, take your engine to the nearest authorized Club Car service dealer. Bring your sales receipts indicating date of purchase for this engine. The service dealer authorized by Club Car will perform the necessary repairs or adjustments within a reasonable amount of time and furnish...

  • Page 85: What Is Not Covered

    Club Car recommends that you retain all receipts covering maintenance on your engine, but Club Car cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

  • Page 86: How To Make A Claim

    If other than the parts authorized by Club Car are used for maintenance replacements or for the repair of components affecting emission control, you should assure yourself that such parts are warranted by their manufacturer to be equivalent to the parts authorized by Club Car in their performance and durability.

  • Page 87: Defects Warranty Coverage

    Club Car’s application for certification with CARB. The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser or first placed into service.

  • Page 88: Evaporative Emissions Warranty Parts List

    Club Car will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
  • Page 89 Warranties California Evaporative Emission Control Warranty Statement • Valves, hosing, tubing, fittings, seals, gaskets, clamps, and fittings as they relate to the evaporative emissions control system. ONWARD 6-PASSENGER LIFTED GASOLINE Operators Manual Page 87 TPCC01AW00EN019 (Edition E)
  • Page 90 Publication Part Number TPCC01AW00EN019 Edition Code Club Car, LLC www.clubcar.com Phone 1 706 258 2225 P.O. Box 204658 1 800 ClubCar Augusta, GA 30917-4658 1 706 863 5858...
