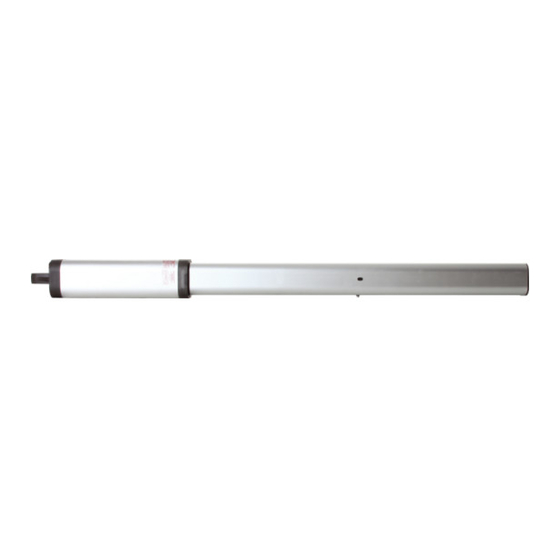

Lux BT QSG
(see also Thalia P or Libra CLX QRG)
Quick reference guides are not a replacement for the supplied instructions, they are supplementary
Read and understand the installer warnings in the main instruction document first
Always apply good, safe, state of the art engineering and electrical installation principles
Safety of the completed installation is the ultimate responsibility of the installer
This product is not suitable for DIY use and should only be installed and maintained by a trained, skilled, professional installer
Advertisement
Related Manuals for BFT Lux BT QSG
Summary of Contents for BFT Lux BT QSG
- Page 1 Lux BT QSG (see also Thalia P or Libra CLX QRG) Quick reference guides are not a replacement for the supplied instructions, they are supplementary Read and understand the installer warnings in the main instruction document first Always apply good, safe, state of the art engineering and electrical installation principles...
- Page 2 Geometry This motor will work best when A = B, any other configuration will detract from its performance and could affect reliability Lux BT – A = 135mm B = 135mm C = 1050mm Lux G BT – A = 195mm B = 195mm C = 1295mm...
- Page 3 Geometry Extreme difference between A and B should be avoided at all cost, and will only work on the lightest gates in perfect locations and with perfect set up...
- Page 4 End of Stroke Limit The rams need a degree of travel left un used in the open and closed positions If these dimensions are exceeded the encoder will not accept the limit positions and give ER SU during the set up procedure...
- Page 5 Length, Weight and Locks Leaf weight/length should not exceed; Lux BT 300Kg/2m Lux G BT 800Kg/3m 300kg/5m Where the G BT is used on gates over 3m length, it must be used in non locking form. Turn both valves fully anti clockwise after set up Open and Close locks are provide on either side of the release valve...
- Page 6 Wiring Libra CLX Thalia P 14 15 10 11 41 42 43 Use 3 core externally rated flex in accordance with BS7671 1.5mm up to 10m 2.5mm up to 20m...
- Page 7 Method Libra CLX Fit the motors and check the end of stroke limits Close the gates and lock off Wire in the motors Run “LSU ADJ” (the aim is to stop at the stop, not hit the stop) • Press and hold top button – lift off at open point – “OK” (M2 Open) •...
- Page 8 Method Thalia P Fit the motors and check the end of stroke limits Close the gates and lock off Wire in the motors Run the quick menu – Press OK once Follow the prompts to “LSU ADJ” • Press and hold top button – lift off at open point – “OK” (M1 Open) •...
- Page 9 MD Compliance Adjust close delay to give 700mm min. between M2 and M1 at closing Adjust slow speed to cut in at 700mm from closed Measure force/time at 500mm distance in line with the motor Thalia P; Increase close force & slow speed to just below 150N Libra CLX;...
