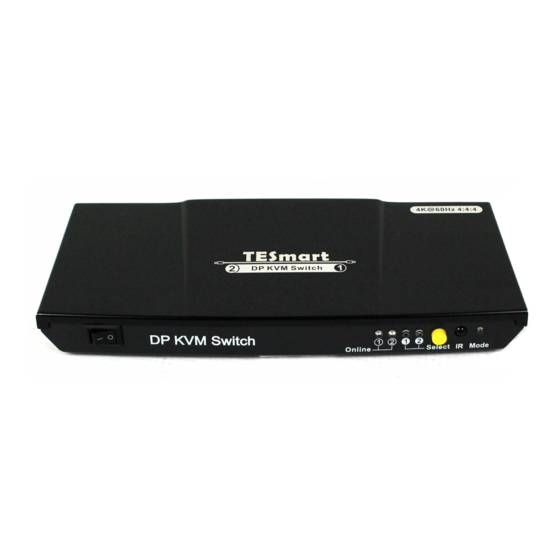

- Page 1 DP KVM Switch USER MANUAL ENJOY THE VIVID WORLD...
-
Page 3: Packing List
Features : Using only 1 set of keyboard, mouse and monitor to control 2/4 Support resolution up to 3840*2160@60Hz Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices Support auto switching to monitor computers in a specified ... - Page 4 2x1 Panel Description : Name Description DC 5V 5V DC power supply Display port output Connect to Display port display Standard USB 2.0 Connect to USB 2.0 devices, printers, port USB drives Keyboard and Connect to keyboard and mouse mouse input Display port input Connect to Diaplay port source devices USB data ports...
- Page 5 2x1 Panel Description : Name Description LEDs will be lit if the USB Type B USB connection status ports are connected to computers, and computers are on Input selection status Indicate current selected input source Input selection button Select input source IR receiver Receive IR remote signal LED on: Working under pass through...
- Page 6 2x1 Connection Diagram : PC 2 PC 1 Monitor USB Type-A to DP cable DP cable Type-B cable Barcode Printer USB driver scanner Keyboard Mouse Note: The keyboard hot key is available only when the keyboard is connected to this dedicated port.
- Page 7 4x1 Panel Description : Name Description DC 5V 5V DC power supply Display port output Connect to Display port display Standard USB 2.0 Connect to USB 2.0 devices, printers, port USB drives Keyboard and Connect to keyboard and mouse mouse input Display port input Connect to Diaplay port source devices USB data ports...
- Page 8 4x1 Panel Description : Name Description Mouse sensitivity Press the button to adjust the adjustment button and sensitivity of mouse movement indicator recongnition LED on: Working under pass through Mouse and keyboard mode pass through mode LED off: Working under emulated status mode IR receiver...
- Page 9 4x1 Connection Diagram : PC 4 PC 3 PC 2 PC 1 Monitor USB Type-A to DP cable DP cable Type-B cable Barcode USB driver Printer scanner Keyboard Mouse Note: The keyboard hot key is available only when the keyboard is connected to this dedicated port.
- Page 10 HOW TO USE : 1.Setup the connection according to the connection diagram. 2.After all the PCs are started in step 1, then you can switch to any PC by keyboard hot keys, IR keys or the key pad on the KVM front panel.
- Page 11 Enable or disable buzzer sound Enable or disable fast switching mode (Mouse gesture mode) If fast switching mode is activated, then double hit left or right bound of the screen with mouse pointer in 1 second, KVM will switch to previous or next input.
- Page 12 Note: For the best compatiblity, it is better to turn on keyboard and mouse pass through mode. In this mode, the keyboard and mouse are dynamically mapped to computer, so you are able to use special keyboard and mouse that with multimedia keys or other customized keys.
-
Page 13: Ir Remote Control
IR Remote Control: Switch to input port 1 Switch to input port 2 Switch to input port 3 Switch to input port 4 Note: 3,4 are only available for 4x1 HDMI KVM switch. Remote Control Note: 1.For the safety request by some express company, the remote control is not equipped battery by default. - Page 14 Verified keyboards and mouses: Mouse Model Keyboard Model Zklli ME TOO ZM500-5 Dareu CK535 FL.SPORTS Aigo 8362 Newmen GX1-KEPLER Aigo AJAZZ AK35I WQ-641 LDK.al Colourful X800 Acer KB21-2X Note: The above list is part of the verified keyboards and mouses list with special HID protocol.
-
Page 15: Warranty Information
Warranty Information : 31.00.0210-V004...
