11
1
2

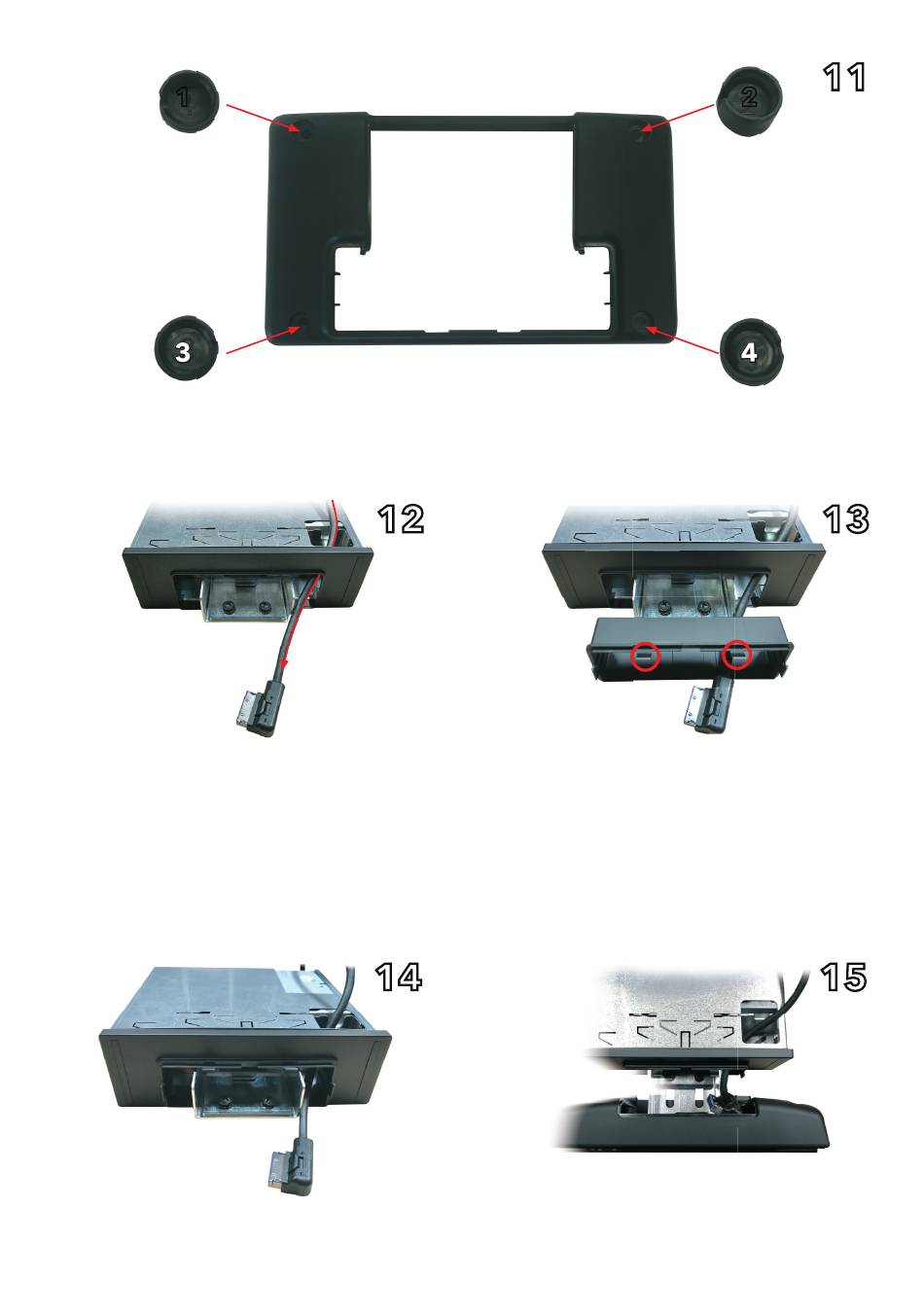

Mount screw covers, paying attention to the marked numbers and locations
12
13
Whilst sliding the silver box in the car pull the display cable
Slide the screen neck into the unit cover,
through using some tape and extension cable CD-RGB150E
pay attention to the positioning of the tabs
(not included)
14
15
Completely inserted screen neck
Slide the screen support into the unit support
Installation manual CA-HM-UNI-EVO.007 | Version 1.0
