User manual
SEL-10800F
facebook.com/denver.eu
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
September/2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver SEL-10800F
Summary of Contents for Denver SEL-10800F

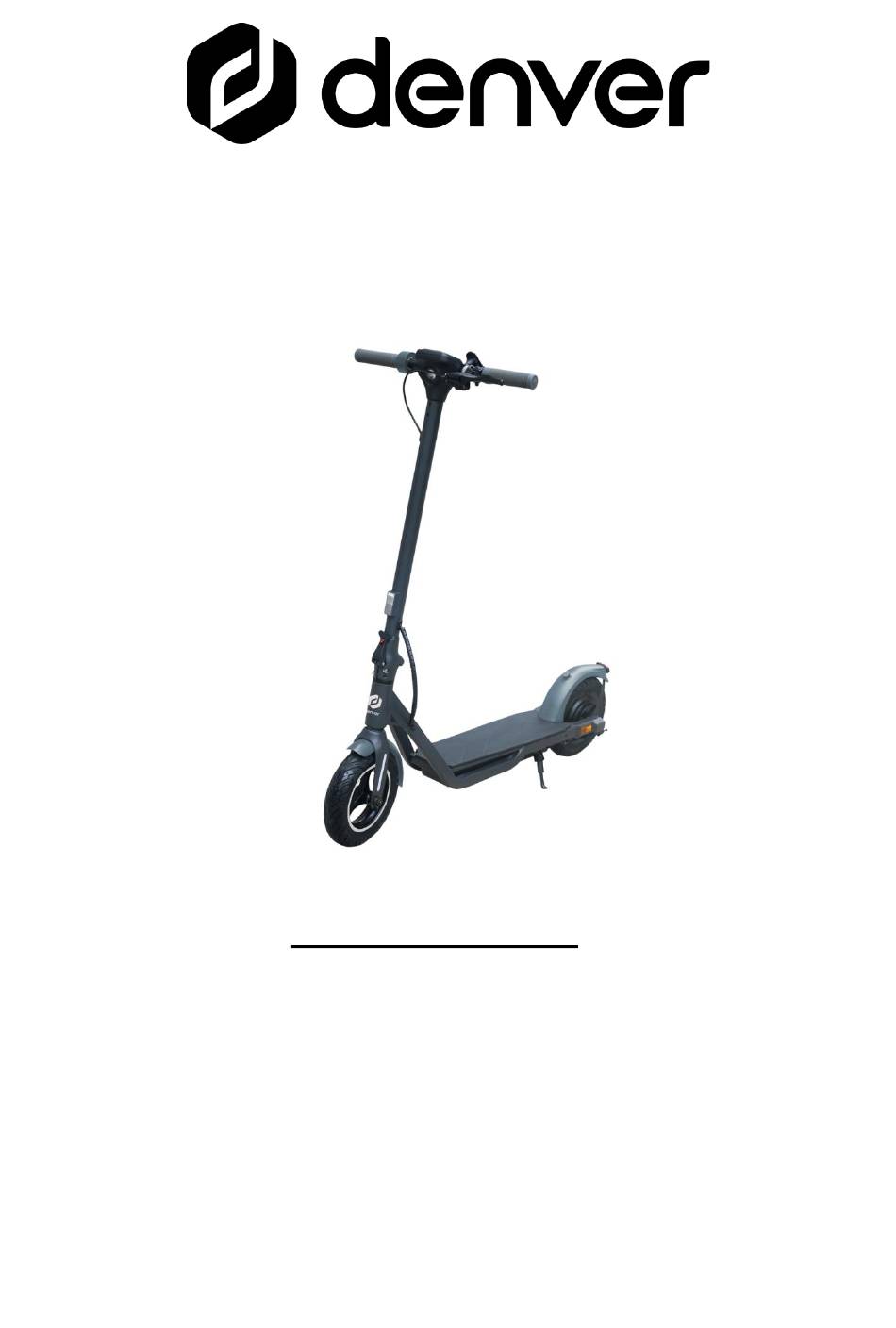

- Page 1 User manual SEL-10800F facebook.com/denver.eu Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents Product and Accessories ........................2 Unfolding and folding the scooter ......................4 Assembling the device ..........................5 Charging the scooter ..........................6 Intended Use ............................7 Safety Instruction ............................ 7 Maintenance ............................8 Operational control ........................... 10 Electric scooter riding ........................... -
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. - Page 4 Display Bell Handlebar Accelerator Front LED light Manual and Electric brake in one solution. Screw for handlebar attachment x 4 Charger Allen key x 1...
-
Page 5: Unfolding And Folding The Scooter
2 Unfolding and folding the scooter Unfolding the scooter 1) Place the electric scooter on its wheels like below. Unlock the hook on the handlebar. 2) Pull up the handle in a gentle way. Raise the handle slowly. Close the lock lever located on the lower part of the handlebar support tube. 3) The electric scooter is unfolded as soon as you hear the rod clicks into place. -
Page 6: Assembling The Device
3 Assembling the device Before using the scooter it is necessary to install the handlebar on the frame main vehicle. 1). Insert the handlebar into the vehicle frame. 2). After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well;... -
Page 7: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 8: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 120 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 9: Maintenance
Avoid stepping on the rear fender. This may cause the fender to loosen or damage the fender. As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the additional resistance. The rear tire can also get loose if the brake is in constant braking position. Avoid constant braking. - Page 10 If riding the electric scooter in cold or very hot areas, the battery time can be lower than when riding in temperatures from 15‐25° Celsius. This is not a failure on the batteries, but normal behavior. Please notice: Even a fully charged battery will run out of power if the electric scooter is not used for a period.
-
Page 11: Operational Control
WARNING Please make sure to check that the steering system is correctly adjusted and that all connection ● components are firmly secured and not broken before riding, refer to handle assembly and safety instruction. Please read operation guide and warnings of correct techniques for use and braking ●... -
Page 12: Electric Scooter Riding
8.2 Button and speed transfer Only power buttons in the display, press “Power” button with 2~3 s, the scooter power on! Press one time to turn on /off the front LED light. Press “power” could be achieved speed with 3 gear, ECO: 6KM/H, D: 15KM/H, S: 25KM/H You have to manually move the Electric scooter with your foot before the accelerator button works. -
Page 13: List Of Parameters
100‐240 Rated output voltage (V) 54.6 Power adapter Rated current (A) Charging Time(h) Electric scooter Model: SEL-10800F Input: 100-240V~, 50/60Hz, 2.0 A Output: 54.6V Max Speed: 25 km/h Weight: 16.6kg Year Of manufacture: 2021 Max Vehicle Payload: 120kg Battery: 48V/7.5Ah Power Consumption: ≤... -
Page 14: Electric Scooter Safe Parking
11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. - Page 15 WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between 0 °C and +45 °C.
- Page 16 The Electric scooter can accommodate only one person. ● Do not start or stop abruptly. ● Avoid riding on steep slopes. ● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it. ●...
- Page 17 The device is generally partially charged as shipped from the factory. Keep the device partially ● charged until it is used. Allow the Electric scooter to cool down for at least 1 hour before it can be put in the package. ●...
- Page 18 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 19 If you experience that you cannot turn on your E-scooter, and it doesn’t seem to charge (the charger lights up green instantly), please do not try to solve the problem by disassembling the machine by yourself and contact our after-sales directly. Please enter: www.denver.eu to obtain the electronic version of the manual.
- Page 20 (20-50% charged). Not fully charged. • When shipped from the factory, the product has often been partially charged. Keep the product in a partially charged state, until it is going to be used. DENVER A/S Omega 5A, Soeften, 8382 Hinnerup, Denmark www.denver.eu...
- Page 21 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 29th Sep, 2021 DENVER A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu VAT.NO: DK18831678...
