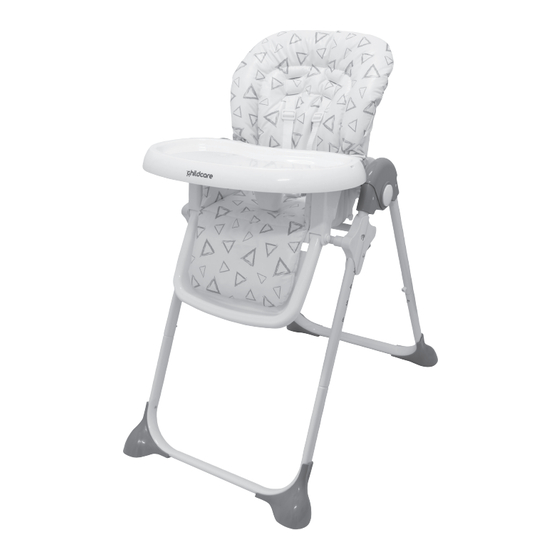

- Page 1 Orb DL High Chair “Geo Triangl e ” Model # 044287-351 IMPORTANT: RETAIN FOR FUTURE REFERENCE, READ CAREFULLY...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Read all instructions before assembly and use of the high chair. Keep instructions for future use. WARNING FOLLOW THE MANUFACTURER’S INSTRUCTIONS. DO NOT LEAVE CHILDREN UNATTENDED. THE HARNESS MUST ALWAYS BE USED AND CORRECTLY FITTED - MOST INJURIES FROM HIGH CHAIRS ARE CAUSED BY FALLS. - Page 3 CONGRATULATIONS Congratulations on your purchase of the Orb DL High Chair “Geo Triangle”. This product has been designed and developed with safety, comfort and functionality in mind. Please take the time to read this manual carefully before using this product and keep it in a safe place for future reference.
- Page 4 Seat (pre-assembled (pre-assembled) with tubes) Left Leg Assembly Front Foot (pre-assembled (with roller wheels) with tubes) Serving tray Rear Foot Fixing plastic bolt Footrest with cap There are no accessories recommended for use with this Childcare Orb DL High Chair.
- Page 5 ASSEMBLY / OPERATING INSTRUCTIONS To assemble High Chair... To open the leg assembly, press and hold the button (a) while sliding the leg outwards. Release button to lock. With the numbers facing forward, insert the leg into the top of the seat adjusting brackets. Repeat for other leg.
- Page 6 ASSEMBLY / OPERATING INSTRUCTIONS To fit Serving Tray... Position the tray at the front of the arms, pull both levers (b) found on the underside of the tray, whilst sliding the tray along with the slot (c) to the position required. The tray has three positions as indicated on the arm rests, release the levers to lock in position.
- Page 7 ASSEMBLY / OPERATING INSTRUCTIONS To use Harness continued... To remove harness remove metal rings from harness end, flatten the butterfly ends and pass through the slots in the seat (e). To refit the straps flatten the butterfly ends, pass the ends through the slots in the seat (e), then open the butterfly ends (d) and refit metal rings.
- Page 8 ASSEMBLY / OPERATING INSTRUCTIONS To adjust Seat Height and Recline... To adjust the height of the seat push in both of the height adjusting locks (a) and simultaneously raise or lower the seat, releasing both of the locks at the required height. NOTE! Do not adjust the height of the seat whilst the child is seated in the chair.
-
Page 9: Maintenance
HOW TO CARE FOR YOUR CHILDCARE HIGH CHAIR Cleaning This product has been designed and developed with safety, comfort and functionality in mind. Please take the time to read this manual carefully before using this product and keep it in a safe place for future reference. - Page 10 Distributed in Australia by CNP Brands Distributed in New Zealand by Wainhouse 20 Calarco Drive, Distribution Derrimut, VIC, 3030 2-6 Argyle St, Morningside, Customer Service 1300 667 137 PO Box 41-014, St Lukes, Auckland, New Zealand W: www.cnpbrands.com.au Customer Service: 0800 567 5000 E: info@cnpbrands.com.au F: www.facebook.com/CNPBrands E: helpline@wainhousedist.co.nz...
