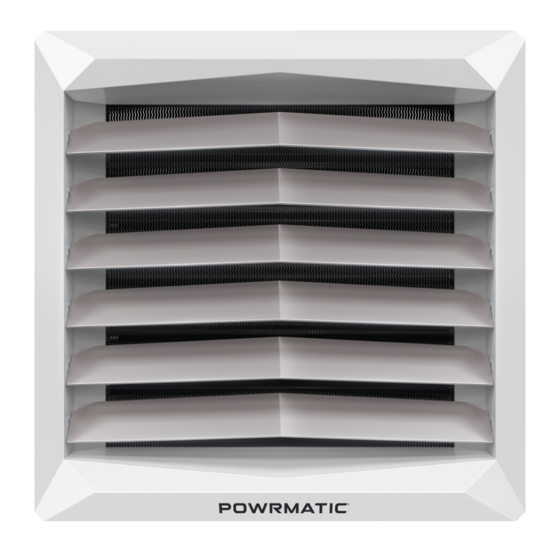

- Page 1 Doc Ref: M112 Issue 1.0 Apr 2021 ® User, Installation & Servicing Manual Issue 1.0 Apr 2021 w w w . p o w r m a t i c . c o . u k...
- Page 2 1. The appliance type and serial number. 2. The original commissioning documentation. As much detail as possible on the fault. 3. Your supplier, or installer, will then contact Powrmatic to make a guarantee claim on your behalf. Conditions of Guarantee 1.
- Page 3 Contents Users, Installation and Servicing Instructions CONTENTS Title Section Contents Page 1. INTRODUCTION Precautions, requirements, recommendations Transport Initial steps taken before installation 2. DESIGN, USE, PRINCIPLE OF OPERATION Intended use Principle of operation Construction of the device Overall dimensions 3. TECHNICAL DATA 4.
- Page 4 It is allowed to use Powrmatic WX air heaters in rooms with high humidity (without condensation) i.e. car washes, provided that the unit is not exposed to direct impact of the water strIt is allowed to use Powrmatic WX air heaters in rooms with high humidity (without condensation) i.e.
- Page 5 EN: HEAT EXCHANGER: maximum parameters of a heating medium for a heat exchanger are: 130°C, 1,6MPa. Aluminium and copper construction using copper tubes, coil pipe and aluminium lamellas. Connecting ferrules (male thread ¾”) are on the back panel of the unit. Our series of types includes a single-row heat exchanger in the Powrmatic WX-2-EC – 15.6-22.0 kW and two-row heat exchanger in the Powrmatic WX-1-EC –...
- Page 6 – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Powrmatic WX-1-EC Parameters T [°C] 90/70 [°C] 80/60 [°C] 70/50 [°C] 50/30 [°C]...
- Page 7 – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Powrmatic WX-3-EC Parameters T [°C] 90/70 [°C] 80/60 [°C] 70/50 [°C] 50/30 [°C]...
- Page 8 1430 1400 Motor IP EC NOTE Data concerning Powrmatic WX working parameters for a heating agent with a different temperature can be provided upon request page no. 8 of 20 WX Aquamatic Unit Heater Doc ref: M112 issue 1.0 Apr 2021...
- Page 9 Powrmatic WX-1-EC fan speed air flow m³/h 2100 1650 1100 noise level for Powrmatic WX AC* dB(A) noise level for Powrmatic WX EC* dB(A) AC motor electric power** EC motor electric power** electricity consumption** * reference conditions: room volume 1500m³, measurement taken at a distance of 5m.
- Page 10 Assembly 4. ASSEMBLY NOTE Installation location should be suitably selected with special consideration of potential loads and vibrations. Prior to any installation or maintenance works, disconnect the device from the power supply and secure it against accidental power-up. Use filters in the hydraulic system. Before you connect the hydraulic lines (especially supply lines) to the device, you should clean/rinse the installation by draining two litres out of it. NOTE It is necessary to maintain a minimum distance of 0.4m from the wall or the ceiling;...
- Page 11 4.2 INSTALLATION IN HORIZONTAL POSITION Powrmatic WX units can be also installed in a horizontal position. To suspend the unit, special holders (1) have to be used. In order to install the holders, remove the screw (2) fixing the fan grid, install holder (1) and screw the screw (2) in.
- Page 12 Assembly 4.3 INSTALLATION INSTRUCTIONS AND MOUNTING DISTANCES Installation of the heating medium supply system While installing the piping for the heating medium, secure the exchanger connection against twisting 1. The piping should not overload the heater connections. It is possible to connect the piping with flexible connections (adjustable angle of the airflow). WX-1-EC, WX-2-EC, WX-3-EC, WX-4-EC WX-1-EC WX-2-EC, WX-3-EC, WX-4-EC...
- Page 13 Adjusting the air guides Powrmatic WX air guides are mounted on the pivot 1, which provides smoothly change of air direction 4. In order to change position of air blade should turn it in both hands (grasping the edges of the enclosure) to turn the blade at the same time on both pins The use of the referred version of the heating unit in objects with high humidity requires the placement of a connection terminal in a protective box ensuring IP54 protection level.
- Page 14 Automatic Devices 5. AUTOMATICS 5.1 ELEMENTS OF AUTOMATICS Electric connections may only be made by well-trained electricians, and according to: Occupational health and safety regulations Assembly instructions Technical documentation for each of the automatic elements NOTE Before starting the assembly process and connecting the system, familiarize yourself with the original documentation attached to the automatic devices. MODEL SCHEMAT TECHNICAL DATA...
- Page 15 Wiring Diagrams Connection of Powrmatic WX-1-EC WX-2-EC, WX-3-EC & WX-4-EC with EC motor to the WX-HMI EC controller ~230V L N PE 1-supply: 230V - 50Hz* GND A+ B- +10V PE L N L N C H Ao GND TS TS...
- Page 16 Technical Directive 9. TECHNICAL INFORMATION TO THE REGULATION (EU) NO.327/2011 IMPLEMENTING DIRECTIVE 2009/125/EC Powrmatic WX-4EC Model: Powrmatic WX-2-EC/WX-3-EC Powrmatic WX-1-EC 27.7% 30.6% 32.3% Static VSD-No 2016 VTS Plant Sp. z o.o., KRS 0000144190, Polska 1-2-2702-0005 1-2-2701-0291 1-2-2701-0292 0,105kW, 1500m³/h, 70Pa 0,27kW, 4250m³/h, 70Pa...
- Page 17 Technical Directive Powrmatic WX-4EC Model: Powrmatic WX-2-EC/WX-3-EC Powrmatic WX-1-EC 28.5% 27.5% Static VSD-No 2016 VTS Plant Sp. z o.o., KRS 0000144190, Polska 1-2-2701-0304 1-2-2701-0289 1-2-2701-0290 0,41kW, 2826m³/h, 145Pa 0,48kW, 4239m³/h, 124Pa 0,68kW, 6006m³/h, 128Pa 1376RPM 1370RPM 1372RPM Disassembly of the machine must be carried out and/or supervised by qualified personnel with appropriate expert knowledge.
- Page 18 Servicing 10. SERVICING 10.1 PROCEDURES IN CASE OF DEFECTS WX-1-EC/WX-2-EC/WX3-EC/WX4-EC Problem Check points Description ● assembly of the exchanger connections with two wrenches (adjustment), which safeguards against internal twisting of the collectors, ● Check if the leakage may be associated with mechanical damage to the exchanger, ●...
- Page 19 Servicing Complaint Form The company submitting the notification: The company that installed the equipment: Date of notification: WX Aquamatic Unit Heater Doc ref: M312 issue 1.0 Apr 2021 Type of device: Factory number*: Date of purchase: Date of installation: Place of installation: Detailed description of defect: Contact person: Name and surname:...
- Page 20 Energy Association Powrmatic pursues a policy of continues improvement in both design and performance of its products and therefore reserves the right to change, amend or Powrmatic pursues a policy of continues improvement in both design and performance of its products and therefore reserves the right to change, amend or vary specifications without notice.
