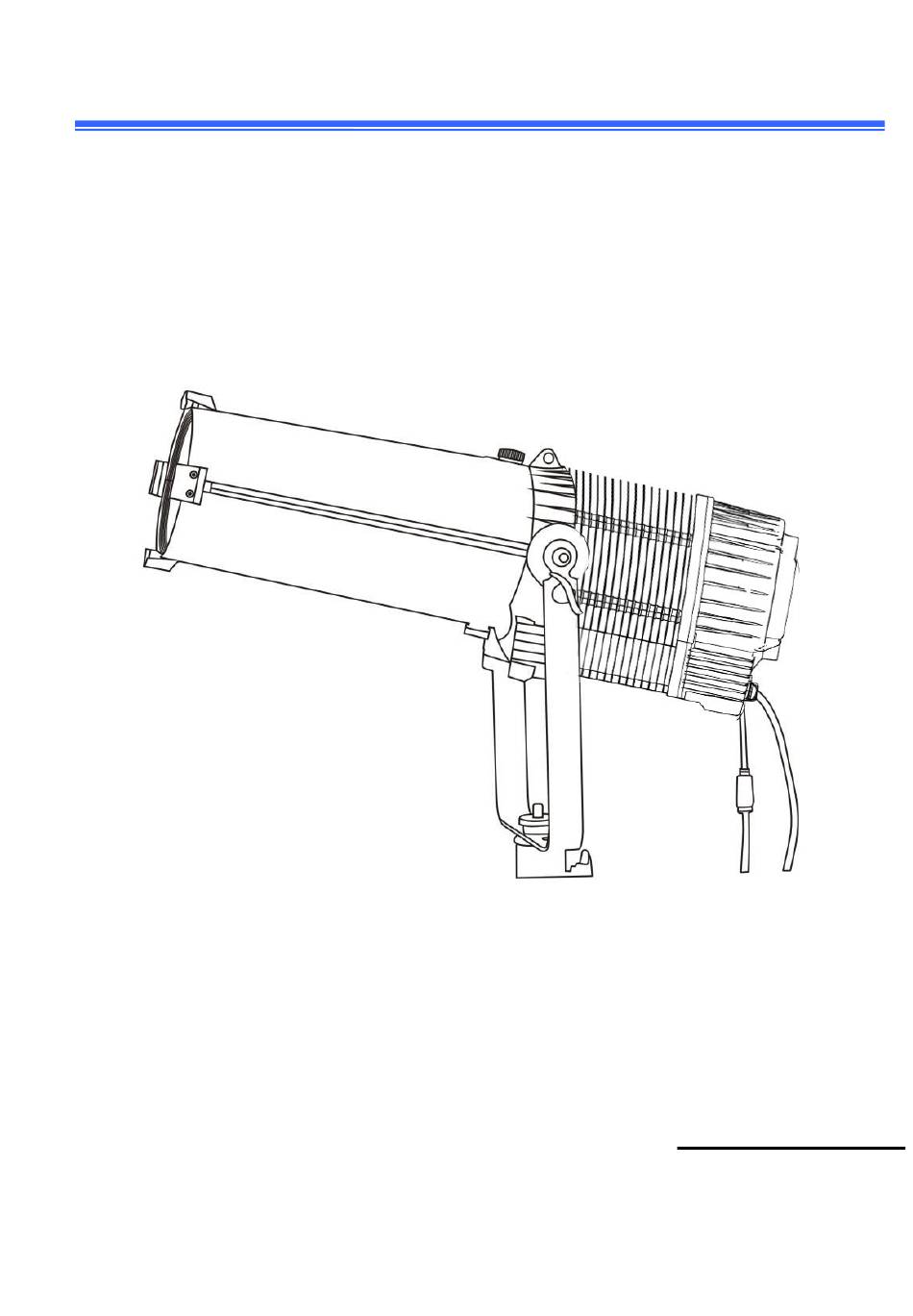

- Page 1 LED Ellipsoidal Light BY-P14 300W RGBAL 5IN1 LED IP65 Ellipsoidal Light (With Auto zoom/Auto cutting) User manual Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Technical Specifications ............3-4 2. Description ................4-5 3. Unpacking .................5-6 4. Main Menu..................7 5. Vice Menu .................8-9 6. DMX Channels ...............10-12 7. Size.....................13 8. Fixture Cleaning ................14 9. Warning ..................14 Statement This New IP rated LED fixture - an ellipsoidal comes with IP65 waterproof housing, warm white or cool white with high CRI make it an ideal LED replacement for aging incandescent light. -
Page 3: Technical Specifications
1. Technical Specifications Light Source: LED POWER: 300W LED Color: RGBAL 5in1 Color Rendering Index(CRI): Ra≥90 LED Life Time: over 50,000 hours Power supply: Voltage: AC100-240V Max.power: 300W Optics: Beam Angle: 15°-30° Zoom Function: Auto zoom Focus: Auto Shutter controlled by DMX (auto cutting to any shapes) Iris: optional Gobo holder: optional Features:... -
Page 4: Description
resistance Control: Control Protocol: RDM / DMX Control System: DMX, Auto run and Master/Slave DMX Channels:5/24CH (Two kinds of channel modes optional) Working Environment : Working Temperature: -30~40℃ Cooling system: Fan-less no noise IP Grade: IP65 Package : Production size: 76.76*29.73*27.37CM Net Weight: 16.5kgs Gross Weight: 20kgs Packing size: 86*37*35cm(1pc/carton) -
Page 5: Unpacking
·RDM (Remote Device Management) for added flexibility ·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera ·Selectable dimming curve: Standard mode, Incandescent mode, quick mode and linear mode ·Fanless(no any noise) operation for use in studio and theatre applications 3. -
Page 7: Main Menu
4.Main Menu Operation Status Mode Display Description DMX Mode Axxx “A”stand for standard channel mode, “xxx”stand for ID Master-slave address, Auto identify controller signals or host signals Dxxx “D”stand for basic channel mode, “xxx”stand for ID address, Auto identify controller signals or master signals Manual M-MC “M”stand for Master mode，“MC”stand for “Mixed Colort”... -
Page 8: Vice Menu
“M”stand for Master mode，“QC” stand for “Quick Color” Selection M-QC Color 5.Vice Menu DMX Settings Menu Operation Option Description DMX Start Press key of “OK” enter to edit 1~512 Address mode, press “UP” and ”down” to edit the DMX address Press key of “OK”... - Page 9 With“OK” （Slave mode， with signal） ， “NONE” （Slave mode， no signal） 、 Status “Master”（Master） Settings Menu Operation Option Description Touch Screen Touch screen Calibration adjust White Point Edit Color temperature correction Reset Calibratioin Reset correction Dimmer Change 500Hz Frequency dimmer frequency ..
-
Page 10: Dmx Channels
6. DMX Channels Standard channel mode(24CH) Channel Data Function Remark 0~255 Dimmer 0~255 Color 1 0~255 Color 2 0~255 Color 3 0~255 Color 4 0~255 Color 5 No function 10~19 color temperature 1 ..color temperature n Each data color temperature No function built-in color 1... - Page 11 0~255 M1, M2 position control 0~63 M1, M2 Control straight up and down by channel 11 64~127 Angle adjustment(big data, angle) 128~19 M1, M2 back to original position 192~25 M1,M2 Reverse angle adjustment,(big data, big angle) 0~255 M3,M4 position control M3,M4 position control(refer to channel 12)
- Page 12 Basic channel mode(5CH) Channel Data Function 0~255 Color 1 0~255 Color 2 0~255 Color 3 0~255 Color 4 0~255 Color 5...
-
Page 13: Size
7.Size Size of the fixture: 767.6(D)*297.3(W)*273.7(H)mm... -
Page 14: Fixture Cleaning
8. Fixture Cleaning Before disconnecting the lighter or starting maintenance work, ensure that the power supply of the light is turned off to maintain the maximum brightness output of the light, and it can also prolong its service life. It is recommended to use high-quality professional glass cleaner and to clean it with cloth.
